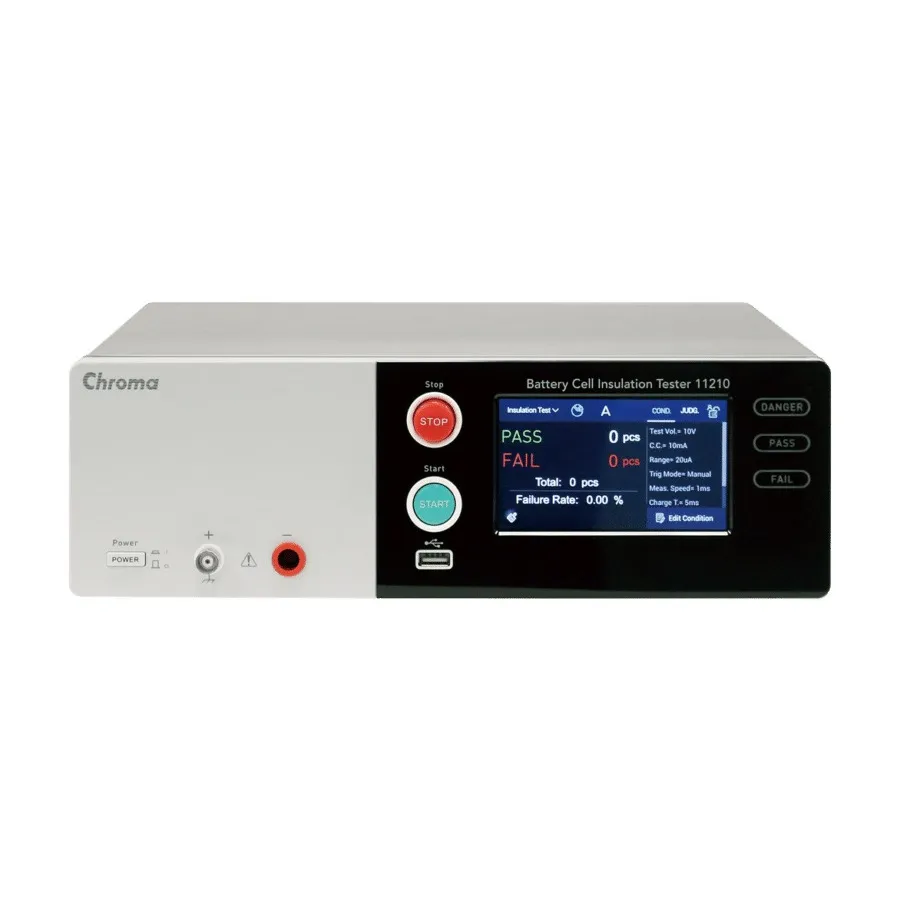

Chroma 11210 Battery Cell Insulation Tester
Request a quote
Chroma 11210 is a battery cell insulation tester with 1 kV test voltage, 50 mA charge current, and integrated partial discharge detection for quality assurance.
Product details
| Model | 11210 |
| Manufacturer | Chroma |
| Category | Electrical Testers |
| Availability | Made to order |
Description
Overview
The Chroma 11210 Battery Cell Insulation Tester is a sophisticated instrument for measuring leakage current and insulation resistance of battery jelly-rolls, dry cells, and various insulation materials. It features unique partial discharge (PD) detection capabilities to identify potential internal defects before electrolyte filling, preventing field failures and ensuring product quality on the production line.
Key Features
- Test voltage: up to 1 kV DC
- Charge current: 50 mA maximum
- Leakage current measurement range: 10 pA to 20 mA
- High-speed testing: 20 ms per measurement
- 480 × 272 pixel full-color touch display
- Built-in reliable contact check
- Automatic test sequence: charge-dwell-measure-discharge
- Standard interfaces: Handler, USB, RS-232, Ethernet
- Partial discharge and flashover detection
Applications
- Battery cell insulation testing during manufacturing
- Leakage current measurement for battery quality assurance
- Capacitor testing and validation
- Pre-electrolyte filling defect detection
- Production line high-speed screening
Specifications
