PCE Instruments PCE-MFM 2400 Magnetometer with Transverse Hall Sensor
Request a quote
PCE Instruments PCE-MFM 2400 is a magnetometer with transverse Hall sensor, measuring range up to 2,400 mT, 1% accuracy, and automatic shutdown for testing magnetic fields.
Product details
| Model | PCE-MFM 2400 |
| Manufacturer | PCE Instruments |
| Category | Electrical Testers |
| Availability | Made to order |
Description
Overview

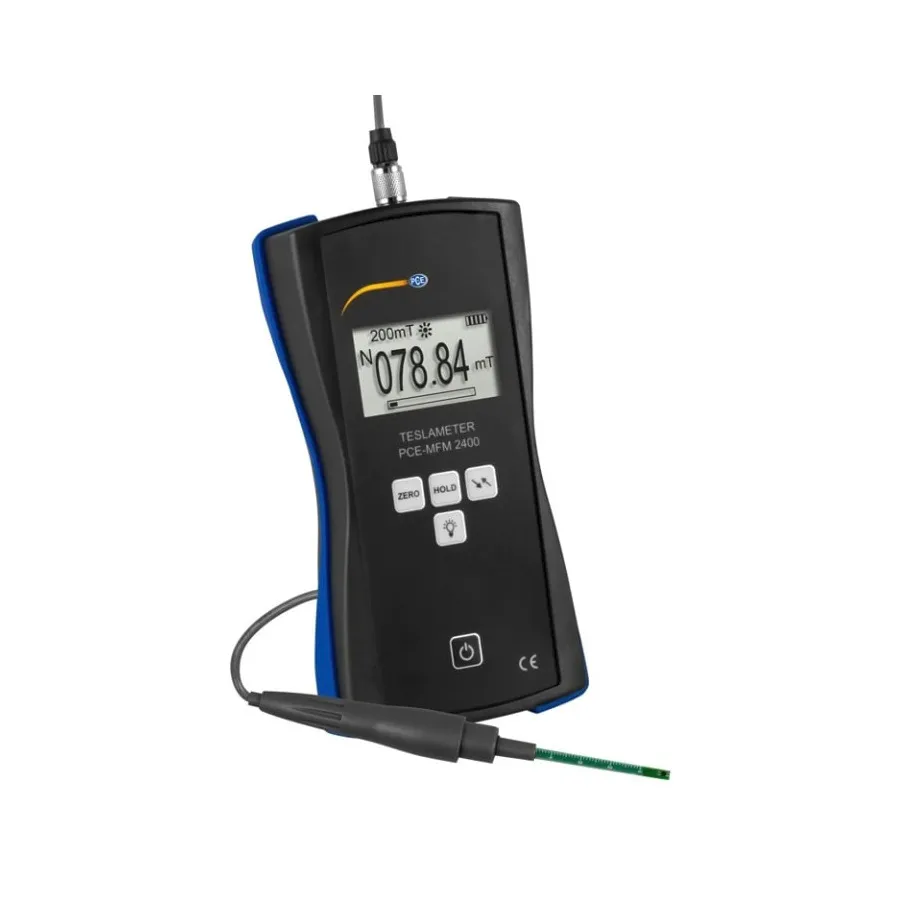

The PCE Instruments PCE-MFM 2400 is a portable magnetometer designed for measuring static (DC) magnetic fields. With a measuring range up to 2,400 mT and 1% accuracy, it is ideal for quality control, testing relays, and verifying permanent magnets. The 4-digit backlit display ensures clear readings in all lighting conditions.
Key Features
- Includes transverse Hall sensor for directional magnetic field measurement
- Measuring range: up to 24,000 G or 2,400 mT
- Accuracy: 1%
- Resolution: 0.001 mT; 0.1 G
- 4-digit backlit display for easy readability
- Hold mode and measurement mode
- Automatic shutdown after 5 minutes to preserve battery
Applications
- Testing relays and permanent magnets
- Quality control in manufacturing
- Production process verification
- Magnetic field measurement and analysis
Included Accessories
- Transverse Hall sensor
- Service bag
- 9V block battery
Specifications
| Series | PCE-MFM Series |
| Battery Type | 9V Block |
| Height | 7.28" |
| Length | 3.82" |
| Power Supply | Battery Powered |
| Safety Rating | CE, FCC, RoHS |
| Style | Hand Held |
| Units of Measurement | mT, G |
| Warranty | 2 Years |
| Width | 1.57" |
