PCE-EVSE-KIT2 is a comprehensive electric vehicle charging station tester with dual display, 3.5" TFT LCD, and EVSE adapter with Type 1 and Type 2 plugs.
Product details
| Model | PCE-EVSE-KIT2 |
| Manufacturer | PCE Instruments |
| Category | Electrical Testers |
| Availability | Made to order |
Description
Overview

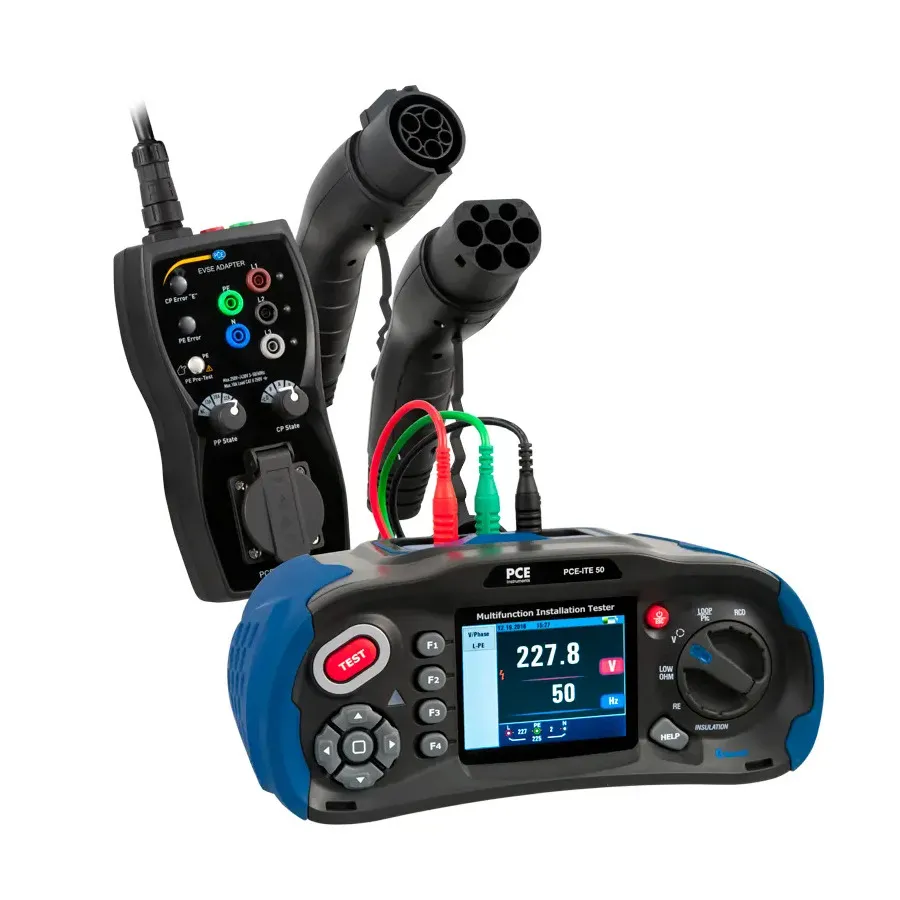

The PCE-EVSE-KIT2 is a robust installation tester designed for testing electric vehicle charging stations (wallboxes). It features a large 3.5" TFT color LCD display and includes the PCE-ITE 50 installation tester and PCE-EVSE 300 EVSE adapter, enabling comprehensive safety and functionality verification of EV charging infrastructure.
Key Features
- 3.5" color TFT LCD display with high viewing angle
- Dual display for intuitive operation
- Loop resistance measurement (L-N, L-PE, N-PE)
- Low Ohm measurement range: 0-2000 Ω
- Insulation resistance testing at 125V, 250V, 500V, and 1000V
- Grounding resistance measurement (0-2000 Ω)
- Adjustable FI test current
- RCD (FI) test with good/bad indication
- SD card and Bluetooth connectivity
- Photo documentation capability
- Direct connection for wallboxes
- Type 1 and Type 2 charging plug adapters
- Integrated Schuko socket
- PE conductor test
Applications
- Electric vehicle charging station installation testing
- Wallbox safety verification
- CP (Control Pilot) line simulation testing
- PP (Proximity Plug) line simulation testing
- Insulation and grounding safety verification
- Charging infrastructure compliance testing
Included Accessories
- 1x EVSE Adapter PCE-EVSE 300
- 1x Installation Tester PCE-ITE 50
- 1x Charging cable plug Type 1
- 1x Charging cable plug Type 2
- 1x Transport bag
- 1x Transport case
- 1x Test leads
- 1x Instruction manual
Specifications
| Series | EVSE Series |
