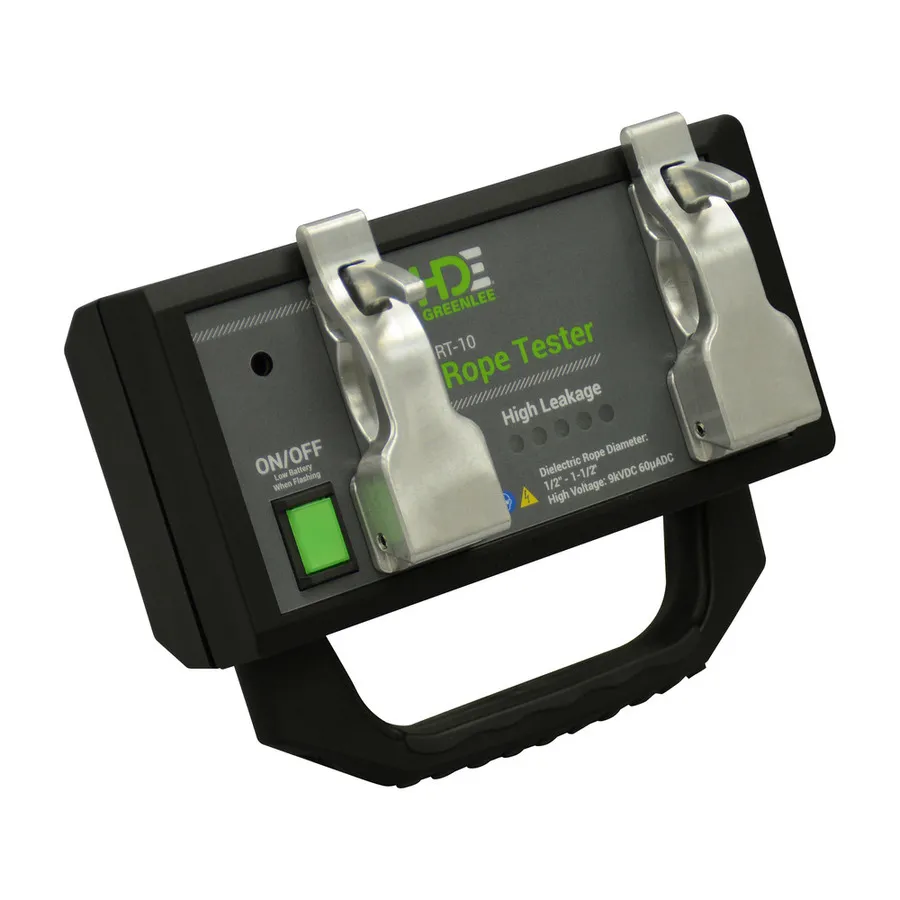

HDE RT-10 Rope Tester
Request a quote
HDE RT-10 is a portable rope tester for dielectric strength field testing with magnetic mount and 9V battery operation.
Product details
| Model | RT-10 |
| Manufacturer | HDE |
| Category | Electrical Testers |
| Availability | Made to order |
Description
Overview
The HDE RT-10 is a portable dielectric rope tester designed for field testing of dielectric rope before use in live line environments. The unit enables quick assessment of rope quality and contamination without requiring power cords or fixed installation.
Key Features
- Field-replaceable 9V battery power for portability
- Magnetic mount for flexible setup and positioning
- Clear visual and audible indication when contaminated sections are detected
- Tests dielectric strength at 10kVDC
- 15µA test current capability
Applications
- Live line electrical work and maintenance
- Rope inspection before use in high-voltage environments
- Field quality assurance for dielectric rope
Specifications
| Battery Life | 8 hrs. |
| Battery Type | 9V Field-Replaceable |
| Includes | Rope Tester includes carrying case, (2) 9V Batteries |
| Mounting Type | Magnet |
| Product Type | Rope Tester |
| Temperature Range | 0 to 125°F |
