HDE QC-MAN-M Transformer and Capacitor Tester

Overview

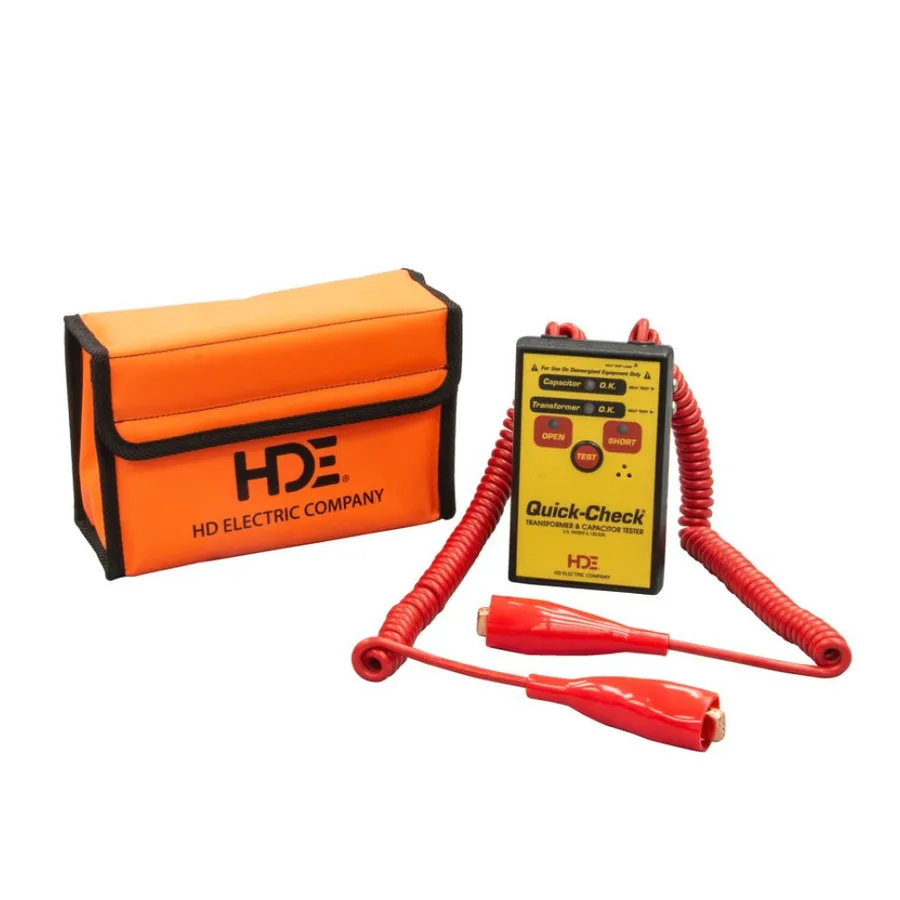

The HDE QC-MAN-M is a manual self-test transformer and capacitor tester with magnetic mounting for hands-free operation. It provides single push-button verification of open circuits, short circuits, and healthy equipment status with simple and reliable operation suitable for field and shop environments.

Key Features

• Single push-button operation for quick testing
• Manual self-test with test tabs on unit side for verification checks
• Magnetic mounting for hands-free operation and secure placement
• Tests transformers for primary and secondary shorts or opens, including internal fuses and breakers
• Tests capacitors and capacitor banks individually or in arrays
• Clear indications of open circuits, short circuits, and OK status
• Tests de-energized equipment without disconnecting primary and secondary sides
• Automatic distinction between transformer and capacitor measurements

Applications

• Field testing of overhead and pad-mount distribution transformers before energizing
• Incoming and outgoing transformer screening in manufacturing and shop environments
• Single-phase (1Ø) and three-phase (3Ø) transformer testing
• Testing potential and instrument transformers
• Capacitor and capacitor bank testing before installation
• Verification of secondary connections on transformer installations
