Fluke FLK-SMFT-1000/PRO Multifunction PV Analyzer

Overview

The Fluke FLK-SMFT-1000/PRO is a multifunction PV analyzer designed for professionals providing installation, commissioning, and maintenance services to photovoltaic systems operating at 1000 V DC or under. It provides comprehensive testing that verifies PV system performance and safety, conforms to IEC 62446-1 standards, and expedites client reporting through integrated TruTest software for data management and analysis.

The system includes an IRR2-BT wireless irradiance meter that communicates real-time environmental data to ensure accurate I-V curve measurements. The included TruTest Solar Data Management Software enables solar asset management, data storage, and professional reporting on a single platform.

Key Features

• I-V curve safety tester with on-location instant comparison to manufacturer data
• Wireless irradiance meter with 17-hour autonomous data recording
• Auto test mode with configurable insulation testing and protection class testing
• Keep the Leads system for reduced setup time
• On-screen graph display with real-time data visualization
• Measures open circuit voltage (VoC), protective resistance (RLO), and short circuit current (ISC)
• CAT 1 and CAT 2 testing capability
• Data management and comparison tools for tracking changes over time

Applications

• PV system installation and commissioning
• Ongoing maintenance and performance verification
• Safety testing and compliance verification
• System performance analysis and client reporting

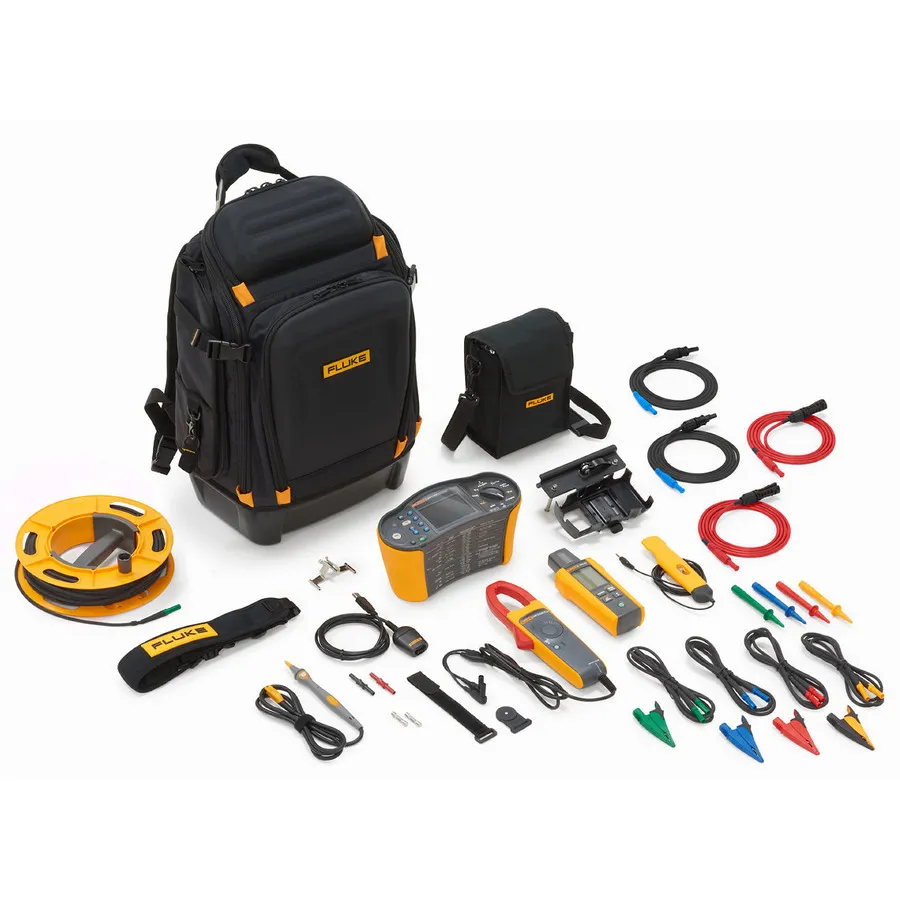

Included Accessories

• Multifunction PV Analyzer with carrying strap
• IRR2-BT wireless irradiance meter with carrying case and mounting bracket
• AC/DC current clamp with magnet and strap
• Remote probe
• Test leads with alligator clips and test probes
• MC4 solar clamp test lead set (2x)
• Cable reel with 30m test lead
• Softside backpack with foam insert
• Extra fuse pack, zero adapter, and IRDA optical USB adapter
• TruTest Advanced License
