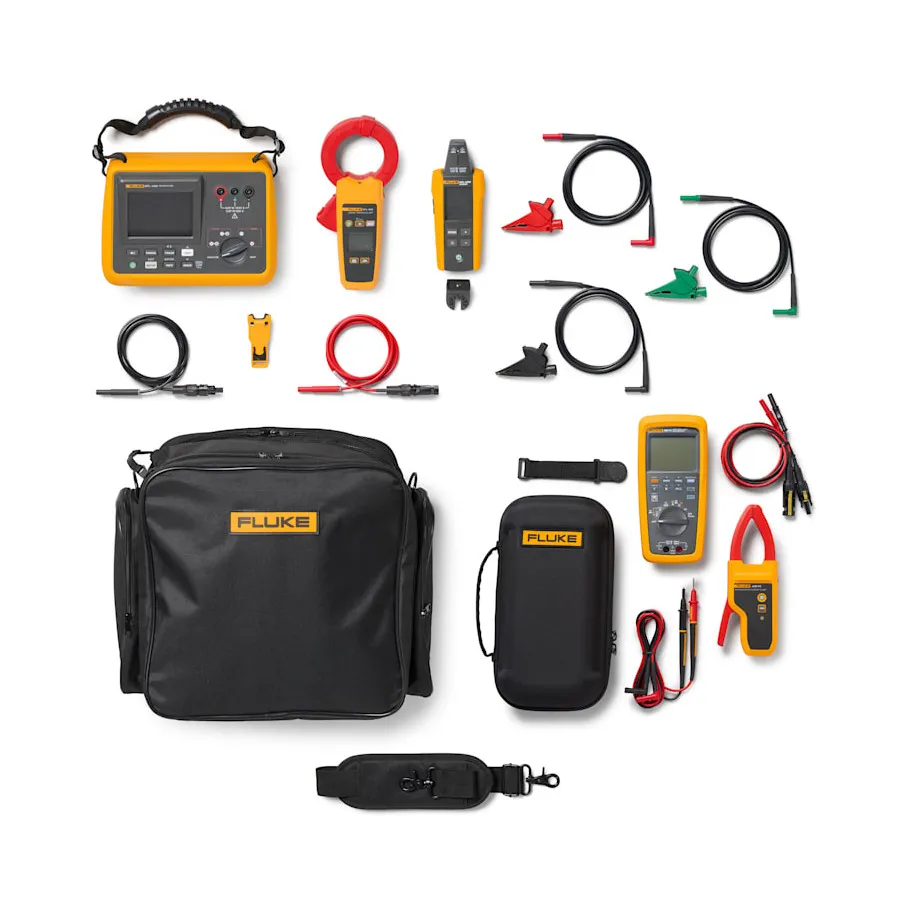

Fluke FLK-GFL1500-283/PV Ground Fault Locator Kit

Overview

The Fluke FLK-GFL1500-283/PV is a comprehensive ground fault locator kit designed for solar photovoltaic installations. It combines the GFL-1500 Ground Fault Locator with advanced FaultTrack technology and the 283 FC Logging Multimeter with wireless current clamp, providing technicians with complete tools for identifying and diagnosing ground faults in DC solar arrays and combiner boxes.

Key Features

• GFL-1500 Ground Fault Locator: FaultTrack technology with easy-to-follow traceable signal for identifying active ground faults anywhere in the DC system
• Non-contact signal tracing reduces exposure to electrical hazards
• Integrated diagnostic functions: Analyze, Fault Tracing, Open Circuit detection, and Mapping
• Current clamp identifies faulted combiner or string without disconnections
• CAT III 1500 V DC and CAT IV 600 V safety rated
• 283 FC Digital Multimeter: 1500 VAC / 1000 VDC with 60 A AC/DC current measurement
• Wireless current clamp (a283 FC) for convenient measurement transmission
• Simultaneous voltage and current measurement with automatic VA Power calculation
• User-defined limit gauge for quick pass/fail troubleshooting decisions
• Logging and data storage to internal memory or Fluke Connect
• Integrated multimeter readiness selfcheck
• Built-in real-time clock for time- and date-stamped measurements

Applications

• Ground fault identification and location in solar PV arrays and combiner boxes
• DC system troubleshooting in utility-scale solar installations
• Wind power, electric railway, and data center DC system diagnostics
• Safety verification and performance testing of solar installations

Included Accessories

• GFL-1500 Ground Fault Locator with current clamp
• 283 FC Digital Multimeter
• a283 FC Wireless Current Clamp with 34 mm jaw opening
