Fluke FLK-FEV150/TY1 EV Charging Station Analyzer Kit

Overview

The Fluke FLK-FEV150/TY1 is a complete solution for safety and performance testing of AC EV charging stations with Type 1 (SAE J1772) connectors. This kit includes the FEV150 analyzer and a Type 1 connector and cable assembly, enabling technicians to test charging station functionality and safety without requiring an actual electric vehicle on site. The system provides comprehensive test capabilities for post-installation verification and ongoing maintenance.

Key Features

• Control Pilot (CP) state simulation — Simulates all vehicle charging states (A, B, C, D) for complete validation
• PE earth pre-test — Ensures no dangerous voltage is present before testing
• GFCI testing — Validates ground fault protection with 6 mA and 20 mA trip and no-trip tests
• Fault simulation — Tests system handling of PE errors, CP errors, diode shorts, and error conditions
• Voltage measurement — Tests L-N, L-PE, N-PE (0-253V) and L-L (0-440V) with ±(3% + 3 digits) accuracy
• Automatic test plans — Provides predetermined test sequences with pass/fail indication
• Auto Control Pilot with waveform analysis — Displays nominal results and CP waveforms on screen
• Included Type 1 connector — Supplied with FEV-CON-TY1 connector and cable for immediate use

Applications

• Post-installation commissioning and safety verification of new charging stations
• Regular maintenance and functional testing of charging equipment
• Troubleshooting defective charging stations
• Verification of SAE J1772 compliance
• Documentation and recordkeeping of test results

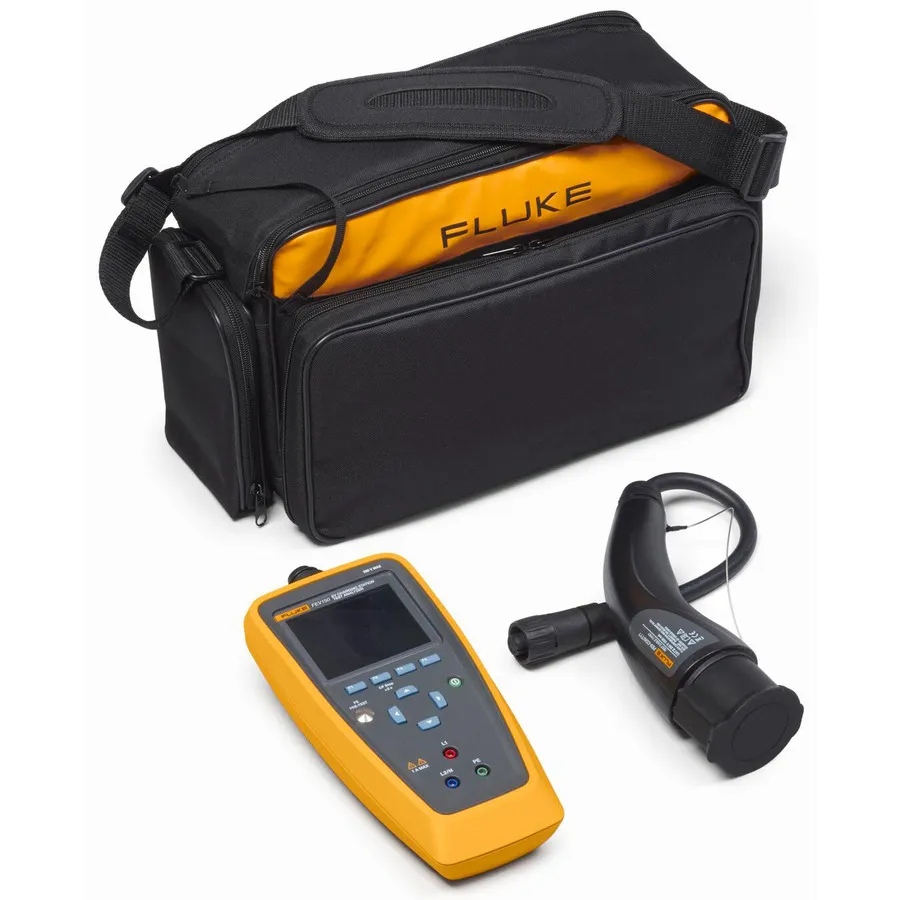

Included Accessories

• FEV150 Analyzer
• FEV-CON-TY1 Type 1 connector and cable assembly
• Carrying case
• 4x AA batteries
• Test lead kit (TPAK)
• Quick reference guide
• Safety documentation
