Fluke FLK-FEV100/TY1 & TSL — EV charging station test adapter supporting both Type 1 and Tesla connectors with CP state simulation, GFCI testing, and PE grounding verification.
Product details
| Model | FLK-FEV100/TY1 & TSL |
| Manufacturer | Fluke |
| Category | Electrical Testers |
| Availability | Made to order |
Description
Overview
The Fluke FLK-FEV100/TY1 & TSL is a comprehensive EV charging station (EVSE) test adapter for both Type 1 SAE J1772 and Tesla AC charging connectors. It simulates the presence of an electric vehicle, eliminating the need to bring a vehicle to the test site. The adapter enables safe testing and troubleshooting of Level 1 and Level 2 AC charging stations.
Key Features
- CP Control Pilot state simulation for different charging states
- PE Pre-Test for dangerous voltage detection
- GFCI troubleshooting and functional verification
- Dual connector support: Type 1 SAE J1772 and Tesla AC
- SAE J1772 compliant for North American standards
- Measurement category CAT II 250V
- Integrates with Fluke test and measurement portfolio
Applications
- EVSE installation verification and commissioning
- Type 1 Level 1 and Level 2 AC charging station testing
- Tesla AC charging station testing
- Periodic maintenance and safety verification
- Ground fault protection testing
- Charging voltage and current capacity measurement

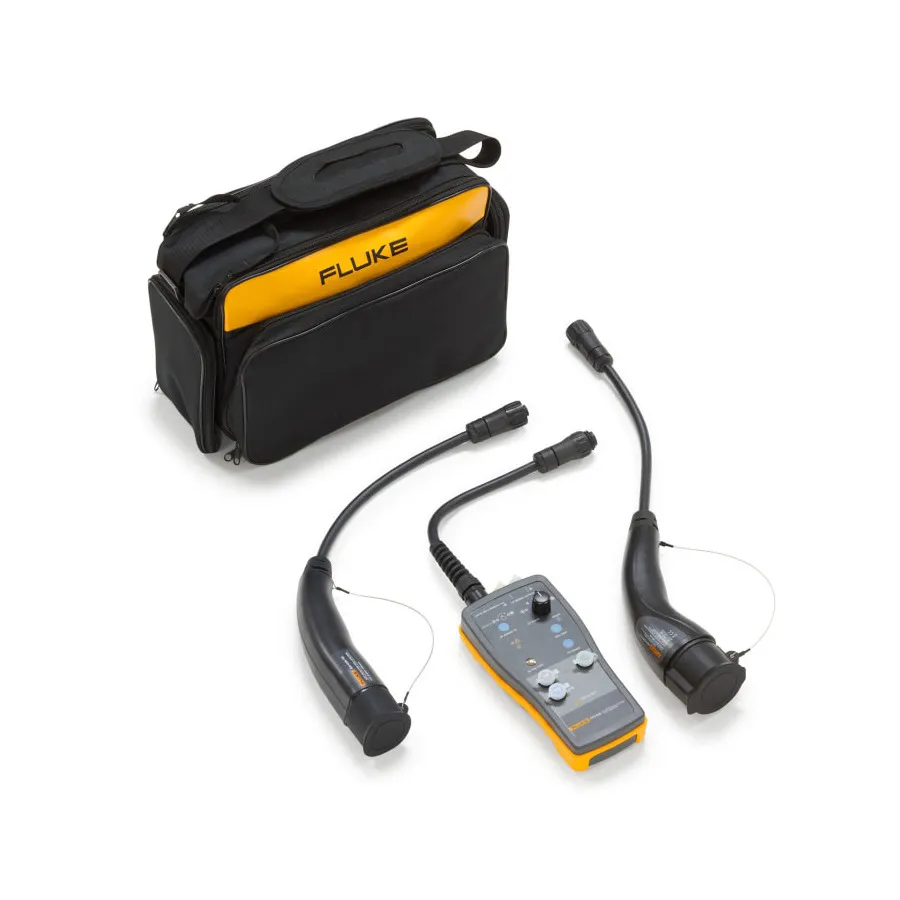

Included Accessories
- FEV100/BASIC Test Adapter
- FEV-CON/TY1 Type 1 Connector and Cable
- FEV-CON-TSL Tesla Type Connector and Cable
- Soft carrying case
Specifications
| Series | FEV100 Series |
