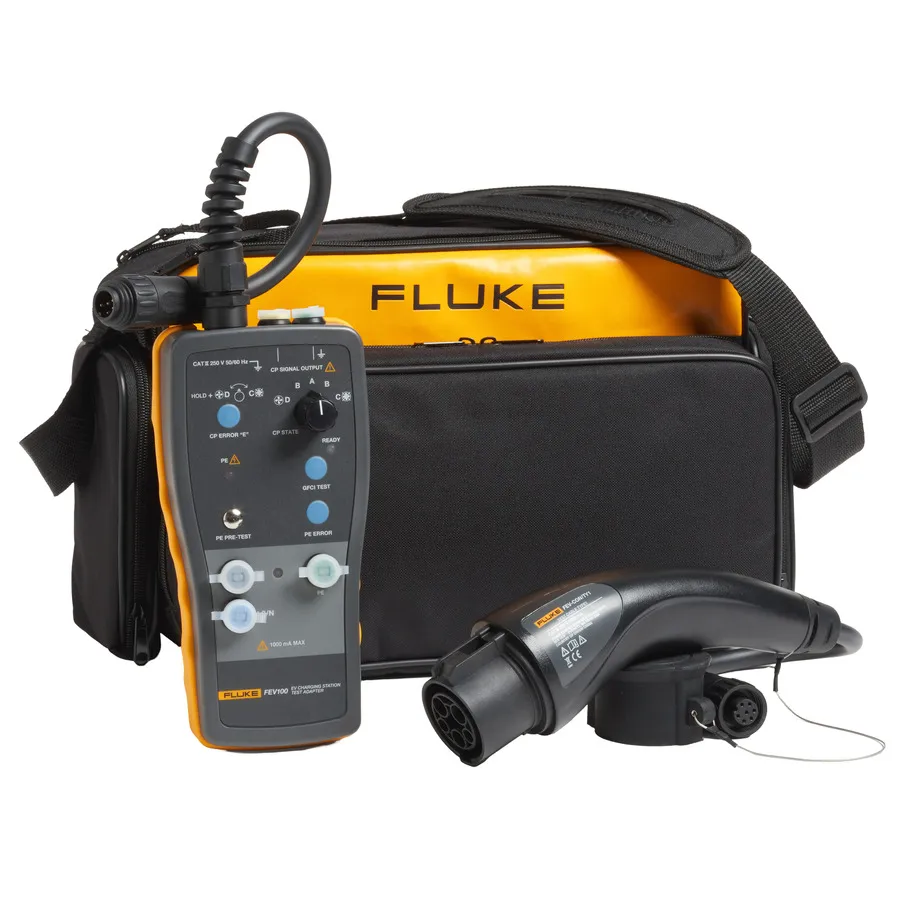

Fluke FLK-FEV100/TY1 EV Charging Station EVSE Test Adapter
Request a quote
Fluke FLK-FEV100/TY1 — EV charging station test adapter for Type 1 connectors with CP state simulation, GFCI testing, and PE grounding verification to ensure safe EVSE operation.
Product details
| Model | FLK-FEV100/TY1 |
| Manufacturer | Fluke |
| Category | Electrical Testers |
| Availability | Made to order |
Description
Overview
The Fluke FLK-FEV100/TY1 is a test adapter designed for EV charging station (EVSE) technicians and installers. It simulates the presence of an electric vehicle, allowing comprehensive testing without requiring an actual vehicle on site. The adapter works with Type 1 SAE J1772 connectors and is compatible with Level 1 and Level 2 AC charging stations.
Key Features
- CP Control Pilot state simulation for testing different charging states
- PE Pre-Test for dangerous voltage detection at ground terminal
- GFCI troubleshooting and functional verification
- SAE J1772 compliant for North American standards
- Measurement category CAT II 250V
- Works with Type 1 connectors and cables
- Compatible with Fluke test and measurement tools
Applications
- EVSE installation verification and commissioning
- Periodic maintenance and safety testing
- EVSE troubleshooting and diagnostics
- Ground fault circuit protection verification
- Charging voltage and current capacity measurement
Included Accessories
- FEV100/BASIC Test Adapter
- FEV-COM/TY1 Type 1 Connector and Cable
- Soft carrying case
- User manual
Specifications
| Alternate Product Number | 5258790 |
| Series | FEV100 Series |
