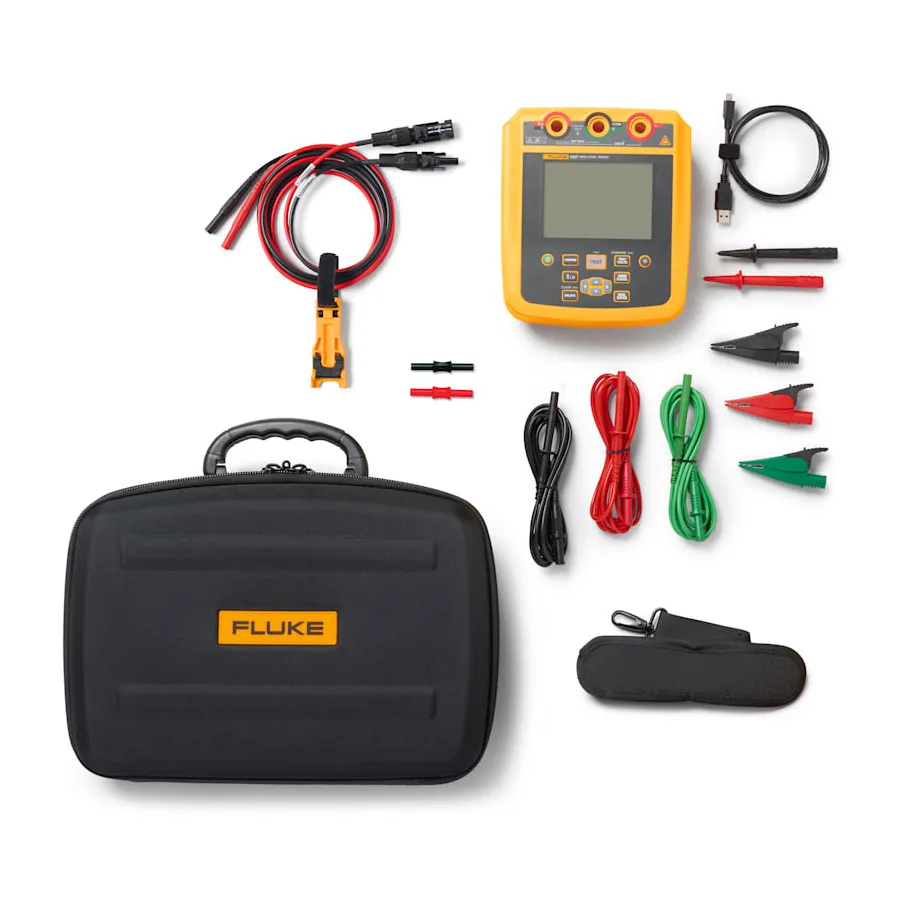

Fluke FLK-1537-TLPV1 Solar Kit
Request a quote
Fluke FLK-1537-TLPV1 combines 2500V insulation tester with MC4 test leads for safe solar PV diagnostics and data logging.
Product details
| Model | FLK-1537-TLPV1 |
| Manufacturer | Fluke |
| Category | Electrical Testers |
| Availability | Made to order |
Description
Overview
The Fluke FLK-1537-TLPV1 combines the portable Fluke 1537 Insulation Resistance Tester with MC4-compatible test leads specifically designed for solar photovoltaic installations. This kit enables safe testing of PV array wiring, inverters, and junction boxes with user-selectable test voltages up to 2500V. Built-in data storage allows technicians to record and recall test results on site, streamlining documentation and commissioning workflows.
Key Features
- User-selectable test voltages: 250V, 500V, 1000V, 2500V
- Insulation resistance measurement to 500 Gigohm
- 1,300 measurements at 2500V or 6,500 at 250V per charge
- CAT IV 600V safety rating with built-in voltage alarm
- Short circuit current up to 5 mA for safe high-voltage testing
- Portable, lightweight design for field use
- TLPV1 MC4 test leads: 150 cm length, nickel-plated contacts
- Official Staubli MC4 connectors for reliable PV connections
- On-site data storage and recall functionality
- Intuitive user interface for rapid testing
Applications
- PV array wiring insulation verification
- Inverter and power converter safety testing
- Junction box diagnostics
- Cable and component integrity assessment
- Solar installation commissioning and acceptance testing
Included Accessories
- Fluke 1537 Insulation Tester
- TLPV1 test lead set with black and red MC4 connectors
Specifications
| Series | 153x Series |
| Includes | 1537 insulation tester; TLPV1 test lead set, black/red |
