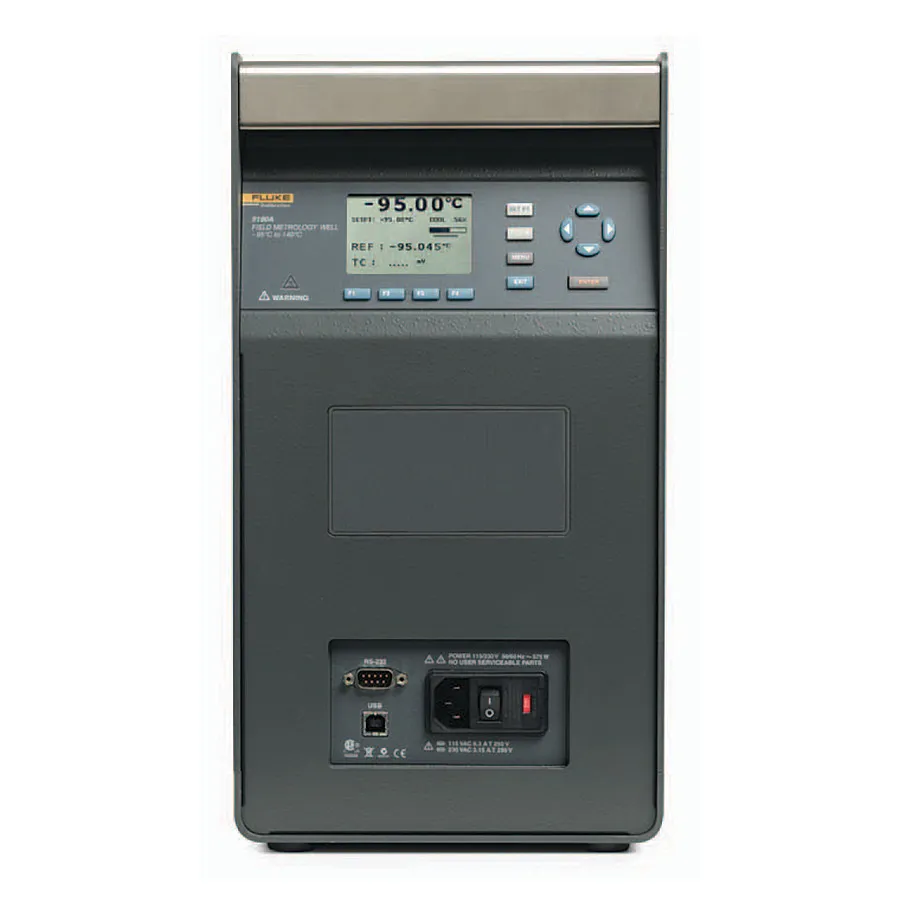

Fluke 9190A-E-156 Ultra-Cold Dry-Well
Fluke 9190A-E-156 ultra-cold dry-block calibrator delivers -95°C to 140°C range with ±0.015°C stability, metric miscellaneous holes (Insert E), and flexible probe accommodation.
Product details
| Model | 9190A-E-156 |
| Manufacturer | Fluke |
| Category | Dry Block Calibrators |
| Availability | Made to order |
Description
Overview
The Fluke 9190A-E-156 is an ultra-cold dry-block calibrator designed for precision temperature measurement and calibration with flexible probe accommodation. It offers an exceptional temperature range from -95°C to 140°C with stability of ±0.015°C, making it ideal for pharmaceutical, biomedical, and food processing applications requiring ultra-cold calibration. Unlike traditional calibration baths, the dry-block design eliminates the need for calibration fluids, ensuring clean room compatibility and ease of transportation. Insert E provides metric miscellaneous holes for accommodating various probe sizes and custom configurations.
Key Features
- Temperature range: -95°C to 140°C at 23°C ambient
- Stability: ±0.015°C full range
- Axial uniformity: ±0.05°C full range at 40 mm depth
- Radial gradient: ±0.01°C full range
- Resolution: 0.01°C
- Well immersion depth: 160 mm (6.3 in)
- Fast cooling: 80 minutes to -90°C, 90 minutes to -95°C from 23°C
- Dual heater zone for superior temperature control
- Programmable up to 8 set-point temperatures with automatic ramping and soaking
- LCD display with user-selectable °C or °F
- Computer interfaces: RS-232 and USB Serial
- Built-in handles for two-handed carry
- EURAMET cg-13 measurement practice compliant
- Insert E with metric miscellaneous holes: 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, plus one 0.25 inch hole
- Flexible probe accommodation with insert removal tool included
Applications
- On-site verification and calibration of RTDs, thermocouples, and thermometers
- Sensor calibration for medical equipment including freezers and autoclaves
- Laboratory refrigerator and cold room temperature validation
- Blood bank and sterilizer temperature calibration
- Freeze dryer temperature verification
- Industrial process control equipment calibration
- Flexible probe accommodation with various diameter requirements
Included Accessories
- 2-meter (6-foot) mains power cord
- USB cable
- Getting Started Manual
- Calibration Report and Label
- Well Insulator Cap
- Insert Removal Tool
Specifications
| Series | 9190A Series |
