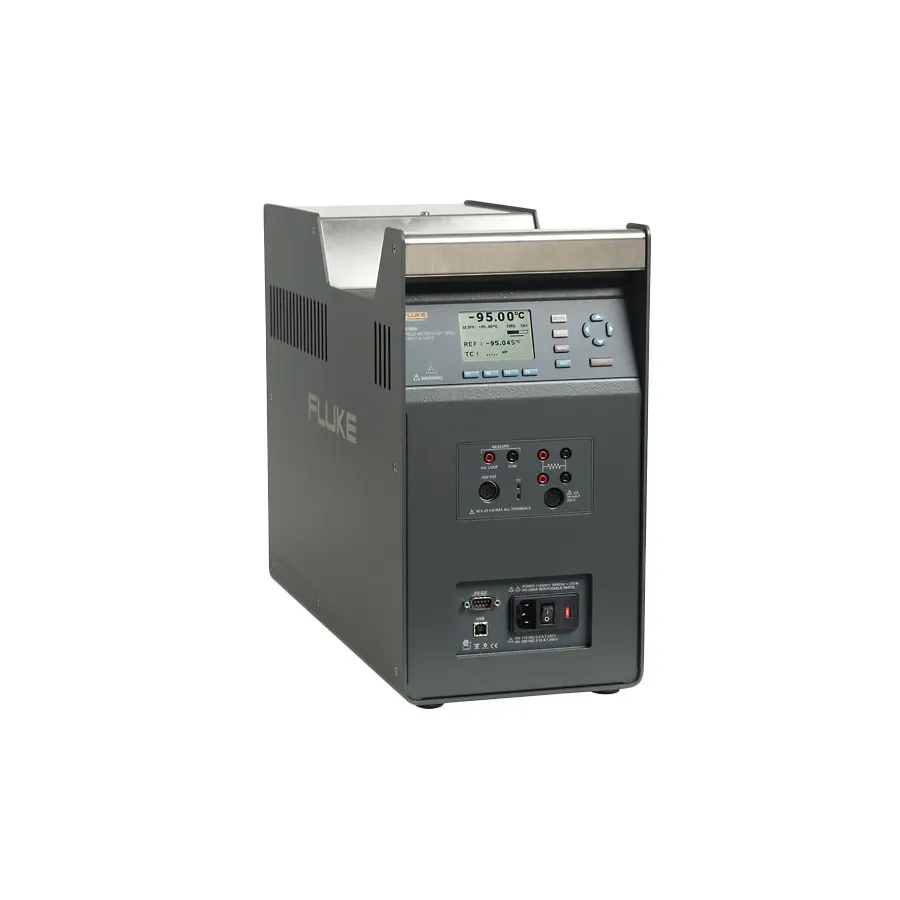

Fluke 9190A-D-P-156 Ultra-Cold Dry-Well
Fluke 9190A-D-P-156 ultra-cold dry-block calibrator with -95°C to 140°C range, ±0.015°C stability, process electronics, and metric comparison holes (Insert D).
Product details
| Model | 9190A-D-P-156 |
| Manufacturer | Fluke |
| Category | Dry Block Calibrators |
| Availability | Made to order |
Description
Overview
The Fluke 9190A-D-P-156 is an ultra-cold dry-block calibrator designed for precision temperature measurement and calibration. It offers an exceptional temperature range from -95°C to 140°C with stability of ±0.015°C, making it ideal for pharmaceutical, biomedical, and food processing applications requiring ultra-cold calibration. Unlike traditional calibration baths, the dry-block design eliminates the need for calibration fluids, ensuring clean room compatibility and ease of transportation. The integrated process option (-P) includes 4-20 mA connectors and reference thermometer input for automated sensor calibration.
Key Features
- Temperature range: -95°C to 140°C at 23°C ambient
- Stability: ±0.015°C full range
- Axial uniformity: ±0.05°C full range at 40 mm depth
- Radial gradient: ±0.01°C full range
- Resolution: 0.01°C
- Well immersion depth: 160 mm (6.3 in)
- Fast cooling: 80 minutes to -90°C, 90 minutes to -95°C from 23°C
- Dual heater zone for superior temperature control
- Programmable up to 8 set-point temperatures with automatic ramping and soaking
- LCD display with user-selectable °C or °F
- Computer interfaces: RS-232 and USB Serial
- Built-in handles for two-handed carry
- EURAMET cg-13 measurement practice compliant
- Insert D with metric comparison holes: 3 mm (×2), 4 mm (×2), 6 mm (×2)
- Process option (-P) with 4-20 mA connectors, 24 V dc loop power, reference thermometer input, and 4-wire PRT/RTD input
- Thermocouple compatibility: types J, K, T, E, R, S, M, L, U, N, C
Applications
- On-site verification and calibration of RTDs, thermocouples, and thermometers
- Sensor calibration for medical equipment including freezers and autoclaves
- Laboratory refrigerator and cold room temperature validation
- Blood bank and sterilizer temperature calibration
- Freeze dryer temperature verification
- Industrial process control equipment calibration
Included Accessories
- 2-meter (6-foot) mains power cord
- USB cable
- Getting Started Manual
- Calibration Report and Label
- Well Insulator Cap
- Insert Removal Tool
- Clamp-on Ferrites (4)
- 6-pin DIN Connector
- Test Lead Kit
Specifications
| Series | 9190A Series |
