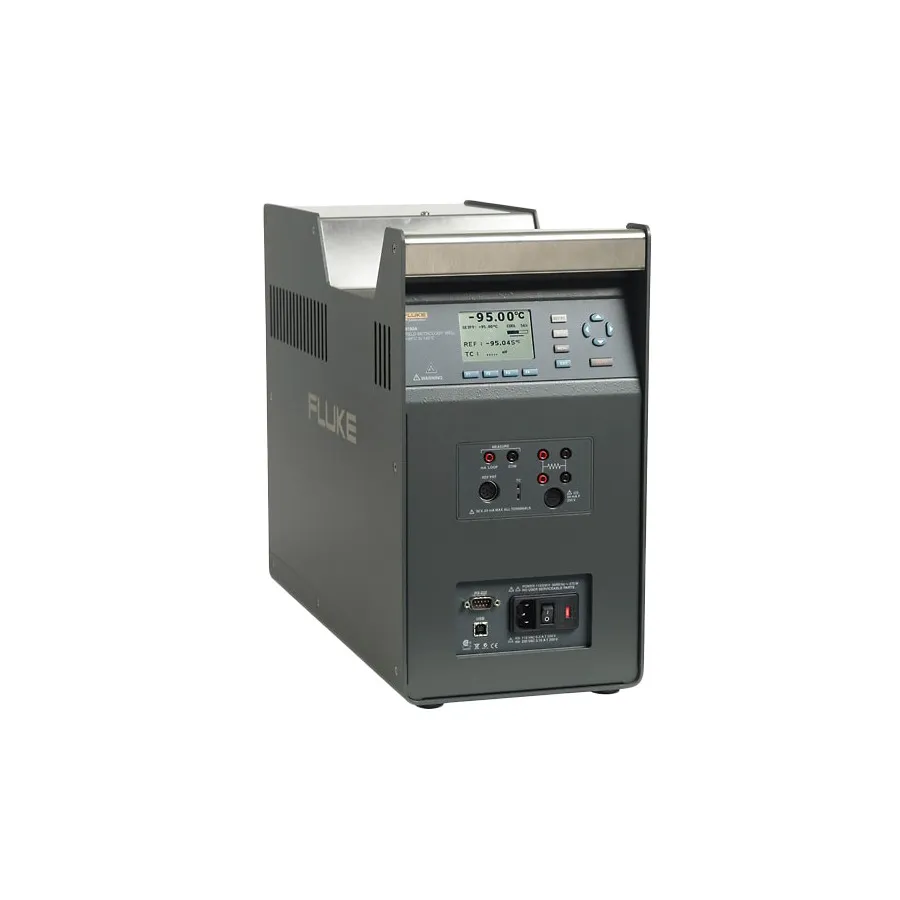

Fluke 9190A-C-P-156 Ultra-Cold Dry Block Calibrator
Fluke 9190A-C-P-156 ultra-cold dry block calibrator with -95°C to 140°C range, ±0.015°C stability, process electronics, and dual-zone heating for precision temperature control.
Product details
| Model | 9190A-C-P-156 |
| Manufacturer | Fluke |
| Category | Dry Block Calibrators |
| Availability | Made to order |
Description
Overview
The Fluke 9190A-C-P-156 is an ultra-cold dry block calibrator with integrated process electronics, designed for field metrology applications requiring extended temperature control from -95°C to 140°C. With exceptional stability of ±0.015°C, this calibrator accommodates the most demanding pharmaceutical, biomedical, and food processing applications. The process version includes advanced input panel connectivity for automated calibration workflows, making it ideal for rigorous quality control and regulatory compliance verification.
Key Features
- Temperature range: -95°C to 140°C with 0.01°C resolution
- Stability: ±0.015°C full range with ±0.05°C axial uniformity at 40 mm
- Radial gradient: ±0.01°C full range
- Well immersion depth: 160 mm
- Fast cooling times (80 minutes to -90°C, 90 minutes to -95°C)
- Dual heater zone for rapid temperature control
- Eight programmable set-point temperatures with automatic ramping and soaking
- LCD display with C or F user-selectable
- Process electronics with 4-20 mA connectors and 24 V loop power
- Multiple thermocouple input types (J, K, T, E, R, S, M, L, U, N, C)
- PRT Reference Thermometer 6-pin DIN smart connector
- 4-wire PRT/RTD input for precision measurement
- RS-232 and USB interfaces for computer control
- Built-in front and back handles for two-handed carry
- Insert C with six 0.25 inch holes for probe accommodation
- Conforms to EURAMET cg-13 guidance on measurement practices
Applications
- Automated on-site verification and calibration of RTDs and thermocouples
- Industrial temperature sensor calibration with process control integration
- Medical freezer and lab refrigerator temperature verification
- Cold room and blood bank temperature control validation
- Sterilizer (autoclave) and freeze dryer calibration
- Pharmaceutical and biomedical temperature-critical process validation
- Food processing temperature control verification with data logging
Included Accessories
- Insert C with six 0.25 inch holes
- 2-meter mains power cord
- USB cable
- Getting Started Manual
- Report of Calibration and Calibration Label
- Well Insulator Cap
- Insert Removal Tool
- Clamp-on Ferrites (4)
- 6-pin DIN Connector
- Test Lead Kit
Specifications
| Series | 9190A Series |
Request a quote
