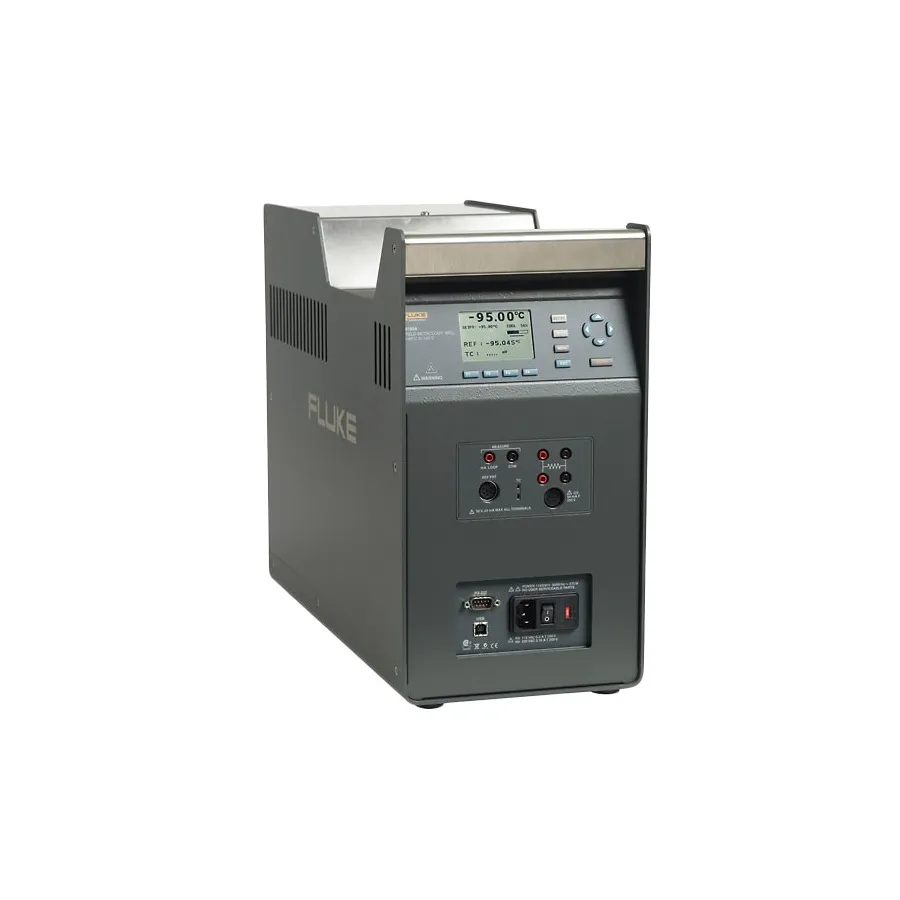

Fluke 9190A-B-P-156 Ultra-Cold Dry Block Calibrator
Request a quote
Fluke 9190A-B-P-156 ultra-cold dry block calibrator with -95°C to 140°C range, ±0.015°C stability, dual-zone heating, and process electronics for precision temperature calibration.
Product details
| Model | 9190A-B-P-156 |
| Manufacturer | Fluke |
| Category | Dry Block Calibrators |
| Availability | Made to order |
Description
Overview
The Fluke 9190A-B-P-156 is an ultra-cold dry block calibrator designed for field metrology applications requiring extreme temperature control. With a range spanning -95°C to 140°C and exceptional stability of ±0.015°C, this calibrator accommodates the most demanding pharmaceutical, biomedical, and food processing applications. Unlike traditional calibration baths, the dry-block design eliminates the need for bath fluids, keeping clean rooms pristine while enabling easier transportation.
Key Features
- Temperature range: -95°C to 140°C with 0.01°C resolution
- Stability: ±0.015°C full range with ±0.05°C axial uniformity at 40 mm
- Radial gradient: ±0.01°C full range
- Well immersion depth: 160 mm
- Fast cooling times (80 minutes to -90°C, 90 minutes to -95°C)
- Dual heater zone for rapid temperature control
- Eight programmable set-point temperatures with automatic ramping and soaking
- LCD display with C or F user-selectable
- Process electronics with 4-20 mA connectors and 24 V loop power
- Multiple thermocouple input types (J, K, T, E, R, S, M, L, U, N, C)
- PRT Reference Thermometer 6-pin DIN smart connector
- 4-wire PRT/RTD input for precision measurement
- RS-232 and USB interfaces for computer control
- Built-in front and back handles for two-handed carry
- Insert B with imperial comparison holes (1/4", 3/8", 3/16")
- Conforms to EURAMET cg-13 guidance on measurement practices
Applications
- On-site verification and calibration of RTDs and industrial thermometers
- Thermocouple calibration and validation
- Medical freezer and lab refrigerator temperature verification
- Cold room and blood bank control system validation
- Sterilizer (autoclave) and freeze dryer calibration
- Pharmaceutical and biomedical temperature-critical process validation
- Food processing temperature control verification
Included Accessories
- Insert B with imperial comparison holes
- 2-meter mains power cord
- USB cable
- Getting Started Manual
- Report of Calibration and Calibration Label
- Well Insulator Cap
- Insert Removal Tool
- Clamp-on Ferrites (4)
- 6-pin DIN Connector
- Test Lead Kit
Specifications
| Series | 9190A Series |
