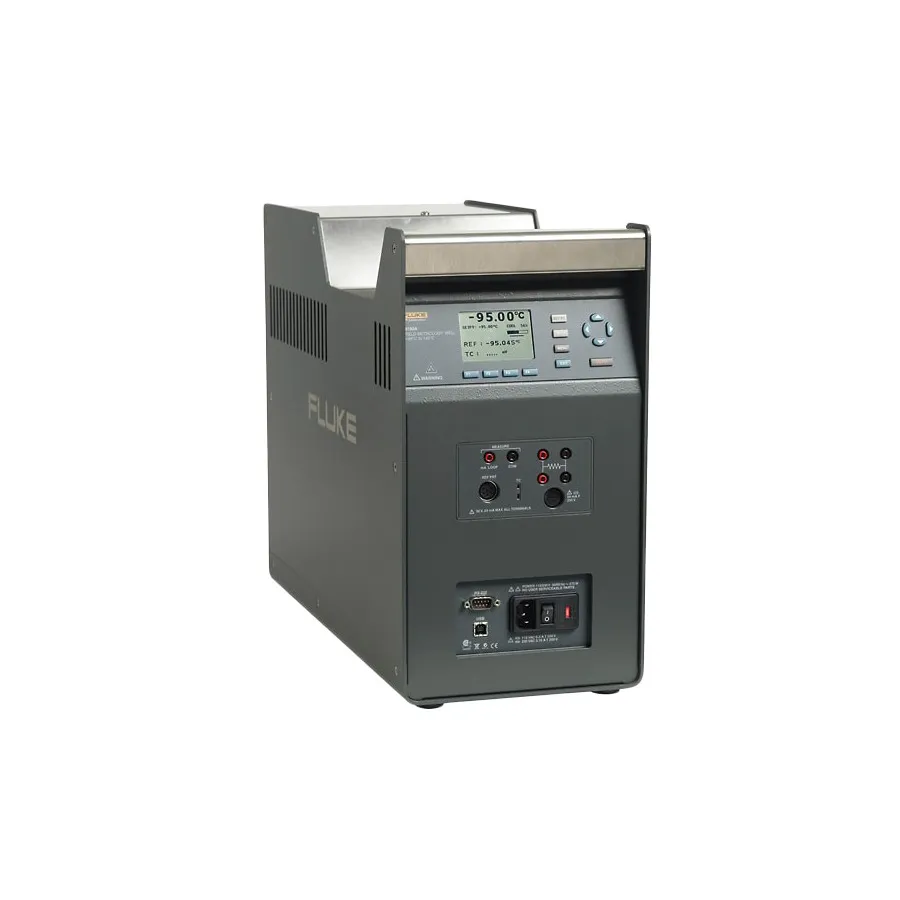

Fluke 9190A-A-P-156 Ultra-Cool Dry Well with Process Electronics
Request a quote
Fluke 9190A-A-P-156 ultra-cool dry well with process electronics, –95°C to 140°C range, ±0.015°C stability, and advanced measurement interfaces.
Product details
| Model | 9190A-A-P-156 |
| Manufacturer | Fluke |
| Category | Dry Block Calibrators |
| Availability | Made to order |
Description
Overview
The Fluke 9190A-A-P-156 is an ultra-cool field metrology well with integrated process electronics for automated temperature calibration. With temperature range –95°C to 140°C and ±0.015°C stability, it supports on-site verification of RTDs, thermocouples, and industrial thermometers in pharmaceutical, biomedical, and food processing environments.
Key Features
- Temperature range: –95°C to 140°C
- Stability: ±0.015°C full range
- Axial uniformity: ±0.05°C full range
- Radial gradient: ±0.01°C full range
- Cooling time: 23°C to –95°C in 90 minutes
- Dual heater zone with automatic set-point control
- Process Option (-P): 4-20 mA connectors with 24 V loop power
- Reference PRT input (6-pin DIN smart connector)
- 4-wire PRT/RTD input for precision measurement
- Thermocouple inputs: J, K, T, E, R, S, M, L, U, N, C types
- Supports common mini-jack terminated thermocouples
- RS-232 and USB Serial interfaces
Applications
- Automated calibration of RTDs and thermocouples
- Medical freezer and laboratory temperature validation
- Industrial thermometer field verification
- Process control equipment calibration
- Autoclave and freeze dryer verification
Included Accessories
- 9190A-A-P-156 Dry-Well with Insert A and Process Electronics
- 2-meter Mains Power Cord
- USB Cable
- Getting Started Manual
- Report of Calibration and Calibration Label
- Well Insulator Cap
- Insert Removal Tool
- Clamp-on Ferrites (4)
- 6-pin DIN Connector
- Test Lead Kit
Specifications
| Series | 9190A Series |
