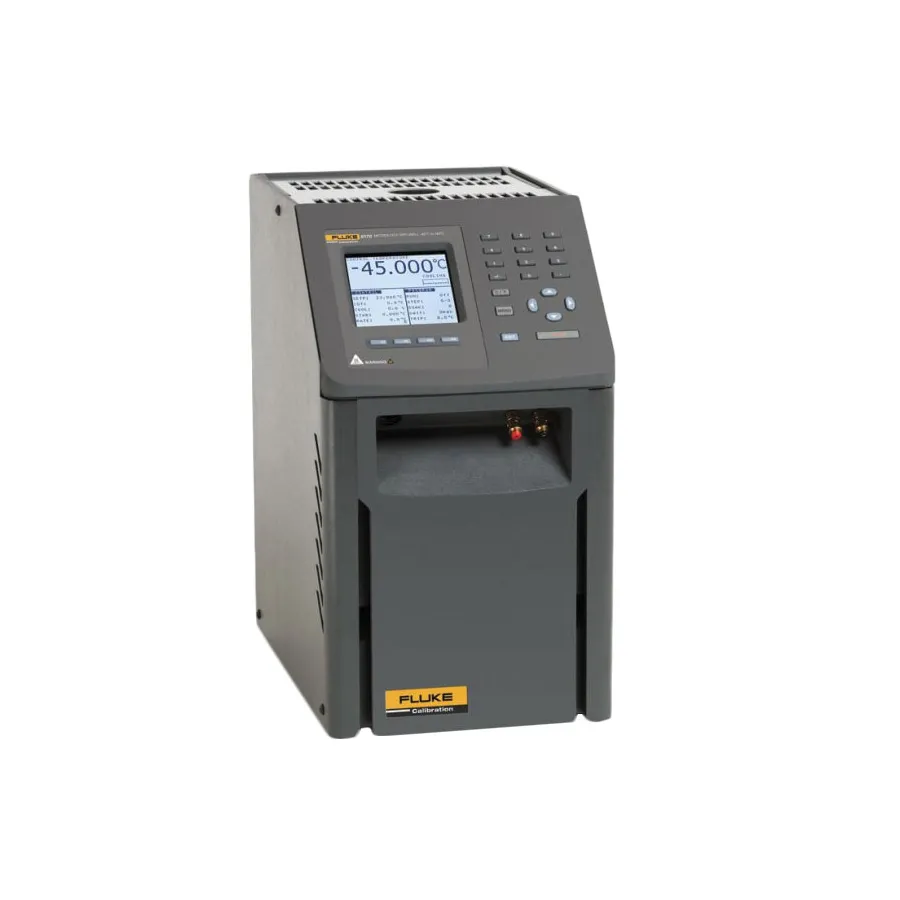

Fluke 9170-DW-R-156 Metrology Well

Overview

The Fluke 9170-DW-R-156 is a precision metrology well designed for temperature calibration and measurement with integrated reference thermometry. This model achieves the lowest temperatures in the 9170 series, reaching -45°C in normal room conditions. With exceptional stability of ±0.005°C across its full temperature range (up to 140°C) and an immersion depth of 160 mm, it delivers precise temperature calibration for laboratory and field applications. The built-in reference thermometer input using Fluke's Tweener measurement technology enables direct, traceable temperature measurement with compatible PRTs.

Key Features

• Temperature range: -45°C to 140°C
• Display accuracy: ±0.1°C full range
• Stability: ±0.005°C full range
• Axial uniformity: ±0.1°C at -45°C, ±0.04°C at -35°C, ±0.02°C at 0°C, ±0.07°C at 140°C
• Radial uniformity: ±0.01°C full range
• Well depth: 160 mm
• Resolution: 0.001°C
• LCD display, selectable C or F
• RS-232 serial interface
• 8 temperature set points with ramp and soak capability
• Automated switch test protocol
• Built-in reference thermometer input (Tweener technology compatible with 100Ω, 25Ω, and 10Ω PRTs)
• Interchangeable probe sleeves for varying probe diameters
• No insert included with this model

Applications

• Temperature calibration of RTDs, thermocouples, and thermistors
• Pharmaceutical and industrial temperature measurement
• Laboratory reference standard applications with integrated measurement capability
• Field temperature calibration and verification

Included Accessories

• Power cord
• RS-232 cable
• Getting started guide
• User's guide
• Report of calibration and calibration label
• Tongs (insert removal tool)
• 9930 Interface-it software and user's guide
