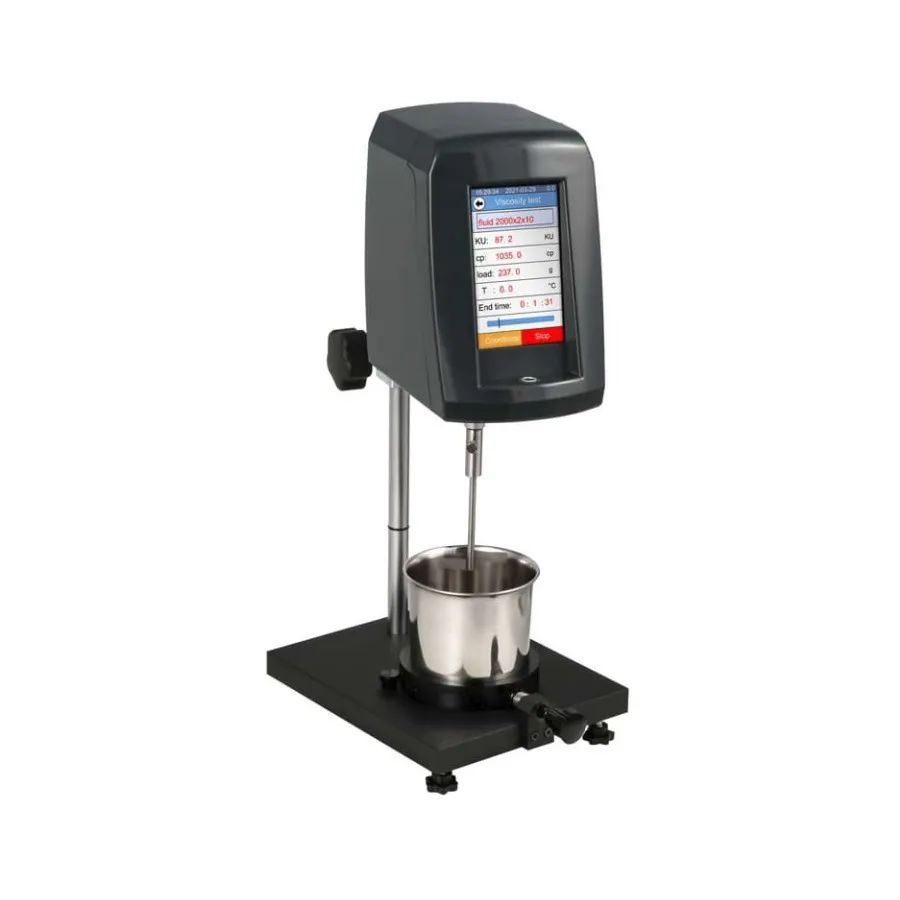

PCE Instruments PCE-RVI 8 Viscosity Meter
Request a quote
PCE-RVI 8 paint viscosity tester with measuring range 27–5,250 cP, ±1% accuracy, and 5-inch touchscreen for laboratory and production quality control.
Product details
| Model | PCE-RVI 8 |
| Manufacturer | PCE Instruments |
| Category | Dimensional Measuring Tools |
| Availability | Made to order |
Description
Overview
The PCE-RVI 8 is a paint viscosity tester designed for precise viscosity measurement in quality control and laboratory environments. With a measuring range of 27 to 5,250 cP and accuracy of ±1% of the measuring range, this viscometer is ideal for determining the viscosity of paints, oils, and other liquids. The large 5-inch LCD touchscreen enables intuitive operation and real-time graphical display of measured values.
Key Features
- Viscosity measuring range: 27 to 5,250 cP
- Accuracy: ±1% of full scale
- Fixed rotation speed: 200 RPM
- Temperature measuring range: -20°C to 250°C
- 5-inch LCD touchscreen for easy operation
- Automatic shutdown in case of overload
- KU1 spindle included in delivery
- Measuring cup volume: 600 ml
- Height-adjustable stand and mount
- External temperature sensor for accurate temperature control
- Optional PC software for data recording and export
Applications
- Quality control of paint and coating production processes
- Laboratory viscosity analysis
- Oil and liquid viscosity testing
- Production process optimization
Included Accessories
- Paint Viscosity Tester PCE-RVI 8
- Sample pan
- Height adapter
- Spindle KU1
- Temperature sensor
- Stand
- Touchscreen pen
- Mains power adapter
- Transport case
- Instruction manual
Specifications
| Series | PCE-RVI Series |
| Display Size | 5" |
| Height | 16.54" |
| IO Interface | RS-232 |
| Length | 7.09" |
| Power Supply | 100/240V, 12V DC, Battery Powered |
| Safety Rating | CE, FCC, RoHS |
| Warranty | 2 Years |
| Width | 11.81" |
