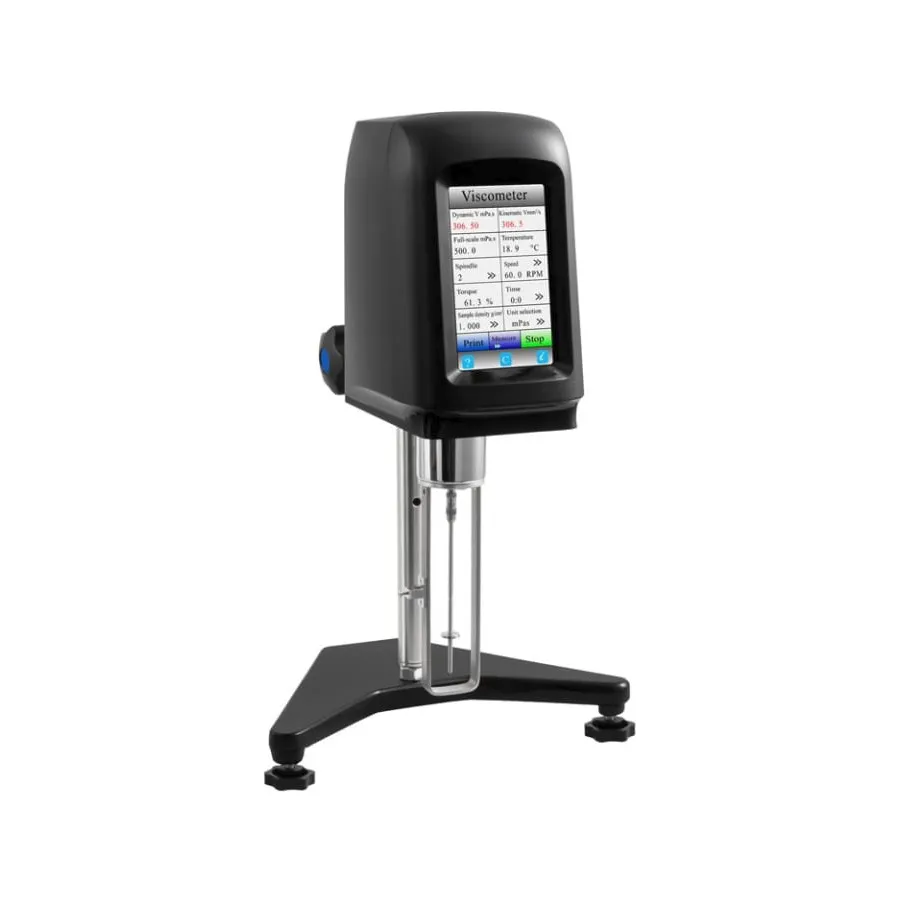

PCE Instruments PCE-RVI 10 Viscosity Meter with Touchscreen

Overview

The PCE-RVI 10 is a rotary viscometer designed for precise viscosity measurement of various liquids in industrial quality control applications. With an exceptional measuring range of 10 to 2,000,000 mPa·s and accuracy of ±1.0%, this viscometer accurately measures viscosity changes across different temperatures and shear rates.

Key Features

• Viscosity measuring range: 10–2,000,000 mPa·s (cP)
• Accuracy: ±1% of full scale (with Newtonian liquids)
• 8 rotation speeds: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm
• 5" color touchscreen with intuitive interface
• Immersion temperature sensor: 0–100°C (0–212°F)
• Spindle set: L1, L2, L3, L4 for different viscosity ranges
• Height adjustable approximately 25 cm for proper spindle positioning
• Built-in bubble level for precise leveling
• Height-adjustable feet for stable operation
• Multiple unit options: mPa·s, Pa·s, dPa·s, cP, P, cPs
• Timer function for independent operation
• RS232 interface for PC data transfer

Applications

• Quality control testing of oils and lubricants
• Viscosity profiling across temperature ranges
• Industrial liquid quality assessment
• Research and development of fluid properties

Included Accessories

• Temperature sensor
• Double open-end wrench
• Spindle set (L1, L2, L3, L4)
• Hard transport case
• Power supply
• Instruction manual
