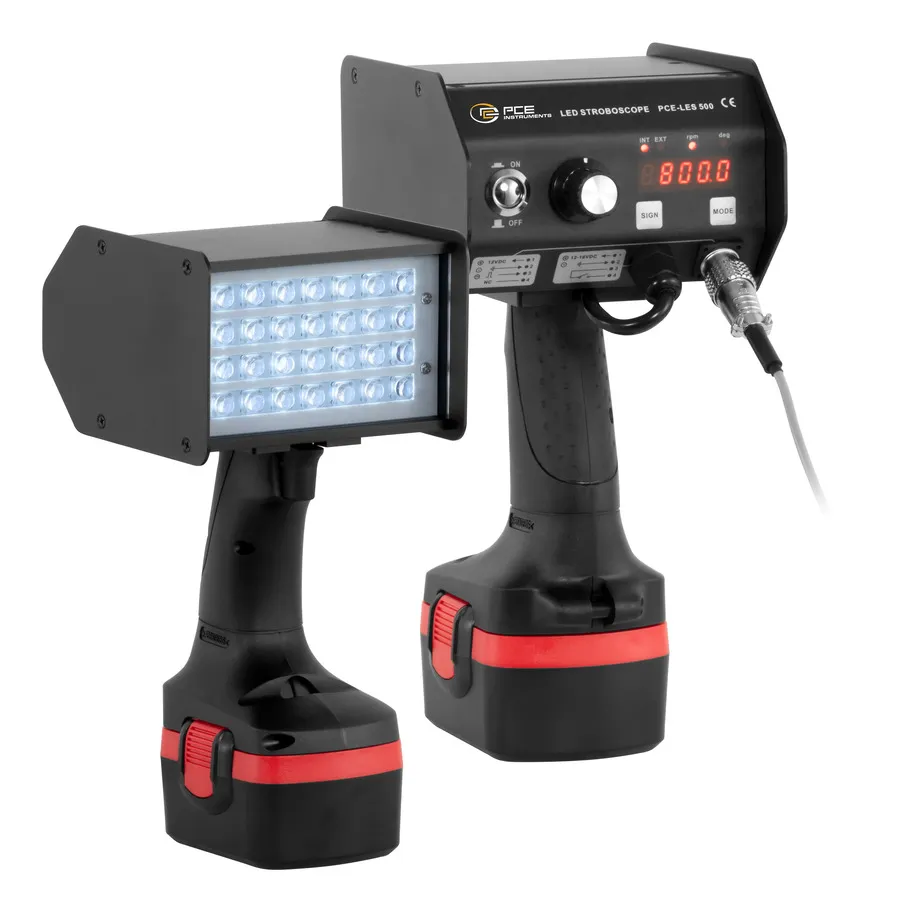

PCE Instruments PCE-LES 500 Portable LED-Stroboscope
Request a quote
PCE Instruments PCE-LES 500 is a portable hand-held LED-stroboscope with frequency range 50 to 50,000 FPM, 2439 lux illuminance, and 0.01% accuracy.
Product details
| Model | PCE-LES 500 |
| Manufacturer | PCE Instruments |
| Category | Dimensional Measuring Tools |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-LES 500 is a portable hand-held LED-stroboscope for maintenance and inspection of industrial equipment. With a frequency range of 50 to 50,000 FPM and 2439 lux illumination, it enables technicians to detect defects and verify operation during commissioning and maintenance.
Key Features
- Frequency range: 50 to 50,000 FPM with 0.1 FPM resolution and 0.01% accuracy
- 28 energy-efficient LED light source with 2439 lux illuminance @ 50,000 FPM / 20 cm
- Phase shift adjustment: 0 to 359°
- External trigger input for synchronized measurements
- Ergonomic handle for comfortable hand-held operation
- Robust metal housing for harsh industrial environments
- 2 removable rechargeable Ni-MH batteries (3000 mAh each)
- Suitable for measuring coils, flat sheets, and rotating objects
Applications
- Industrial maintenance and commissioning of equipment
- Quality control and defect detection in manufacturing
- Measuring steel and aluminum coils
- Flat sheet and rotating object inspection
- Vibration and motion analysis during operation
Included Accessories
- Ni-MH battery charger
- 2 Ni-MH 3000 mAh rechargeable batteries
- 4-pin coupling connector
- Rubber grommet
- External trigger sensor
- Carrying case
Specifications
| Series | LES Series |
| Accuracy | +/- 0.01% |
| Display Type | 7-segment display |
| Power Source | 14.4 V DC |
| Resolution | 0.1 FPM |
