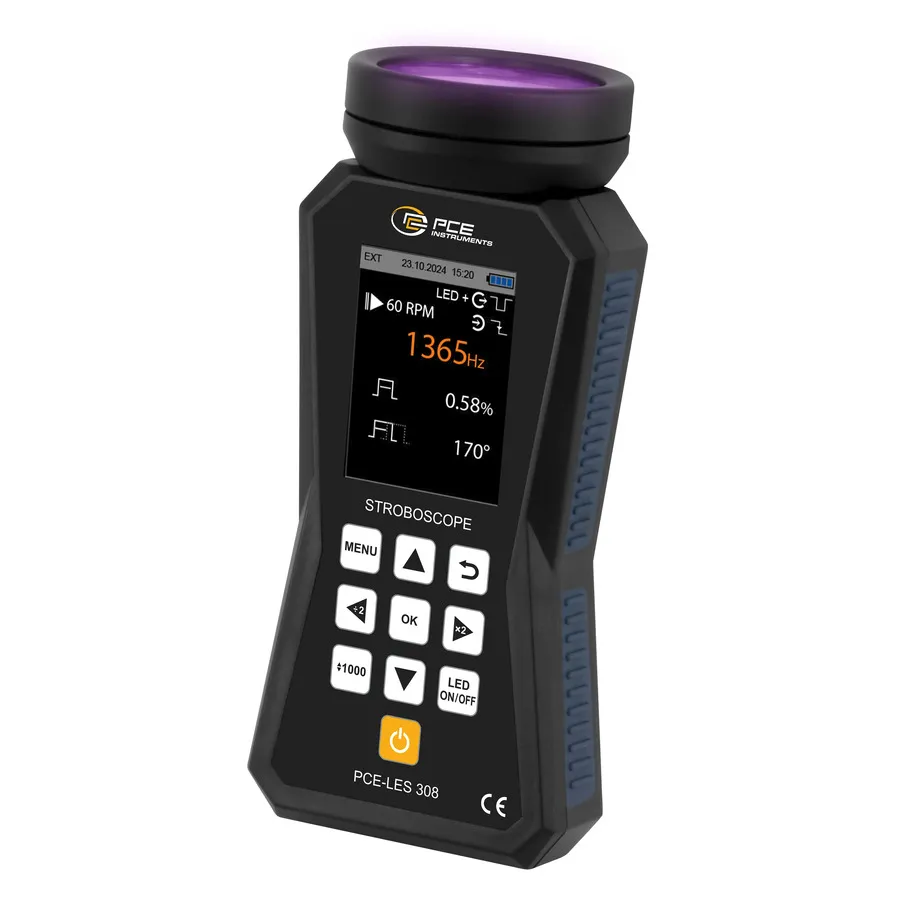

PCE Instruments PCE-LES 308UV-365 Stroboscope Light

Overview

The PCE-LES 308UV-365 is a specialized portable UVA stroboscope equipped with 8 high-power UVA LEDs emitting light in the 365-370 nm wavelength range. With an intensity of 1731 μW/cm² at 30 cm, it is designed for analyzing UV-sensitive applications and machinery in production and maintenance environments across industrial sectors.

Like other devices in the LES series, the PCE-LES 308UV-365 features intuitive 10-key control with adjustable flash frequency in both FPM and Hz. The pocket-sized design with rechargeable battery and 2.8-inch color LCD display provides clear feedback on all settings. It includes external trigger input/output for synchronization and route measurement mode for storing up to 15 routes with configurable settings.

Key Features

• 8 high-power UVA LEDs emitting 365-370 nm light at 1731 μW/cm² at 30 cm
• Flash frequency adjustable in FPM and Hz with quick x2 and ÷2 adjustment
• Digital pulse width modulation for controlling flash duration and intensity
• Phase shift range of -360° to +360° for variable observation point positioning
• Intuitive control with 10 keys and 2.8-inch color LCD display
• Pocket-sized design with rechargeable battery and 4-hour operating time
• External trigger input and output for synchronization
• Route measurement mode with storage for up to 15 routes
• Slow motion mode for detailed movement analysis

Applications

• UV-based analysis of rotating machinery in industrial production
• Inspection and maintenance of UV-sensitive equipment
• Non-contact speed and vibration measurement in UV wavelengths
• UV synchronization and performance verification

Included Accessories

• USB-C charging cable
• Quick start guide
• Service bag
