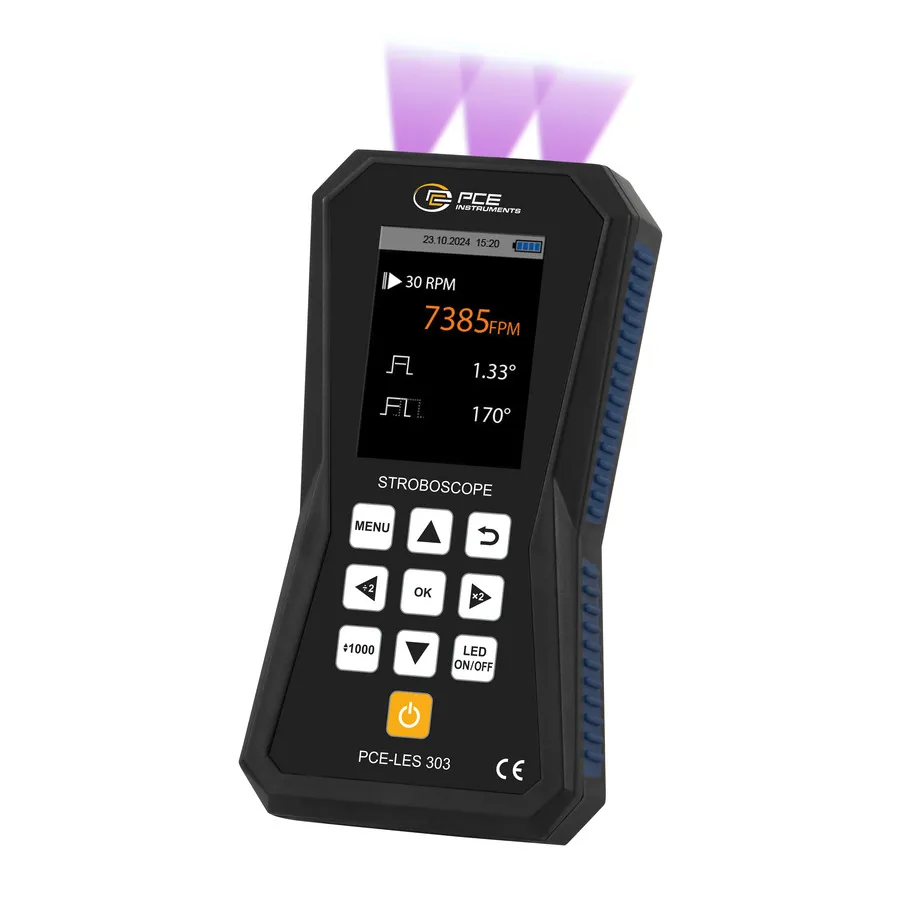

PCE Instruments PCE-LES 303UV-385 Stroboscope Light

Overview

The PCE Instruments PCE-LES 303UV-385 is a pocket-sized stroboscope with 3 high-power UVA LEDs operating at 365-370nm wavelength. It combines core stroboscopic measurement with sophisticated features including external trigger synchronization and route measurement mode for complex multi-point inspection workflows. The device is designed for production environments where repeatability and data consistency across multiple measurement points are essential.

Key Features

• 3 high-power UVA LEDs (365-370nm wavelength)
• Light intensity: 317 μW/cm² at 30 cm distance
• Flash frequency adjustable in FPM and Hz
• Digital pulse width modulation for intensity control
• Phase shift: -360° to +360° for flexible observation
• External trigger input/output for equipment synchronization
• Route measurement mode: store up to 15 routes with 10 machines per route
• Slow motion mode for detailed movement analysis
• Intuitive 10-key control with adjustable display brightness
• Rechargeable battery with USB-C charging

Advanced Functions

• Trigger Synchronization: Activate input trigger mode to synchronize LED flash frequency with external signals from sensors or control systems, enabling analysis of equipment movements triggered by automated processes.
• Route Measurement: Create and store predefined measurement configurations (frequency, duty cycle, phase shift) and navigate through multiple points without manual reconfiguration. Each route can contain up to 10 machines with up to 5 observation points per machine.
• Output Trigger Mode: Generate a PWM control signal for external equipment based on selected frequency, duty cycle, and phase shift parameters.

Applications

• Production monitoring in printing, textile, and general manufacturing industries
• Equipment analysis with integrated sensor signal synchronization
• Multi-point facility inspections with consistent measurement parameters
• Vibration and rotation analysis of industrial machinery

Included Accessories

• USB-C charging cable
• Quick start guide
• Service bag
