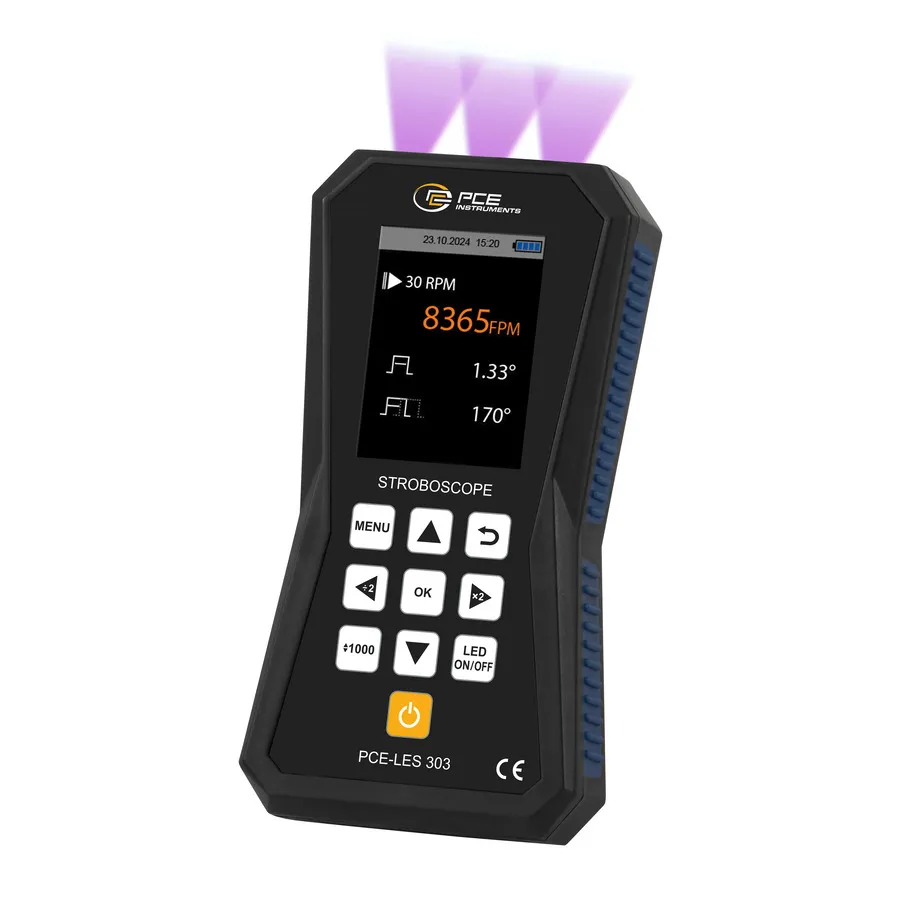

PCE Instruments PCE-LES 303UV-365 Stroboscope Light
Request a quote
PCE Instruments PCE-LES 303UV-365 is a portable stroboscope with 3 UVA LEDs, external trigger capability, and route measurement mode for industrial machinery monitoring.
Product details
| Model | PCE-LES 303UV-365 |
| Manufacturer | PCE Instruments |
| Category | Dimensional Measuring Tools |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-LES 303UV-365 is a pocket-sized stroboscope with 3 high-power UVA LEDs operating at 365-370nm wavelength. It combines core stroboscopic functionality with advanced features including external trigger inputs/outputs for synchronization and route measurement mode for storing multiple observation points. This makes it ideal for complex production monitoring tasks where precise frequency control and data consistency across multiple measurement points are critical.
Key Features
- 3 high-power UVA LEDs (365-370nm wavelength)
- Light intensity: 1731 μW/cm² at 30 cm distance
- Flash frequency adjustable in FPM and Hz
- Digital pulse width modulation for intensity control
- Phase shift: -360° to +360° for flexible observation
- External trigger input/output for synchronization with equipment signals
- Route measurement mode: store up to 15 routes with 10 machines per route
- Slow motion mode for detailed movement analysis
- Intuitive 10-key control with adjustable display brightness
- Rechargeable battery with USB-C charging
Advanced Functions
- Trigger Synchronization: When input trigger mode is activated, the device synchronizes LED flash frequency to an external signal, allowing analysis of equipment movements triggered by sensors or control systems.
- Route Measurement: Store predefined measurement configurations (frequency, duty cycle, phase shift) and navigate through them without manual adjustment at each point. Supports up to 15 routes with multiple machines and points per machine.
- Output Trigger Mode: Generate a PWM signal for controlling external equipment based on the selected frequency, duty cycle, and phase shift.
Applications
- Production monitoring and quality inspection in printing and textile industries
- Automated equipment analysis with sensor signal synchronization
- Multi-point machinery inspection with saved measurement configurations
- Maintenance and vibration analysis of rotating equipment
Included Accessories
- USB-C charging cable
- Quick start guide
- Service bag
Specifications
| Series | LES Series |
