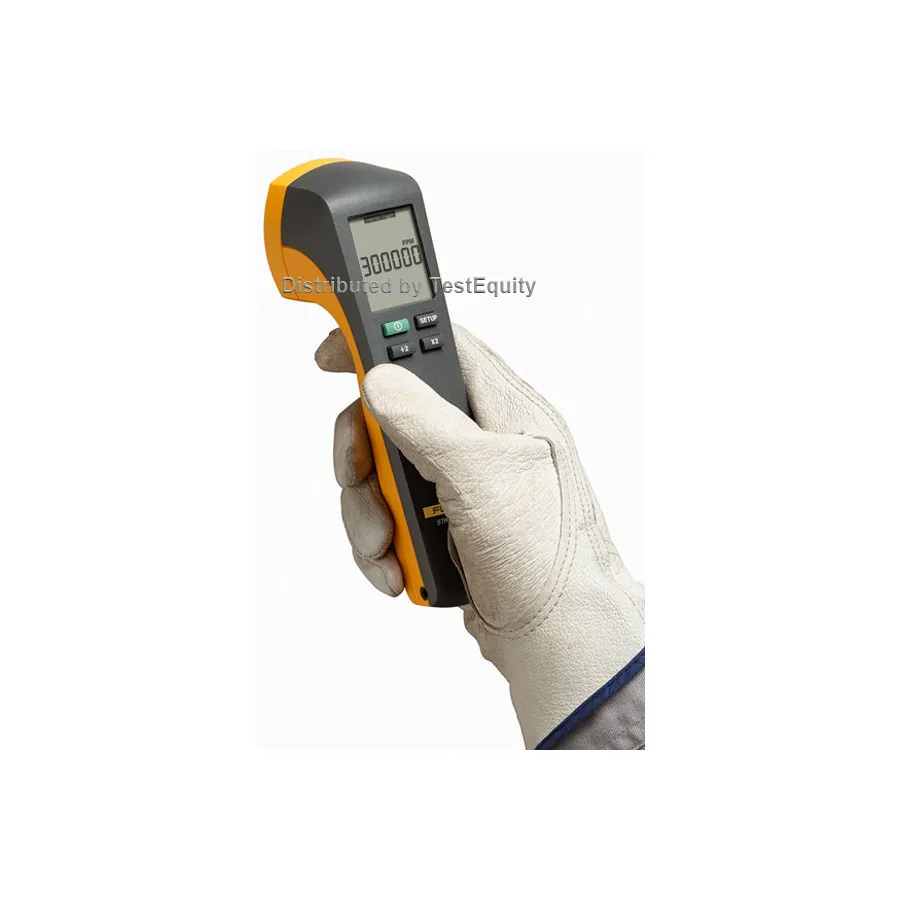

Fluke FLUKE-820-2 LED Stroboscope

Overview

The Fluke FLUKE-820-2 LED Stroboscope is a rugged, portable strobe designed for stop-motion diagnostics, mechanical troubleshooting, and product research. It allows clear observation of machinery in motion by slowing or stopping cyclic motion visually, enabling speed measurement, observation of dynamic motion, detection of flaws or slippage, and identification of markings without making physical contact with the machine.

Key Features

• High-intensity 7-LED array providing 4,800 Lux @ 6,000 FPM/30cm
• Flash range: 30 to 300,000 FPM (flashes per minute)
• Quartz-accuracy control system: ±0.02% (±1 digit) accuracy
• Digital pulse width modulation for sharp images at high speeds
• Adjustable flash duration for high-speed applications
• Advance or retard flash timing for viewing gear teeth or drifting equipment
• Multi-line LCD display with simple push button operation
• 2x and ÷2 buttons for easy speed adjustment
• Rugged design survives one-meter drop
• Two-year warranty

Applications

• Belt-driven machines: HVAC fans and pumps
• Bearing, shaft, and gear teeth inspection
• Clutch and cogwheel assessment
• Foundation resonance vibration detection
• Cable or piping wear and damage inspection
• Mixing and dosage process monitoring
• Variable-speed turbine and drive motor analysis
• Belt rotation speed measurement and slippage detection
• RPM measurement and frequency investigation
• Stop-motion diagnostic photography and videography

Included Accessories

• Protective case
• External trigger connector
