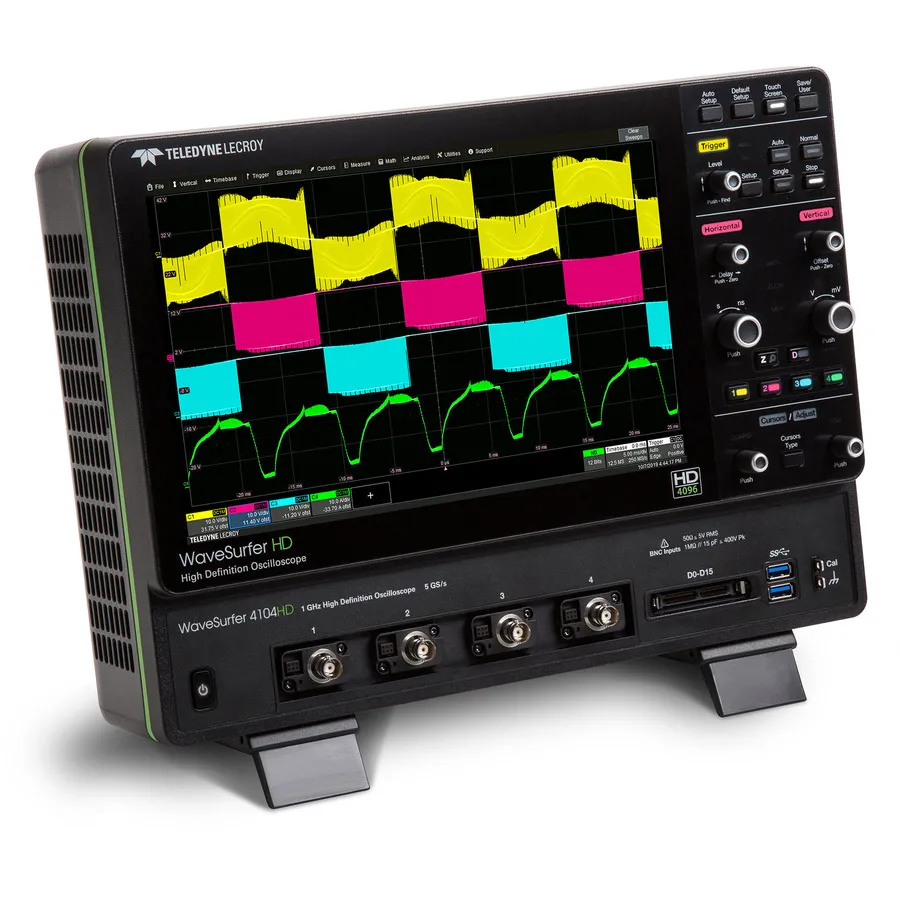

Teledyne LeCroy WAVESURFER 4104HD PROMO1 MSO Oscilloscope
Request a quote
Teledyne LeCroy WAVESURFER 4104HD PROMO1 — 1GHz, 12-bit high-resolution oscilloscope with 5GS/s sampling, 25Mpts memory, and MSO probe bundle included.
Product details
| Model | WAVESURFER 4104HD PROMO1 |
| Manufacturer | Teledyne LeCroy |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy WAVESURFER 4104HD PROMO1 is a 1GHz, 12-bit high-resolution 4-channel oscilloscope with integrated mixed-signal measurement capability. It features a 12.1-inch capacitive touch screen interface, up to 25 Mpts of memory, and comprehensive multi-instrument capabilities.
The PROMO1 bundle includes all analysis software options and an MSO probe, providing a complete solution for mixed-signal debugging and analysis applications.
Key Features
- 1 GHz bandwidth
- 4 channels
- 5 GS/s maximum sample rate
- 12-bit HD4096 high-definition technology for superior measurement performance
- Up to 25 Mpts deep memory
- 12.1-inch capacitive touch screen with OneTouch interface
- Mixed-signal measurement with MSO probe included
- Complete software analysis suite for power, spectrum, and protocol debugging
Applications
- High-speed digital signal analysis and debugging
- Mixed-signal and embedded systems measurement
- Power rail and supply monitoring analysis
- Serial protocol debugging (CAN, I2C, SPI, high-speed interfaces)
- Frequency domain analysis and spectral measurements
Included Accessories
- MSO Probe
- All analysis software options
Specifications
| Bandwidth | 1 GHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sampling Rate | 5 GS/s |
| Memory | 12.5 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 12.1 Capacitive Color Touch |
| Series | 4000HD Series |
