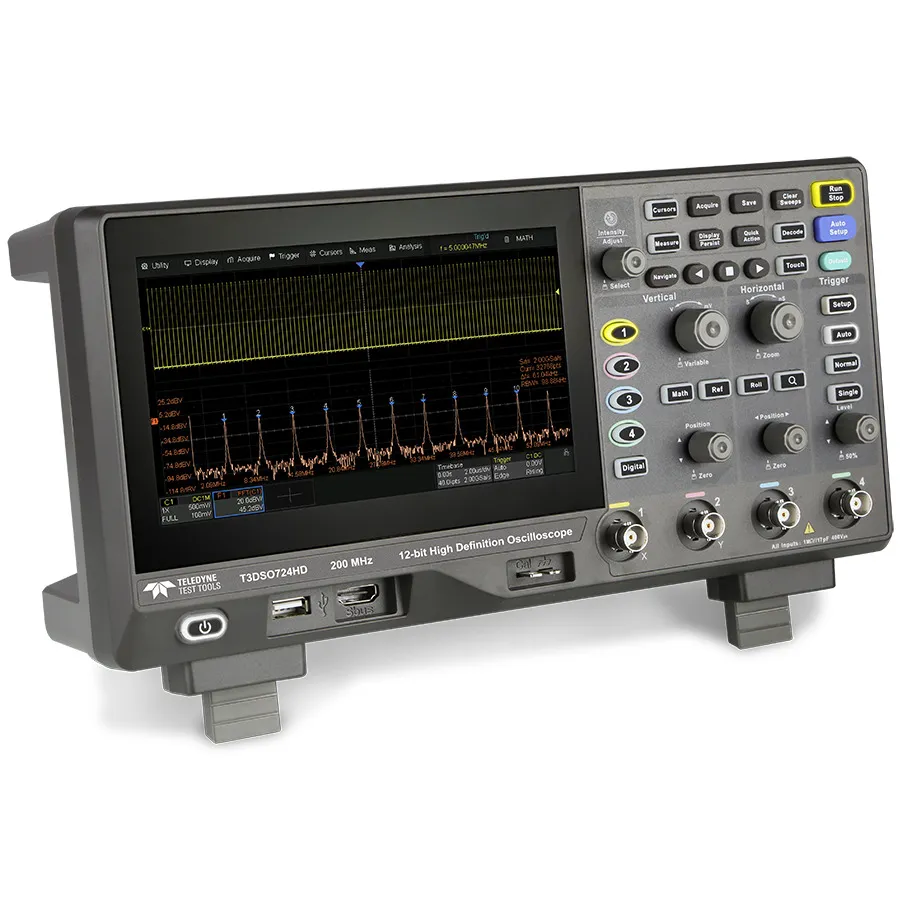

Teledyne LeCroy T3DSO724HD Digital Oscilloscope

Overview

The Teledyne LeCroy T3DSO724HD is a 200 MHz digital oscilloscope with 2 GS/s sample rate and 12-bit ADC resolution. With 100 Mpts/channel record length and waveform capture speeds up to 500,000 wfm/s in sequence mode, this scope handles complex mixed-signal applications. The intuitive 7-inch capacitive touch display with multi-touch gestures and comprehensive triggering options make it ideal for advanced R&D, debugging, and signal integrity work.

Key Features

• 200 MHz analog bandwidth, 2 GS/s maximum sample rate
• 12-bit ADCs with 70 μVrms noise floor @ 200 MHz
• 100 Mpts/channel record length
• Waveform capture up to 500,000 wfm/s in sequence mode
• Serial bus triggering and decoding: I²C, SPI, UART, CAN, LIN
• Optional 16-channel digital analyzer for MSO capability
• 50+ automatic measurements with statistics and gating functions
• 4 math traces with FFT, filtering, and algebraic operations
• Optional 25 MHz arbitrary waveform generator
• 7-inch multi-touch capacitive display with 256-level intensity grading
• Connectivity: USB Host, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket)
• Remote control via web server and SCPI commands

Applications

• Mixed-signal circuit design and verification
• High-speed digital signal analysis
• Serial protocol debugging and validation
• Power supply and switching frequency measurements
• Signal integrity and timing analysis

Included Accessories

• 4 passive probes
• USB cable
• Power cord
• Quick Start Guide
• Certificate of Calibration
