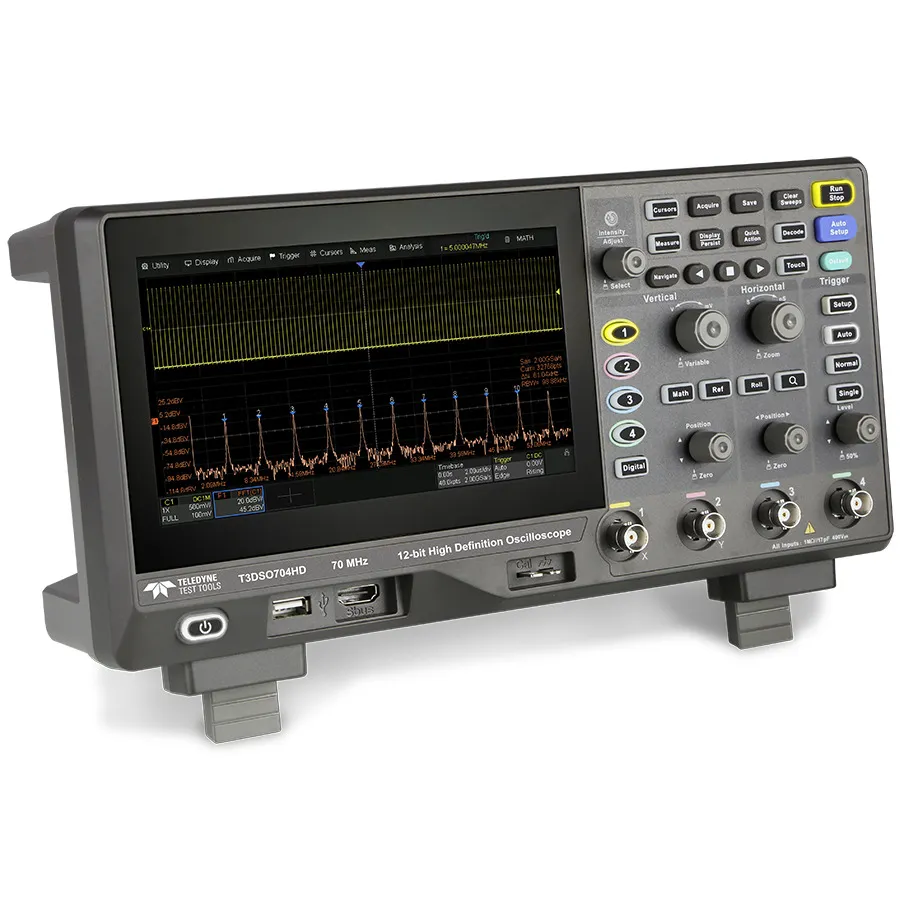

Teledyne LeCroy T3DSO704HD Digital Oscilloscope

Overview

The Teledyne LeCroy T3DSO704HD is a versatile 70 MHz digital oscilloscope with 2 GS/s sample rate and 12-bit resolution. Offering 100 Mpts/channel record length and up to 120,000 waveforms/s capture rate in normal mode, this instrument is designed for field service, research, and industrial maintenance applications. The 7-inch capacitive touch display with multi-touch support provides intuitive operation and can reach 500,000 wfm/s in sequence mode.

Key Features

• 70 MHz analog bandwidth, 2 GS/s maximum sample rate
• 12-bit ADCs with 70 μVrms noise floor
• 100 Mpts/channel record length
• Waveform capture up to 500,000 wfm/s in sequence mode
• Serial bus triggering and decoding: I²C, SPI, UART, CAN, LIN
• Optional 16-channel digital analyzer for MSO capability
• 50+ automatic measurements with statistics and gating functions
• 4 math traces with FFT, filtering, and algebraic operations
• Optional 25 MHz arbitrary waveform generator
• 7-inch multi-touch capacitive display with 256-level intensity grading
• Connectivity: USB Host, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket)
• Remote control via web server and SCPI commands

Applications

• Field testing and equipment troubleshooting
• General-purpose circuit analysis and verification
• Educational and training environments
• Serial protocol debugging on embedded systems

Included Accessories

• 4 passive probes
• USB cable
• Power cord
• Quick Start Guide
• Certificate of Calibration
