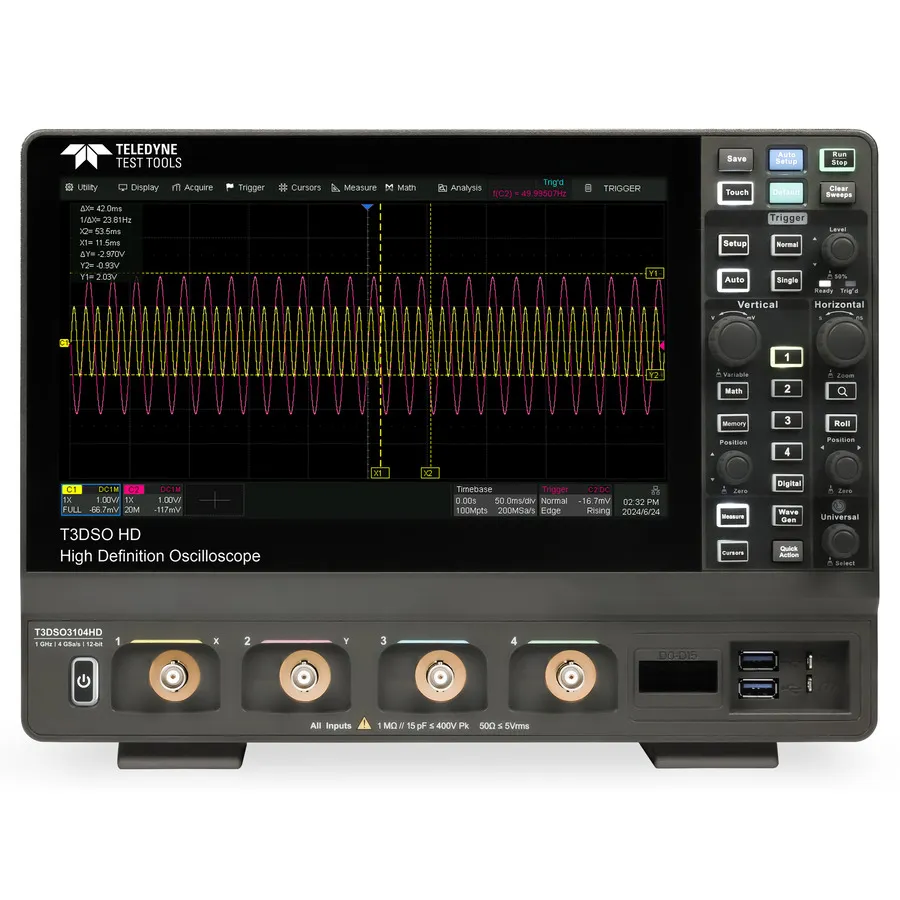

Teledyne LeCroy T3DSO3104HD Digital Oscilloscope

Overview

The Teledyne LeCroy T3DSO3104HD is a high-performance digital oscilloscope with 1 GHz bandwidth and up to 4 GS/s sample rate. Featuring 12-bit ADCs and 400 Mpts/channel record length, this instrument excels at complex waveform capture and analysis. The large 10.1-inch capacitive touch display delivers up to 200,000 waveforms/s in normal mode and 890,000 wfm/s in sequence mode.

Key Features

• 1 GHz bandwidth, 4 GS/s maximum sample rate
• 12-bit ADCs with <125 μVrms noise floor and 0.5% DC gain accuracy
• 400 Mpts/channel record length
• Waveform capture up to 890,000 wfm/s in sequence mode
• Serial bus triggering and decoding: I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MILSTD-1553B, SENT, Manchester, ARINC429
• Optional 16-channel digital logic probe for MSO capability
• 50+ automatic measurements with statistics and gating functions
• 4 math traces with FFT, filtering, and algebraic operations
• Optional 50 MHz arbitrary waveform generator
• 10.1-inch multi-touch display with 256-level intensity grading
• Connectivity: 2x USB 3.0 Host, 1x USB 2.0 Host, USB 3.0 Device, 1000M LAN
• Remote control via built-in web server and SCPI commands

Applications

• Research and development of analog and mixed-signal circuits
• High-speed digital and communication signal verification
• Serial protocol analysis and embedded system debugging
• Signal integrity and compliance testing

Included Accessories

• 4 passive probes
• USB cable
• Power cord
• Wireless mouse
• Quick Start Guide
• Certificate of Calibration
