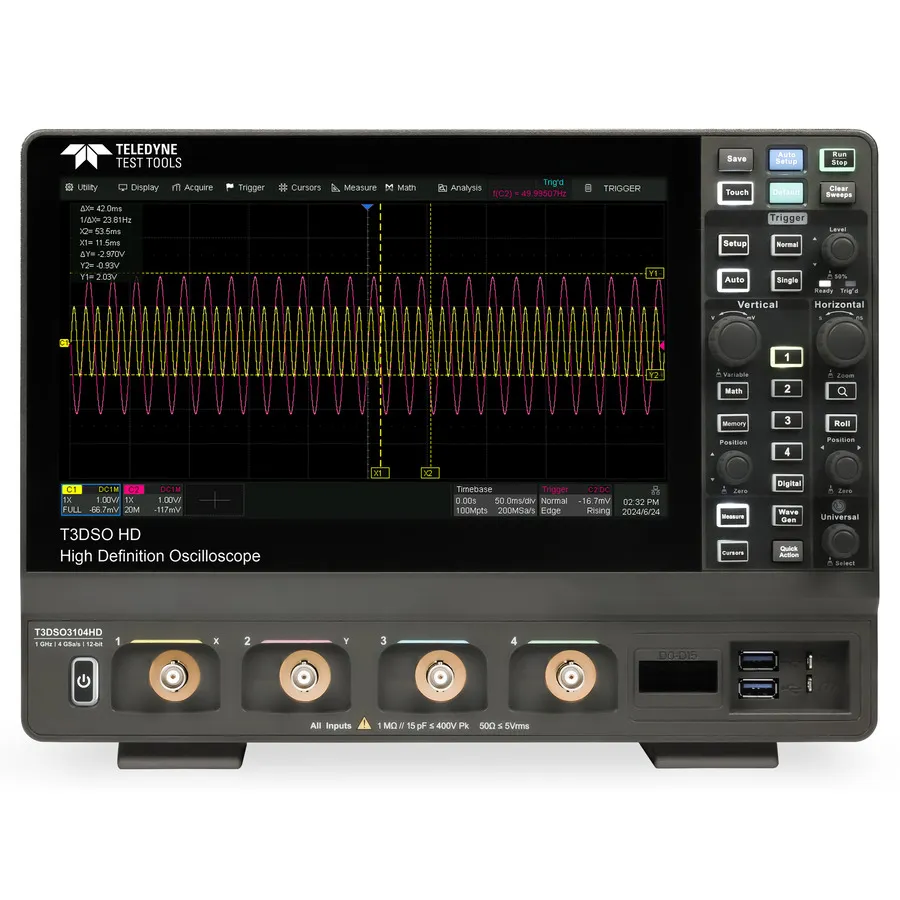

Teledyne LeCroy T3DSO3034HD Digital Oscilloscope

Overview

The Teledyne LeCroy T3DSO3034HD is a 4-channel mixed-signal oscilloscope from the T3DSO3000HD series with 350 MHz bandwidth and 4 GS/s sample rate. Featuring 12-bit analog-to-digital conversion, 400 Mpts memory depth, and waveform capture rates up to 200,000 frames/s (normal mode), this instrument excels at high-speed signal characterization and analysis. Optional 16-channel logic probe support enables comprehensive mixed-signal debugging, while extensive protocol decoding and powerful measurement tools make it essential for complex electronics development, validation, and troubleshooting.

Key Features

• 4 analog channels with 350 MHz bandwidth, 4 GS/s sample rate, 12-bit ADC
• Optional 16 digital logic channels for mixed-signal analysis
• Up to 400 Mpts record length per channel
• Waveform capture up to 200,000 wfm/s (normal) or 890,000 wfm/s (sequence mode)
• Serial protocol support: I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester, ARINC429
• 256-level intensity grading and color temperature display modes
• History waveform recording (up to 80,000 frames)
• 50+ automatic measurements with statistics and gating
• 4 Math traces with FFT, filters, and formula editor
• Optional 50 MHz arbitrary waveform generator
• Interfaces: 2× USB 3.0 Host, 1× USB 2.0 Host, USB 3.0 Device (USBTMC), 1000M LAN (VXI-11/Telnet/Socket/LXI), external trigger
• 10.1" capacitive touch screen with multi-touch support
• Remote control via built-in web server

Applications

• High-frequency signal analysis and characterization
• Serial protocol debugging and validation
• Power analysis and integrity measurements
• Signal integrity and timing measurements
• Automotive, industrial, and aerospace electronics testing
• Advanced bench and production testing

Included Accessories

• 4× Passive probe
• USB cable
• Power cord
• Wireless mouse
• Quick Start Guide
• Certificate of Calibration
