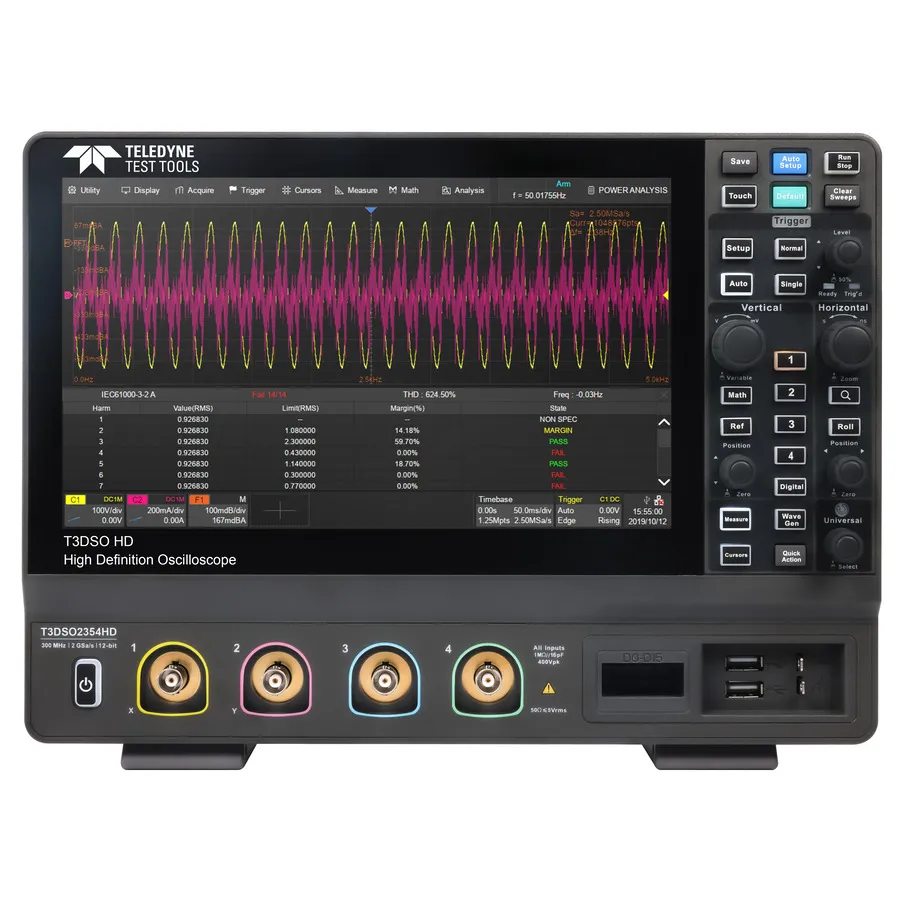

Teledyne LeCroy T3DSO2354HD Digital Oscilloscope

Overview

The Teledyne LeCroy T3DSO2354HD is a high-bandwidth 4-channel digital oscilloscope designed for advanced signal analysis and high-frequency measurements. With 350 MHz analog bandwidth, 2 GS/s sample rate, and up to 200 Mpts record length per channel, it is well-suited for testing high-speed circuits and fast signal transitions. The 12-bit ADC and low-noise front end provide the precision needed for detailed signal characterization across demanding measurement applications.

Key Features

• 4 analog channels with 350 MHz bandwidth
• 12-bit ADCs with up to 2 GS/s sample rate
• Up to 200 Mpts/ch record length
• Low-noise front end: 70 μVrms noise floor, 0.5% DC gain accuracy
• Waveform capture rate up to 100,000 wfm/s (normal) or 500,000 wfm/s (sequence mode)
• Serial bus triggering and decoding (I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester)
• 50+ automatic measurements with histogram and statistics
• History waveform recording with up to 80,000 frames
• Built-in 25 MHz arbitrary waveform generator
• Hardware-based mask test and pass/fail measurement
• 10.1" capacitive touchscreen with multi-touch gestures
• Remote control via USB, LAN (VXI-11), and web browser

Applications

• High-speed circuit testing and characterization
• Broadband signal analysis and measurement
• Fast transient capture and analysis
• Serial protocol analysis at high frequencies
• Signal integrity and jitter measurement
