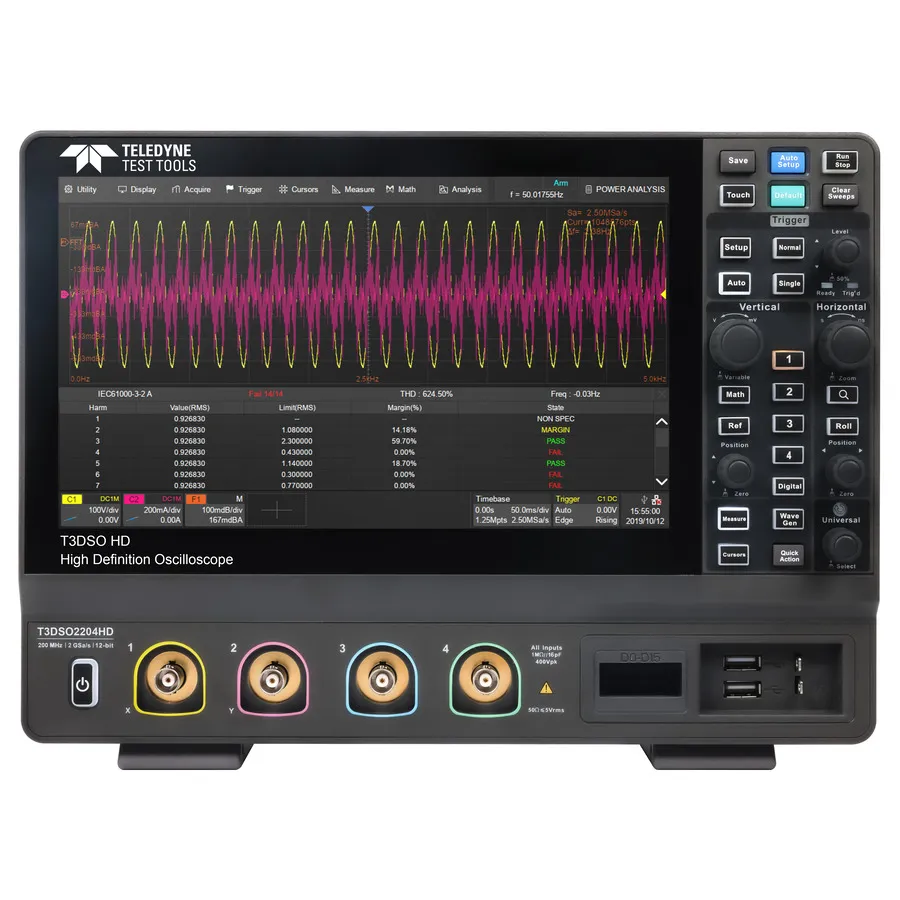

Teledyne LeCroy T3DSO2204HD Digital Oscilloscope

Overview

The Teledyne LeCroy T3DSO2204HD is a 4-channel digital oscilloscope designed for general-purpose signal measurement and analysis. With 200 MHz analog bandwidth, 2 GS/s sample rate, and up to 200 Mpts record length per channel, it provides sufficient resolution for most analog measurement applications. The 12-bit ADC and low-noise front end ensure accurate signal capture across a wide range of frequencies and signal levels.

Key Features

• 4 analog channels with 200 MHz bandwidth
• 12-bit ADCs with up to 2 GS/s sample rate
• Up to 200 Mpts/ch record length
• Low-noise front end: 70 μVrms noise floor, 0.5% DC gain accuracy
• Waveform capture rate up to 100,000 wfm/s (normal) or 500,000 wfm/s (sequence mode)
• Serial bus triggering and decoding (I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester)
• 50+ automatic measurements with histogram and statistics
• History waveform recording with up to 80,000 frames
• Built-in 25 MHz arbitrary waveform generator
• Hardware-based mask test and pass/fail measurement
• 10.1" capacitive touchscreen with multi-touch gestures
• Remote control via USB, LAN (VXI-11), and web browser

Applications

• Analog circuit testing and validation
• Signal acquisition and waveform analysis
• Serial protocol analysis and decoding
• Automated pass/fail testing
• Electronics research and development
