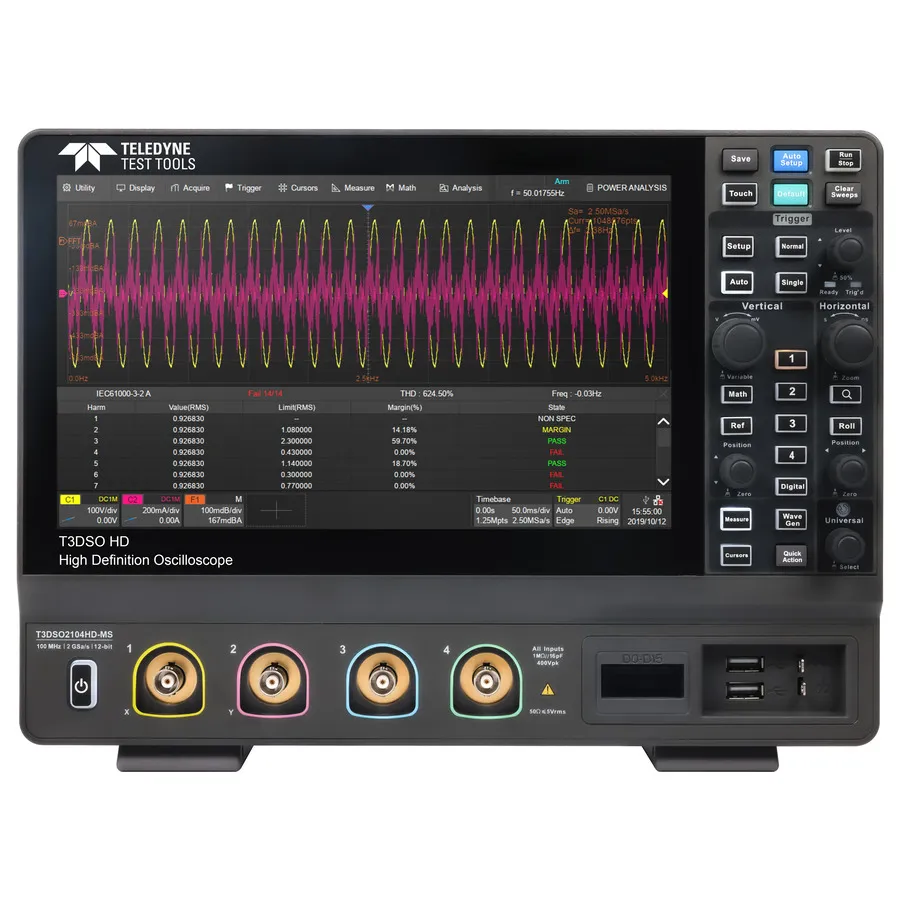

Teledyne LeCroy T3DSO2104HD-MS Mixed Signal Oscilloscope

Overview

The Teledyne LeCroy T3DSO2104HD-MS is a 4-channel mixed signal oscilloscope combining analog and digital measurement capabilities. The MSO configuration includes 4 analog channels with 100 MHz bandwidth and 16 digital logic channels, ideal for testing both analog and digital signal paths in complex electronics. With a 12-bit ADC, 2 GS/s sample rate, and up to 200 Mpts record length per channel, it delivers the resolution and memory depth required for detailed signal analysis and measurement.

Key Features

• 4 analog channels with 100 MHz bandwidth
• 16 digital channels (MSO configuration)
• 12-bit ADCs with up to 2 GS/s sample rate
• Up to 200 Mpts/ch record length
• Low-noise front end: 70 μVrms noise floor, 0.5% DC gain accuracy
• Serial bus triggering and decoding (I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester)
• Waveform capture rate up to 100,000 wfm/s (normal) or 500,000 wfm/s (sequence mode)
• 50+ automatic measurements with histogram, trend, and statistical analysis
• History waveform recording with up to 80,000 frame capacity
• Built-in 25 MHz arbitrary waveform generator
• Hardware-based mask test and pass/fail measurement
• 10.1" capacitive touchscreen with multi-touch gestures
• Remote control via USB, LAN (VXI-11), and web browser

Applications

• Mixed-signal circuit design and debugging
• Serial protocol analysis and decoding
• Signal integrity and timing analysis
• Automated measurement and pass/fail testing
• Embedded system development and verification
