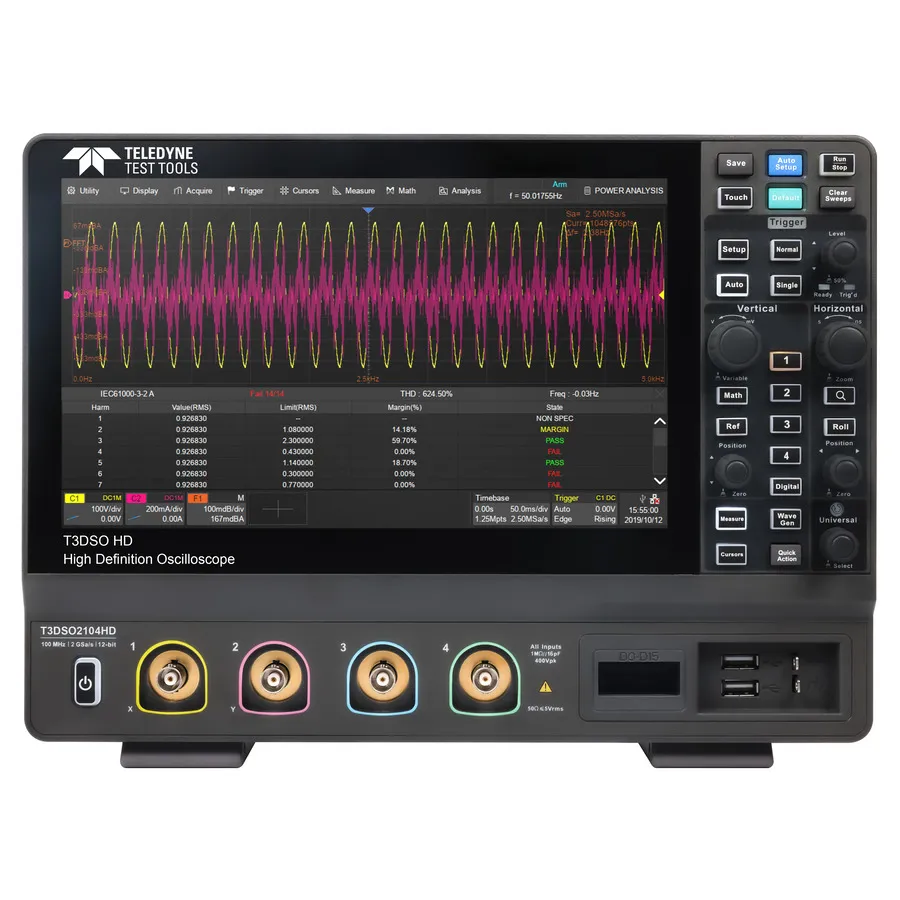

Teledyne LeCroy T3DSO2104HD Digital Oscilloscope

Overview

The Teledyne LeCroy T3DSO2104HD is a 4-channel bench oscilloscope in the T3DSO2000HD series with 100 MHz bandwidth and 12-bit analog-to-digital converters capable of up to 2 GSa/s sampling. With a maximum record length of 200 Mpts, a built-in 25 MHz waveform generator, and a 10.1" capacitive touchscreen display, this oscilloscope is designed for comprehensive signal analysis, protocol decoding, and flexible remote operation.

Key Features

• 12-bit Analog-Digital Converters with sample rate up to 2 GSa/s
• 70 μVrms noise floor @ 500 MHz bandwidth with 0.5% DC gain accuracy
• 4 analog channels, up to 350 MHz bandwidth
• Waveform capture rate up to 100,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode)
• 256-level intensity grading and color temperature display modes
• Up to 200 Mpts/ch record length
• Serial bus triggering and decoder supporting I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, and Manchester
• 16 digital channels (optional on DSO models, standard on MS models)
• History waveform recording with up to 80,000 frames maximum
• Automatic measurements on 50+ parameters with histogram, track, trend, and gating
• 2 Math traces with 2 Mpts FFT and formula editor
• Hardware-based Average, ERES, and Mask Test with Mask Editor
• Built-in 25 MHz waveform generator
• 10.1" capacitive touchscreen with multi-touch gesture support
• Interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
• Built-in web server with SCPI remote control and external mouse/keyboard support

Applications

• Digital circuit debugging and signal analysis
• Serial protocol analysis and decoding (multiple protocols)
• Signal integrity and timing measurements
• Power supply and device characterization
• Manufacturing test and quality assurance
