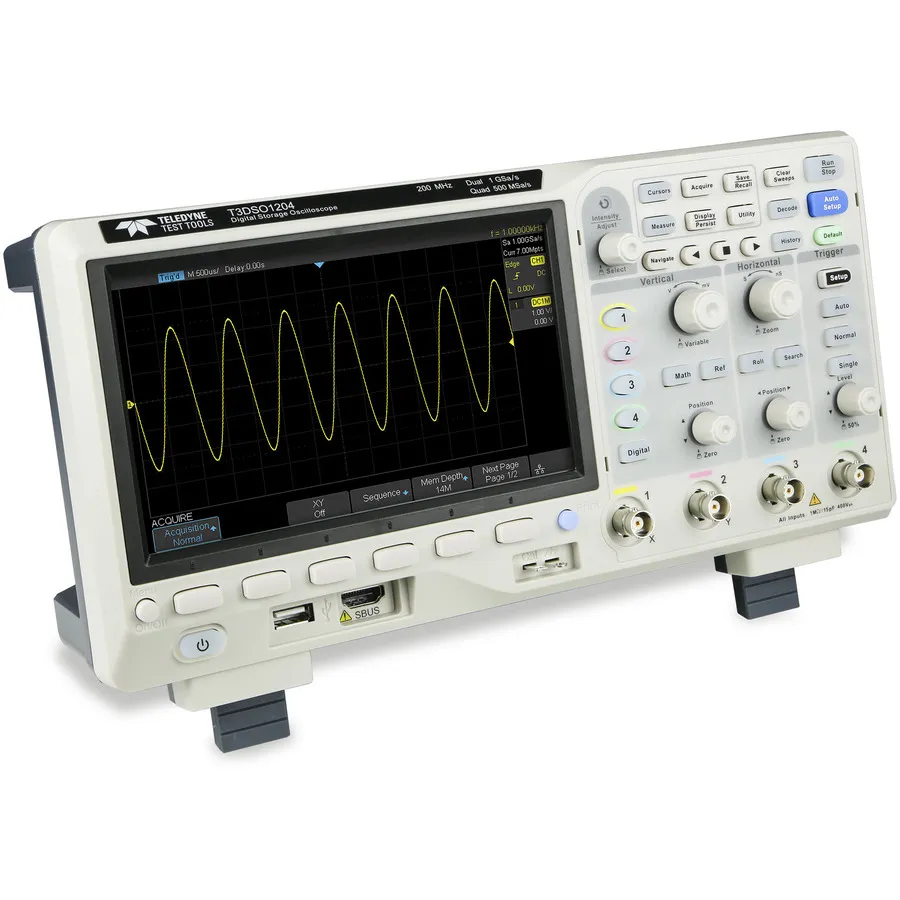

Teledyne LeCroy T3DSO1204 Digital Oscilloscope

Overview

The Teledyne LeCroy T3DSO1204 is a 4-channel 200 MHz oscilloscope in the T3DSO1000 series, featuring 1 GSa/s sampling rate with a flexible architecture that allows up to 14 Mpts record length per channel. With integrated serial bus triggering and decoding for I2C, SPI, UART, RS232, CAN, and LIN protocols, this oscilloscope is well-suited for embedded systems and protocol analysis.

Key Features

• 4-channel 200 MHz bandwidth oscilloscope
• Two 1 GSa/s ADCs with two 14 Mpts memory modules
• Standard record length of 7 Mpts (when all channels active), up to 14 Mpts (single channel per ADC)
• Waveform capture rate up to 400,000 wfm/s (sequence mode)
• 256-level Intensity Grading and Color Temperature Display modes
• History Waveforms (History) mode and Segmented Acquisition (Sequence) with up to 80,000 memory segments
• Gate and Zoom measurement capabilities for refined waveform analysis
• FFT, addition, subtraction, multiplication, division, integration, differential, and square root math functions
• Free enabled serial bus triggering and decoding: I2C, SPI, UART, RS232, CAN, LIN
• Search and Navigate functions for waveform inspection
• Bode plot analysis (on-screen)
• 16 digital channels (optional)
• USB powered 25 MHz AWG module (optional)
• USB WiFi adapter (optional)
• 7" Color Display with user-friendly front panel design

Applications

• Serial protocol analysis and debugging
• Embedded systems development and testing
• Digital signal analysis and characterization
• Low-probability event capture with high waveform rate
• Educational and development bench testing
