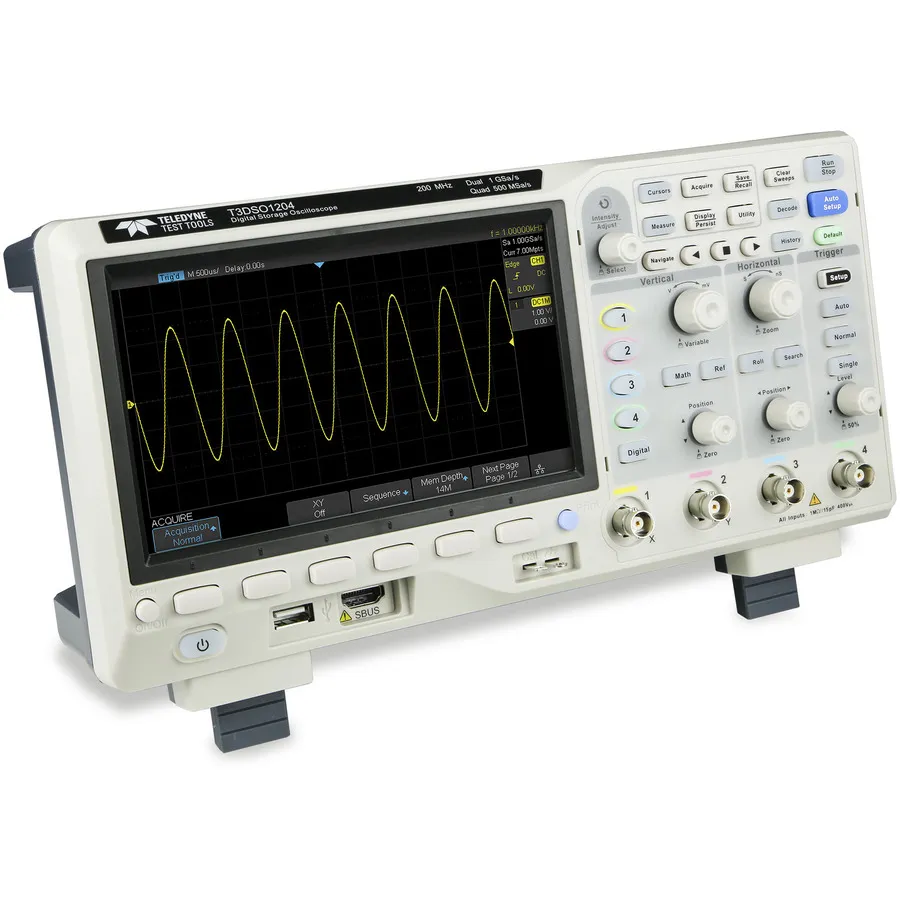

Teledyne LeCroy T3DSO1104 Digital Oscilloscope
Teledyne LeCroy T3DSO1104 is a 4-channel digital oscilloscope with 100 MHz bandwidth, 1 GSa/s sample rate, 7 Mpts memory per channel, and optional logic analyzer and AWG.
Product details
| Model | T3DSO1104 |
| Manufacturer | Teledyne LeCroy |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3DSO1104 is a 4-channel digital oscilloscope from the T3DSO1000 series, featuring 100 MHz analog bandwidth, dual 1 GSa/s ADCs, and dual 14 Mpts memory modules. When all channels are enabled, each channel operates at 500 MSa/s with 7 Mpts record length; single-channel operation provides up to 1 GSa/s sampling with 14 Mpts memory. It includes free enabled serial bus triggering and decode for I2C, SPI, UART, RS232, CAN, and LIN protocols, plus optional features such as 16 digital channels, external USB-powered 25 MHz AWG module, and USB WIFI adapter.
Key Features
- 4-channel analog input with 100 MHz bandwidth
- Dual 1 GSa/s ADCs with flexible channel/memory configuration
- Built-in serial bus triggering and decode (I2C, SPI, UART, RS232, CAN, LIN)
- Advanced math functions: FFT, addition, subtraction, multiplication, division, integration, differentiation, square root
- 256-level intensity grading and color temperature display
- History waveforms and segmented acquisition (up to 80,000 memory segments)
- Gate and zoom measurement capabilities
- On-screen Bode plot analysis
- Optional 16-channel digital logic analyzer
- Optional 25 MHz USB-powered arbitrary waveform generator (AWG)
- Optional USB WIFI adapter
- 7-inch color display with intuitive front-panel controls
Applications
- Multi-channel signal analysis and debugging
- Digital and mixed-signal circuit testing
- Serial protocol development and troubleshooting
- Production testing and quality assurance
- Frequency response analysis via Bode plots
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 1 GS/s |
| Memory | 7 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 7 TFT LCD Color |
| Series | 1000 Series |
