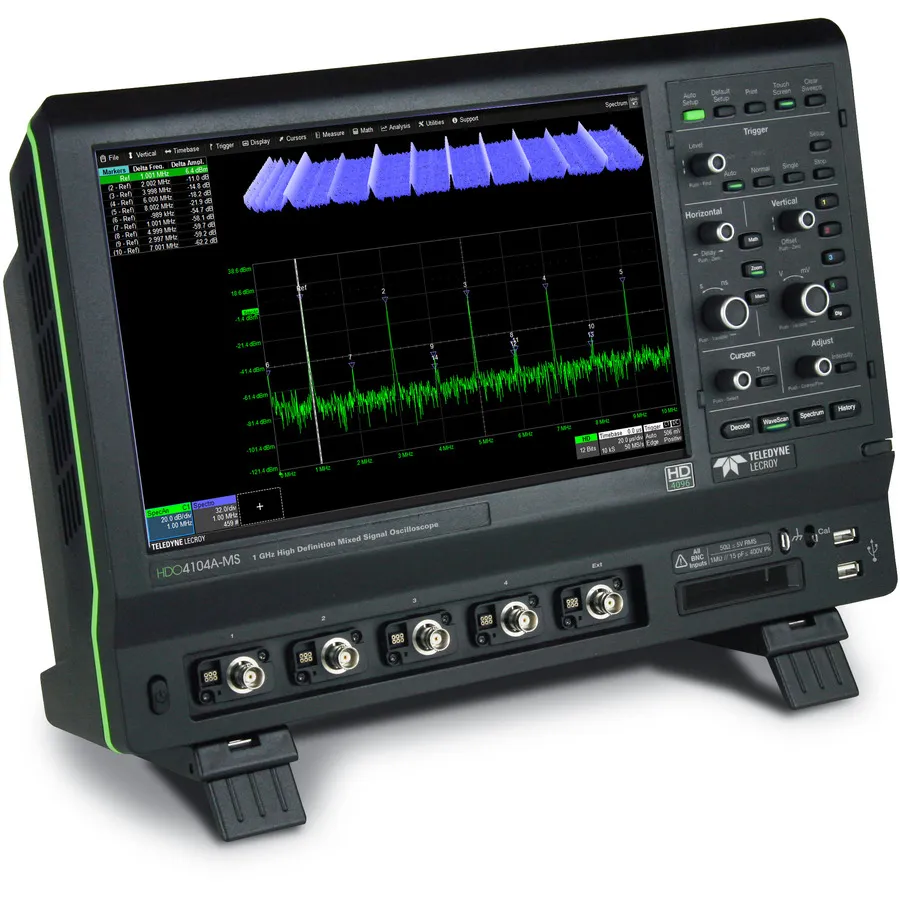

Teledyne LeCroy HDO4104A Digital Oscilloscope
Request a quote
Teledyne LeCroy HDO4104A is a 1GHz digital oscilloscope with 4 channels, 12-bit HD4096 resolution, and 10 GS/s sampling for power electronics and embedded systems.
Product details
| Model | HDO4104A |
| Manufacturer | Teledyne LeCroy |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy HDO4104A is a 1GHz digital oscilloscope with 4 channels and 12-bit vertical resolution powered by HD4096 high-definition technology. Delivering 10 GS/s sampling rates and 12.5 Mpts memory per channel, it provides detailed signal acquisition for precise debugging of complex electronic designs. The 12.1-inch multi-touch display and compact form factor optimize bench space while maintaining full measurement capability.
Key Features
- 4 analog input channels
- 1 GHz bandwidth with 10 GS/s sampling and 12.5 Mpts memory per channel
- 12-bit ADC resolution, up to 15 bits with enhanced mode
- HD4096 high-definition technology for superior waveform clarity
- ±10 V offset capability with high-gain settings
- Extended memory up to 50 Mpts per channel
- MAUI interface with OneTouch controls
- Comprehensive serial data analysis tools
Applications
- Power electronic design and troubleshooting
- Digital power management analysis
- Power integrity testing
- Automotive electronic system debugging
- Embedded and mechatronic system development
Specifications
| Bandwidth | 1 GHz |
| Analog Channels | 4 |
| Digital Channels | None |
| Sampling Rate | 10 GS/s |
| Memory | 12.5 Mpts |
| Type | DSO |
| Vertical Resolution | 12 bit |
| Display Type | 12.1 TFT WXGA Color Touch |
| Series | HDO4000 Series |
