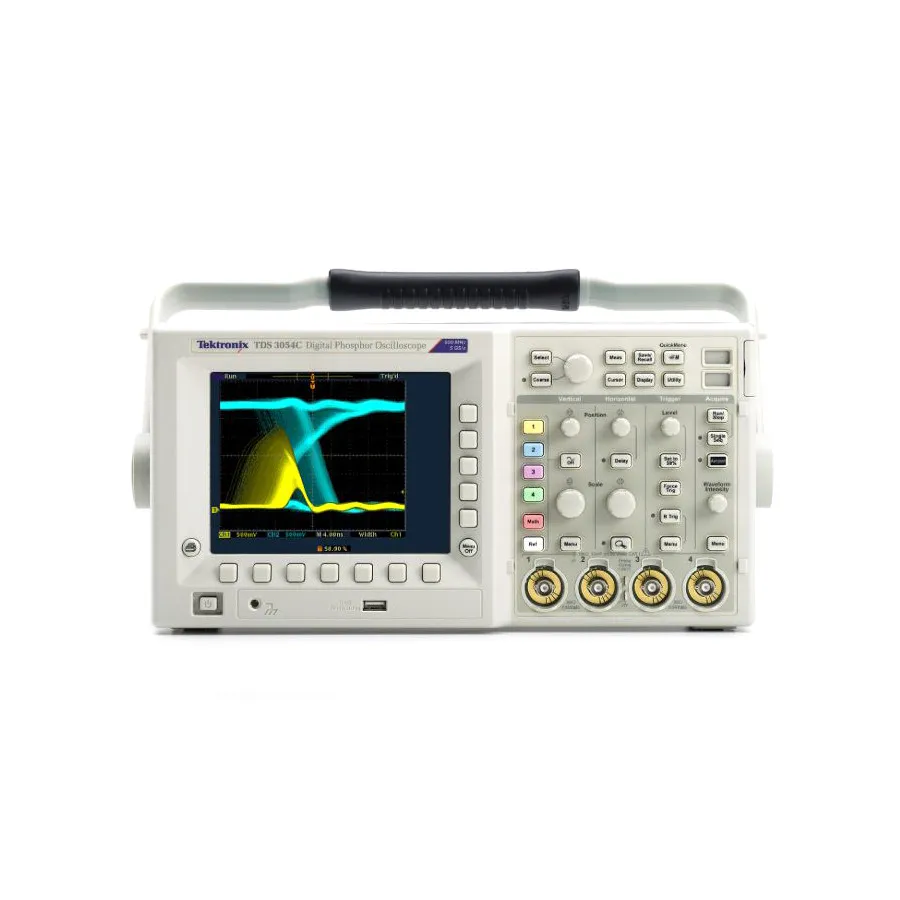

Tektronix TKX TDS3052C Digital Phosphor Oscilloscope

Overview

The Tektronix TDS3052C is a portable digital phosphor oscilloscope (DPO) designed for fast, accurate signal analysis across multiple channels. Its advanced real-time sampling technology and high waveform capture rate enable engineers to quickly identify signal anomalies and debug complex circuits. The lightweight design and optional battery operation make it ideal for field service and portable measurement applications.

Key Features

• Bandwidth options: 100 MHz, 300 MHz, and 500 MHz models
• Channel options: 2 or 4 analog channels
• Real-time sample rates up to 5 GS/s on all channels
• 10k record length per channel
• High waveform capture rate: 3,600 waveforms/second
• Digital real-time (DRT) sampling technology with sin(x)/x interpolation
• Advanced trigger suite for complex signal isolation
• Real-time intensity grading reveals signal history and activity
• 25 automatic measurements
• FFT analysis standard
• WaveAlert automatic waveform anomaly detection
• TekProbe interface supports active, differential, and current probes
• Front-panel USB host port for data storage and transfer
• Multiple language user interface
• Lightweight design (7 lb / 3.2 kg) for easy transport
• Optional internal battery for up to 3 hours operation

Applications

• Digital design and debug
• Video installation and service
• Power supply design and testing
• Education and training
• Telecommunications mask testing
• Manufacturing and production test
• General bench testing and service
