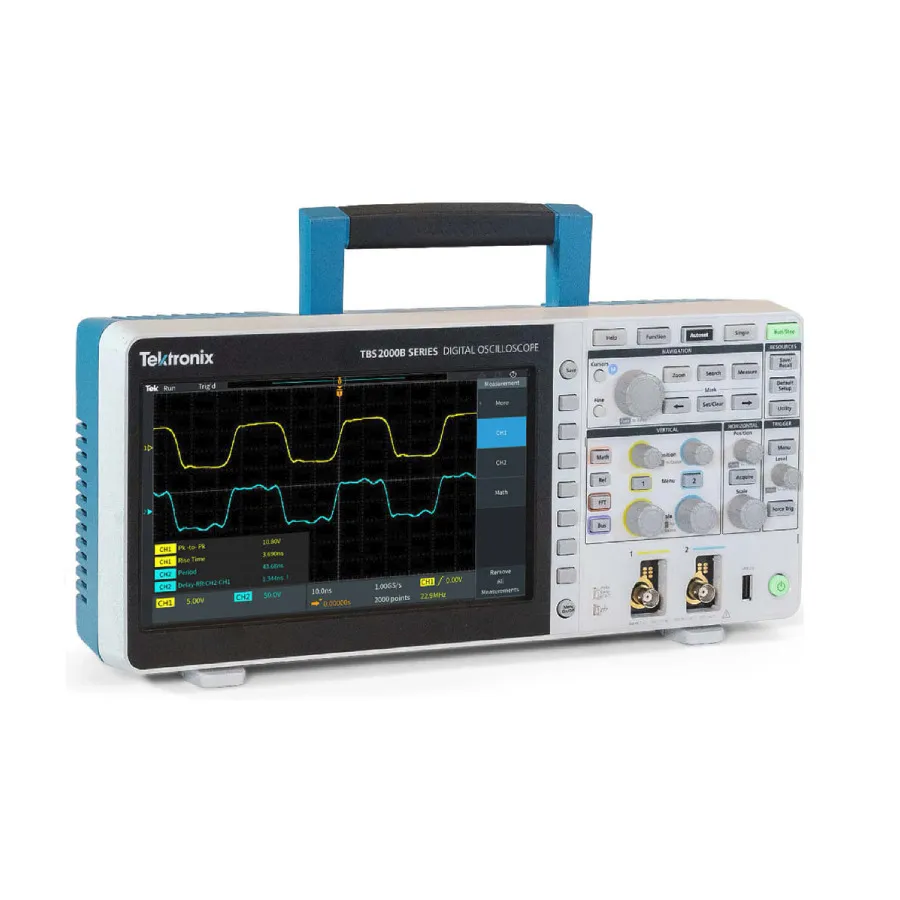

Tektronix TBS2202B Digital Oscilloscope

Overview

The Tektronix TBS2202B is a 2-channel digital oscilloscope with 200 MHz bandwidth and 2 GS/s sampling rate, designed for engineers and technicians who need to debug and validate designs quickly. With a 5 million point record length and 9-inch WVGA color display featuring 15 horizontal grids, it captures and displays significantly more signal detail than standard instruments, enabling confident signal analysis with 32 automated measurements and FFT functionality.

Key Features

• 2 channels with 200 MHz bandwidth and 2 GS/s sampling rate
• 5 million point record length on all channels
• 9-inch WVGA color display with 15 horizontal grids for 50% more signal visibility
• TekVPI probe interface supports active, differential, and current probes with automatic scaling and units
• 32 automated measurements and FFT function for quick waveform analysis
• Search and Mark features for easy identification of waveform events
• USB 2.0 (host and device ports) and 10/100BASE-T Ethernet for data storage and remote control
• Optional Wi-Fi communications with TEK-USB-WIFI adapter
• HelpEverywhere on-screen tips and built-in Scope Intro handbook for learning
• 5-year warranty

Applications

• Design validation and debugging in electronics development
• Signal analysis in automotive and consumer electronics testing
• Educational laboratory use with integrated Courseware function and 100+ sample lab exercises
• Remote monitoring and control via LAN or Wi-Fi

Included Accessories

• TPP0200 200 MHz, 10x passive probe (one per analog channel)
• Power cord and calibration certificate
