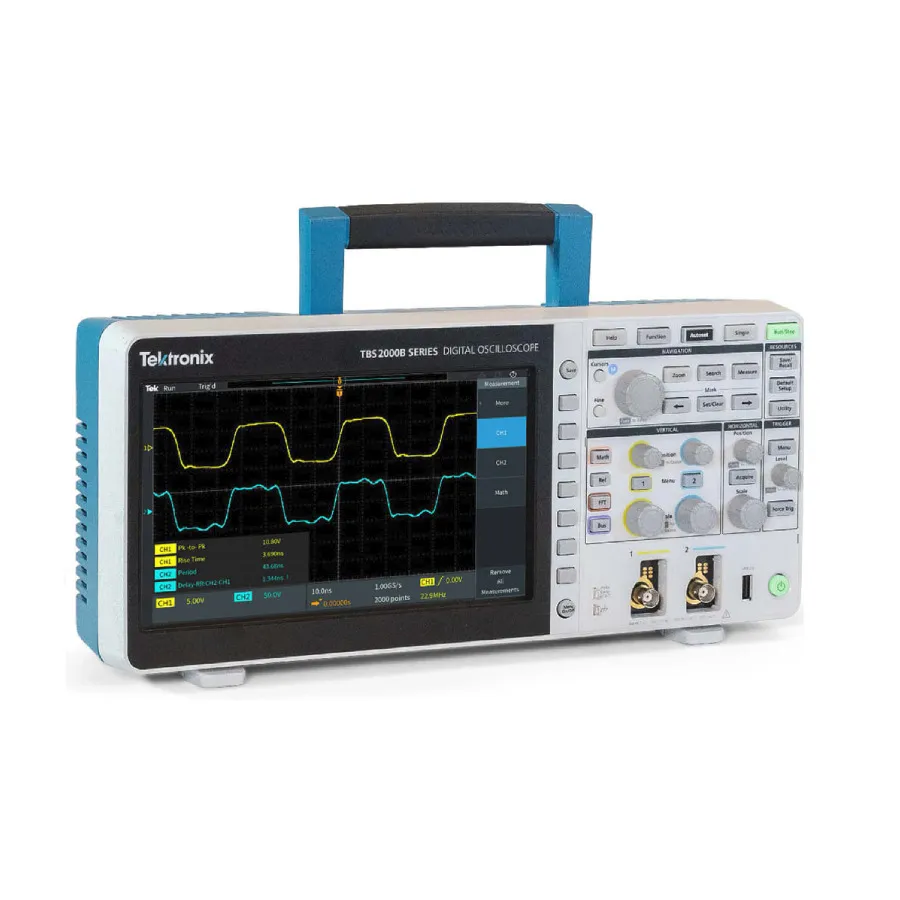

Tektronix TBS2102B 2-Channel Digital Oscilloscope
Request a quote
Tektronix TBS2102B is a 2-channel 100MHz oscilloscope with 2GS/s sampling, 5M record length, and 32 automated measurements for signal analysis and debugging.
Product details
| Model | TBS2102B |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix TBS2102B is a 2-channel digital oscilloscope with 100MHz bandwidth and 2GS/s sampling rate, designed for engineers and technicians who need accurate signal capture and analysis. The TBS2000B series combines a large 9-inch WVGA display with 5 million-point record length to capture and display more signal details, enabling faster debugging and validation of designs. With its intuitive interface and comprehensive measurement capabilities, the TBS2102B is ideal for education and professional laboratory work.
Key Features
- 100MHz bandwidth with 2 analog channels
- 2GS/s maximum sampling rate on all channels
- 5 million-point record length for detailed waveform capture
- 9-inch WVGA color display with 15 horizontal divisions shows 50% more signal detail
- TekVPI probe interface with automatic scaling and units for active, differential, and current probes
- 32 automated measurements and FFT function for comprehensive signal analysis
- Search and Mark features for easy event identification in waveforms
- HelpEverywhere provides on-screen tips and guidance for new users
- USB 2.0 host and device ports for data storage and PC connectivity
- 10/100BASE-T Ethernet port for remote control and optional Wi-Fi via TEK-USB-WIFI adapter
- Built-in Scope Intro handbook and Courseware support for education
- 5-year manufacturer warranty
Applications
- Electronic design debugging and validation
- Signal integrity analysis and measurement
- Digital logic and mixed-signal circuit testing
- Educational laboratory work and student experiments
- General-purpose electronics troubleshooting
Included Accessories
- TPP0100 100MHz 10x passive probe (one per channel)
- Power cord
- Compliance and Safety Instructions
- Calibration certificate with traceability documentation
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 2 |
| Digital Channels | None |
| Sampling Rate | 1 GS/s |
| Memory | 5 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 9 TFT LCD WVGA Color |
| Series | TBS2000B Series |
| Accessories | P5200A, P5202A, P5205A, P5210A, TDP0500, THDP0100, THDP0200 |
| Attenuation | 1X |
| Certificate of Calibration | Yes |
| Depth | 4.07" |
| Display | TFT |
| Interface | USB Host, USB |
| Operating Temperature Range | 32-122°F |
| Warranty | 5 Years |
