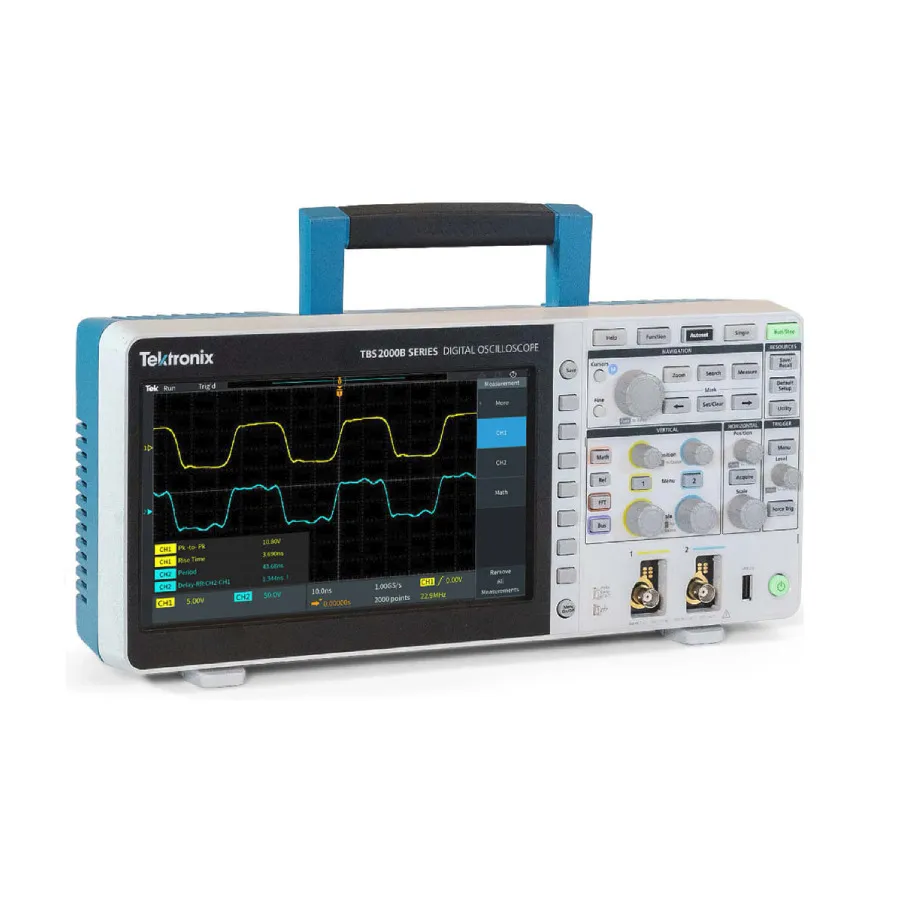

Tektronix TBS2072B Digital Oscilloscope
Request a quote
Tektronix TBS2072B is a 70 MHz digital oscilloscope with 9-inch WVGA display, 2 GS/s sampling, 5M record length, TekVPI probe interface, and integrated courseware for education.
Product details
| Model | TBS2072B |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix TBS2072B is a 70 MHz digital oscilloscope from the TBS2000B Series, designed for educational institutions, embedded design engineers, and advanced signal analysis. It features a 9-inch WVGA color display with 15 horizontal divisions for enhanced signal visibility, up to 2 GS/s sampling rate, and 5M point record length. The TekVPI probe interface provides support for active voltage probes, differential probes, and current probes with automatic scaling, while optional wireless communications enable remote operation.
Key Features
- 9-inch WVGA color display with 15 horizontal grids (50% more signal than standard)
- 70 MHz bandwidth with 2 GS/s sample rate on all channels
- 5 million point record length for extended waveform capture
- TekVPI probe interface with automatic scaling and units for active, differential, and current probes
- 32 automated measurements with on-waveform cursor readouts
- Dual window FFT for simultaneous time and frequency domain analysis
- Search and Mark features for event identification in waveforms
- Integrated Zoom function for detailed signal examination
- USB 2.0 host and device ports; 10/100BASE-T Ethernet; optional Wi-Fi connectivity
- Improved front-end design with enhanced noise characteristics and higher effective resolution
- HelpEverywhere system with on-screen tips and integrated Scope Intro handbook
Applications
- Educational institutions and classroom instruction with integrated courseware
- Embedded design and development with diverse probe support
- Electronics troubleshooting and signal analysis
- Laboratory experiments with automated measurements and data logging
Included Accessories
- TPP0100 100 MHz, 10x passive probe (one per analog channel)
- Calibration certificate with traceability to National Metrology Institute(s)
- Power cord and compliance/safety instructions
Specifications
| Bandwidth | 70 MHz |
| Analog Channels | 2 |
| Digital Channels | None |
| Sampling Rate | 1 GS/s |
| Memory | 5 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 9 TFT LCD WVGA Color |
| Series | TBS2000B Series |
| Accessories | P5200A, P5202A, P5205A, P5210A, TDP0500, THDP0100, THDP0200 |
| Attenuation | 1X |
| Certificate of Calibration | Yes |
| Depth | 4.07" |
| Display | TFT |
| Interface | USB Host, USB |
| Operating Temperature Range | 32-122°F |
| Warranty | 5 Years |
