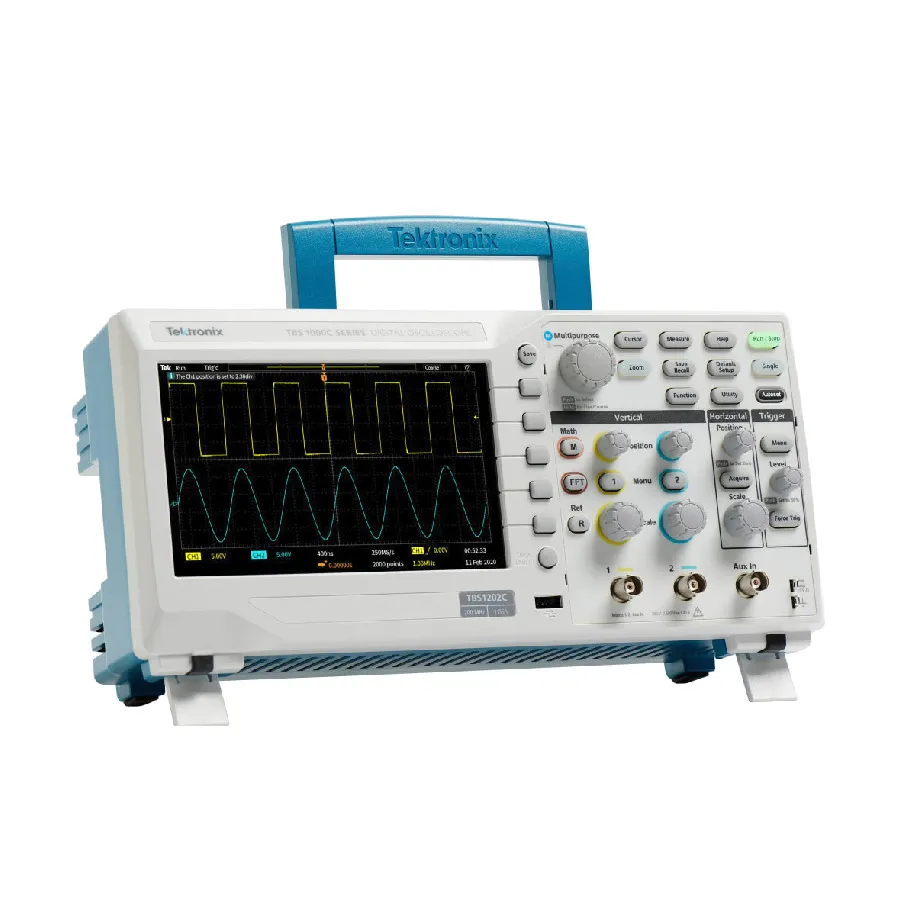

Tektronix TBS1202C Digital Oscilloscope
Request a quote
Tektronix TBS1202C is a 200 MHz 2-channel digital oscilloscope with 7-inch WVGA display, 1 GS/s sampling, 20k record length, and integrated courseware for education.
Product details
| Model | TBS1202C |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix TBS1202C is a 200 MHz digital storage oscilloscope from the TBS1000C Series, designed to meet the needs of educational institutions, embedded design engineers, and the maker community. It features a 7-inch WVGA color display, 1 GS/s sample rate, and a compact design with a five-year warranty. The instrument includes an innovative courseware system that integrates lab exercises with step-by-step instructions and the HelpEverywhere system that provides helpful tips throughout the user interface.
Key Features
- 7-inch WVGA color display with 15 horizontal divisions (50% more signal visibility)
- 200 MHz bandwidth with 1 GS/s sample rate on all channels
- 20k point record length for extended capture
- 32 automated measurements with informative tips
- Dual window FFT with simultaneous time and frequency domain views
- Advanced triggers: edge, pulse width, runt, and line triggers
- Pan and Zoom capability for detailed signal examination
- Fanless design for low noise operation
- Trigger frequency counter
Applications
- Education and classroom instruction with integrated courseware
- Embedded design and development
- Maker and hobbyist electronics projects
- Signal analysis and troubleshooting
Specifications
| Bandwidth | 200 MHz |
| Analog Channels | 2 |
| Digital Channels | None |
| Sampling Rate | 1 GS/s |
| Memory | 20 kpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 7 TFT WVGA Color |
| Series | TBS1000C Series |
| Accessories | P5200A, P5205A |
| Attenuation | 1X |
| Certificate of Calibration | Yes |
| Depth | 4.2" |
| Display | TFT |
| Interface | USB Host, USB |
| Operating Temperature Range | 0-50°C |
| Warranty | 5 Years |
