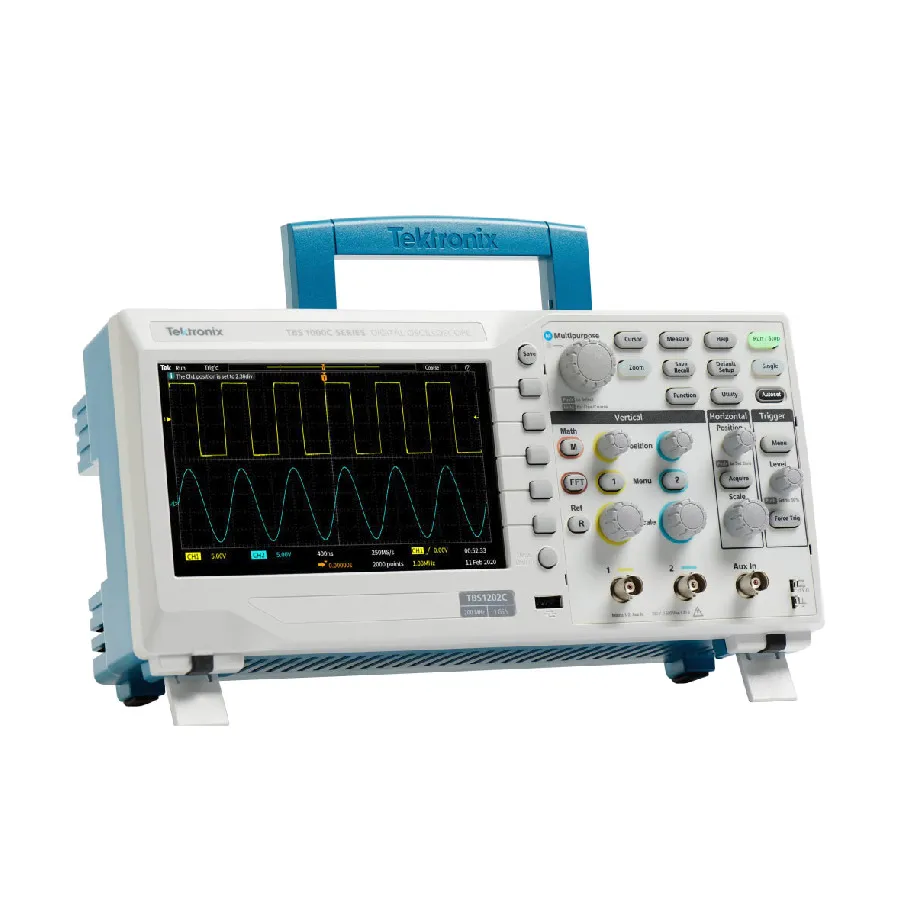

Tektronix TBS1072C Digital Oscilloscope
Request a quote
Tektronix TBS1072C 70 MHz digital oscilloscope with 1 GS/s sample rate, 20k-point record length, 8-bit resolution, and 7-inch WVGA color display.
Product details
| Model | TBS1072C |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix TBS1072C is a 70 MHz, 2-channel digital storage oscilloscope from the TBS1000C Series, designed for educational institutions, embedded design engineers, and maker communities. It delivers affordable performance in a compact design with a 7-inch WVGA color display, 1 GS/s sample rate, and innovative courseware system featuring integrated lab exercises with step-by-step instruction and on-screen tips through the HelpEverywhere system.
Key Features
- 70 MHz bandwidth with 1 GS/s sample rate across all channels
- 2-channel design with 20k-point record length
- 7-inch WVGA color display with 15 horizontal divisions (50% more signal visibility)
- Advanced trigger types: pulse, runt, and line triggers
- 32 automated measurements and dual window FFT
- Trigger frequency counter and Pan/Zoom capability
- Fanless design for low-noise operation
- Multi-language support with 10-language user interface
- Five-year warranty
Connectivity
- USB 2.0 host port (front panel) for quick data storage
- USB 2.0 device port (rear panel) for PC remote control
- Passive BNC probe interfaces
Applications
- Educational laboratory and classroom training
- Embedded systems design and debugging
- General-purpose signal measurement and analysis
- Electronics prototyping and troubleshooting
Specifications
| Bandwidth | 70 MHz |
| Analog Channels | 2 |
| Digital Channels | None |
| Sampling Rate | 1 GS/s |
| Memory | 20 kpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 7 TFT WVGA Color |
| Series | TBS1000C Series |
| Accessories | P5200A, P5205A |
| Attenuation | 1X |
| Certificate of Calibration | Yes |
| Depth | 4.2" |
| Display | TFT |
| Interface | USB Host, USB |
| Operating Temperature Range | 0-50°C |
| Warranty | 5 Years |
