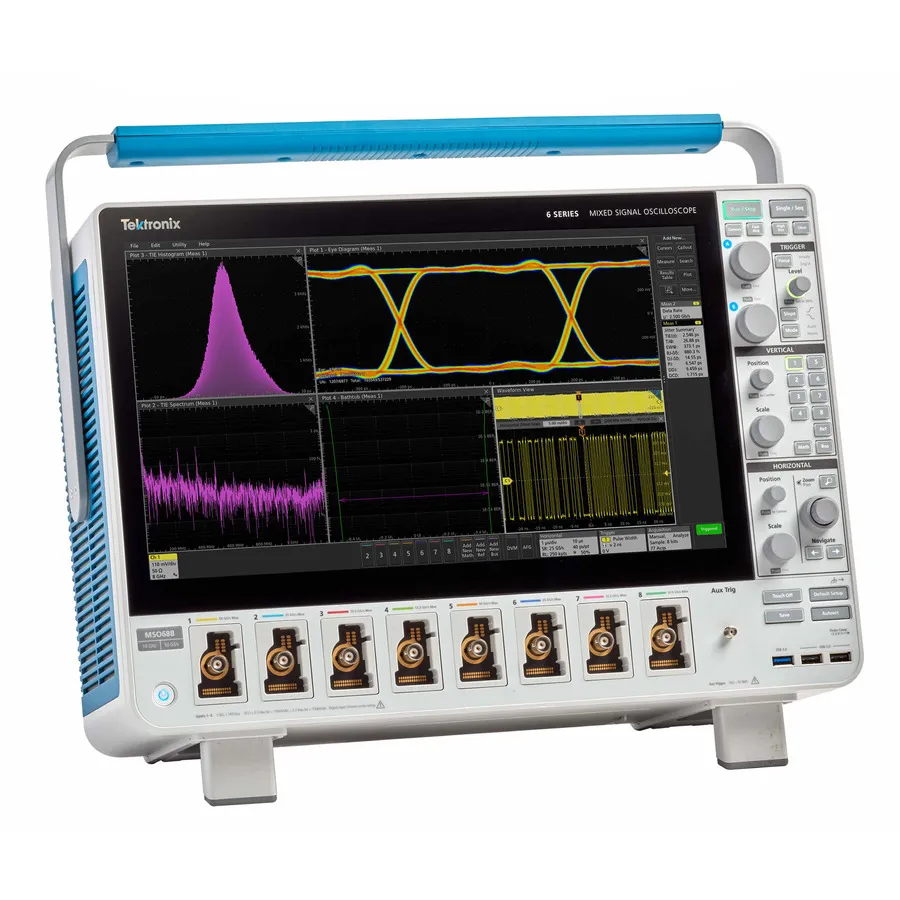

Tektronix MSO68B/6-BW-8000 Mixed Signal Oscilloscope
Tektronix MSO68B/6-BW-8000 is an 8-channel mixed signal oscilloscope with 8 GHz bandwidth, 12.5 GS/s sample rate, and up to 64 optional digital channels.
Product details
| Model | MSO68B/6-BW-8000 |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix MSO68B/6-BW-8000 is an 8-channel mixed signal oscilloscope purpose-built for analyzing and debugging embedded systems with GHz-speed signals. With an 8 GHz bandwidth and 12.5 GS/s real-time sample rate, it delivers exceptional signal fidelity for complex measurement tasks. Each of the 8 FlexChannels can be independently configured as a single analog input, eight digital logic inputs with optional TLP058 probe, or simultaneous analog and spectrum views with independent acquisition controls.
The 15.6-inch capacitive touchscreen with 1,920×1,080 HD resolution provides intuitive touch-based navigation. With 12-bit ADC vertical resolution (expandable to 16-bit in High Res mode) and advanced hardware FIR filtering, the scope captures small signals with minimal noise. FastFrame segmented memory achieves waveform capture rates exceeding 500,000 per second, while optional record lengths up to 1 Gpoint support detailed analysis of lengthy signal sequences.
Key Features
- 8 FlexChannel analog inputs with mixed-domain capability
- Up to 64 optional digital channels with equivalent sample rates and record lengths
- 8 GHz analog bandwidth, 12.5 GS/s real-time sample rate (>4 channels)
- 12-bit ADC with up to 16-bit resolution in High Res mode
- Record length: 62.5 Mpoints standard, optional 125 Mpoints to 1 Gpoint
- Visual Trigger for automated signal discovery
- Complete trigger set: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Video
- 36 automated measurements with statistical analysis
- Spectrum View with independent frequency-domain controls
- Advanced math: waveform arithmetic, FFT, advanced equation editor
- Connectivity: 7 USB Host, 1 USB 3.0 Device, Gigabit LAN, Display Port, DVI-I, VGA
- e*Scope remote control via web browser
Applications
- Embedded systems debugging with GHz-speed signals
- Power electronics and power supply design
- Automotive electronics testing
- Power Integrity analysis
- Serial protocol analysis (optional)
- Advanced jitter and eye diagram measurements (optional)
Included Accessories
- TPP1000 1 GHz passive probes (one per FlexChannel)
- Front cover with integrated accessory pouch
- Power cord and calibration certificate
Specifications
| Bandwidth | 8 GHz |
| Analog Channels | 8 |
| Digital Channels | 64 |
| Sampling Rate | 12.5 GS/s |
| Memory | 62.5 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 TFT Capacitive Color Touch |
| Series | 6 Series B MSO |
