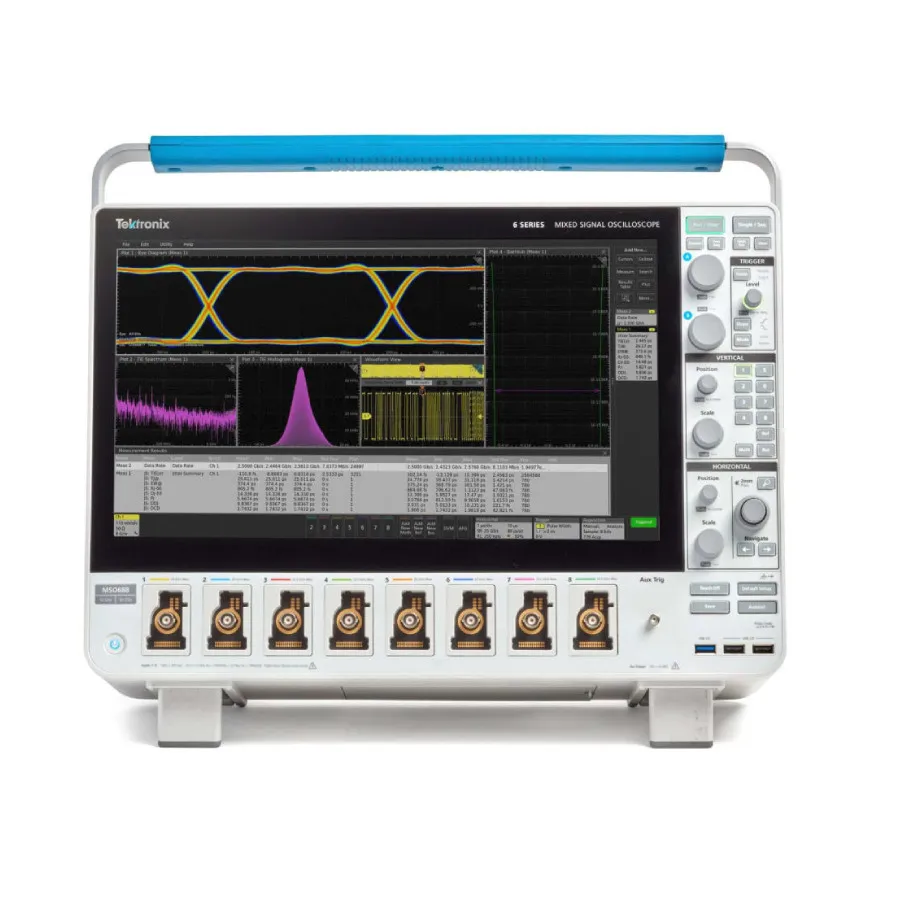

Tektronix MSO68B/6-BW-1000 Mixed Signal Oscilloscope

Overview

The Tektronix MSO68B Mixed Signal Oscilloscope delivers 1 GHz bandwidth with 8 FlexChannel inputs, providing exceptional signal fidelity for analyzing and debugging embedded systems and digital applications. FlexChannel technology enables each input to function as a single analog channel or eight digital logic inputs (with optional TLP058 logic probe), offering unprecedented flexibility for multi-signal measurement and analysis without requiring physical reconfiguration.

Key Features

• FlexChannel inputs: 8 analog or up to 64 digital channels (with optional probes)
• Bandwidth: 1 GHz
• Display: 15.6" high-definition (1920 x 1080) capacitive touchscreen with gesture support
• Sampling: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (>4 channels)
• Vertical resolution: 12-bit ADC; up to 16-bit in High Res mode
• Record length: 62.5 Mpoints standard; up to 1 Gpoint optional
• Waveform capture rate: >500,000 waveforms/s
• Advanced triggers: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Visual Trigger, Video
• Analysis tools: Cursors, 36 measurements, Spectrum View, FastFrame, FFT, jitter analysis
• Connectivity: USB 3.0, Gigabit Ethernet, Display Port; e*Scope remote control

Applications

• Embedded systems debugging with multi-signal observation
• Digital logic circuit analysis and verification
• Power supply design and characterization
• Automotive and industrial electronics testing
• Data acquisition and signal monitoring
• Protocol analysis and communication debugging
• Educational applications and laboratory instrumentation

Included Accessories

• One TPP1000 passive probe per FlexChannel
• Front cover with integrated accessory pouch
• Power cord and mouse
• Calibration certificate
