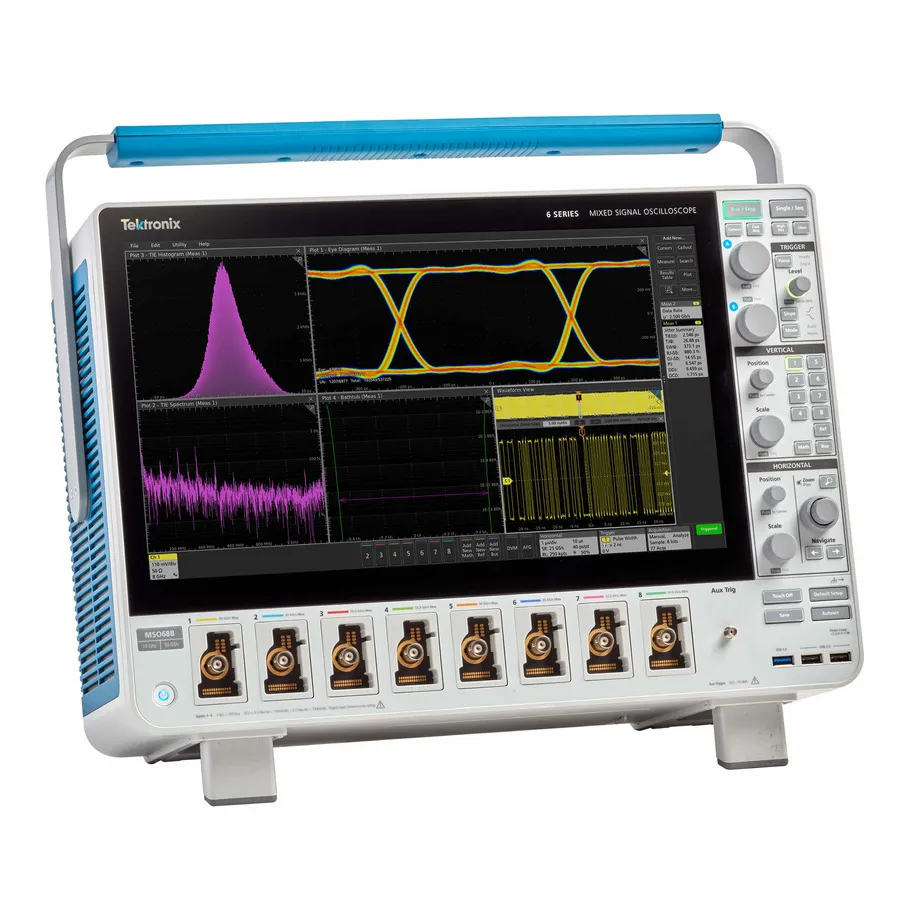

Tektronix MSO68B-TAA 6-BW-8000 Mixed Signal Oscilloscope

Overview

The Tektronix MSO68B Mixed Signal Oscilloscope delivers 8 GHz bandwidth with 8 FlexChannel inputs, providing industry-leading signal fidelity for analyzing and debugging modern high-speed embedded systems. FlexChannel technology enables each input to function as a single analog channel or eight digital logic inputs (with optional TLP058 logic probe), offering unprecedented flexibility for multi-signal measurement and analysis.

Key Features

• FlexChannel inputs: 8 analog or up to 64 digital channels (with optional probes)
• Bandwidth: 8 GHz
• Display: 15.6" high-definition (1920 x 1080) capacitive touchscreen with gesture support
• Sampling: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (>4 channels)
• Vertical resolution: 12-bit ADC; up to 16-bit in High Res mode
• Record length: 62.5 Mpoints standard; up to 1 Gpoint optional
• Waveform capture rate: >500,000 waveforms/s
• Advanced triggers: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Visual Trigger, Video
• Analysis tools: Cursors, 36 measurements, Spectrum View, FastFrame, FFT, jitter analysis
• Connectivity: USB 3.0, Gigabit Ethernet, Display Port; e*Scope remote control

Applications

• Embedded systems debugging with multi-signal observation
• High-speed digital interface analysis and protocol debugging
• Power electronics and motor drive characterization
• Automotive electronics and CAN/LIN protocol analysis
• Power supply design and power integrity verification
• RF signal analysis and measurement
• Electromagnetic interference (EMI) troubleshooting

Included Accessories

• One TPP1000 passive probe per FlexChannel
• Front cover with integrated accessory pouch
• Power cord and mouse
• Calibration certificate
