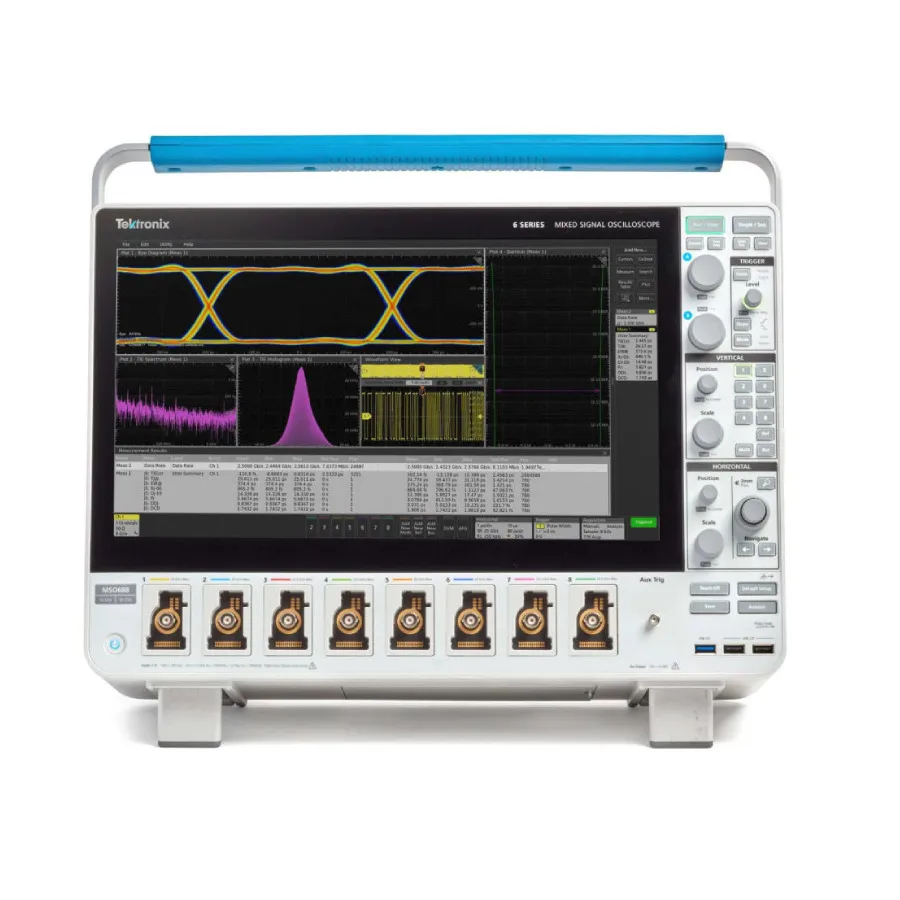

Tektronix MSO68B-TAA 6-BW-4000 Mixed Signal Oscilloscope

Overview

The Tektronix 6 Series B MSO is a TAA-compliant mixed signal oscilloscope offering 4 GHz analog bandwidth for high-speed signal analysis in government and regulated procurement environments. The instrument delivers exceptional signal fidelity with its 12-bit ADC architecture and flexible multi-channel design. The 8 FlexChannel inputs provide maximum configurability, enabling each channel to function as a single analog signal or eight digital logic inputs with the optional TLP058 logic probe, eliminating traditional tradeoffs in digital vs. analog channel allocation.

Key Features

• 8 FlexChannel analog inputs with flexible analog and digital configuration
• 4 GHz analog bandwidth with 12-bit ADC (16-bit in High Res mode)
• Real-time sample rate: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (8 channels)
• Record length: 62.5 Mpoints standard, expandable to 1 Gpoint
• 15.6-inch High Definition capacitive touchscreen with pinch/swipe/zoom interaction
• Waveform capture rate exceeding 500,000 waveforms per second
• 36 automated measurements and cursor tools
• Spectrum View for simultaneous frequency and time-domain analysis
• FastFrame with trigger rate up to 5,000,000 waveforms per second
• Visual Trigger for automatic pattern detection across multiple acquisitions

Applications

• High-speed embedded systems debugging
• Serial interface compliance and protocol analysis
• Power electronics and drive system characterization
• Automotive system testing and validation
• Signal integrity and power integrity measurements
• Jitter analysis and clock distortion characterization

Included Accessories

• TPP1000 1 GHz probes (one per FlexChannel)
• Front cover with integrated accessory pouch
• Power cord
• Calibration certificate
• 1-year warranty on instrument and included probes
