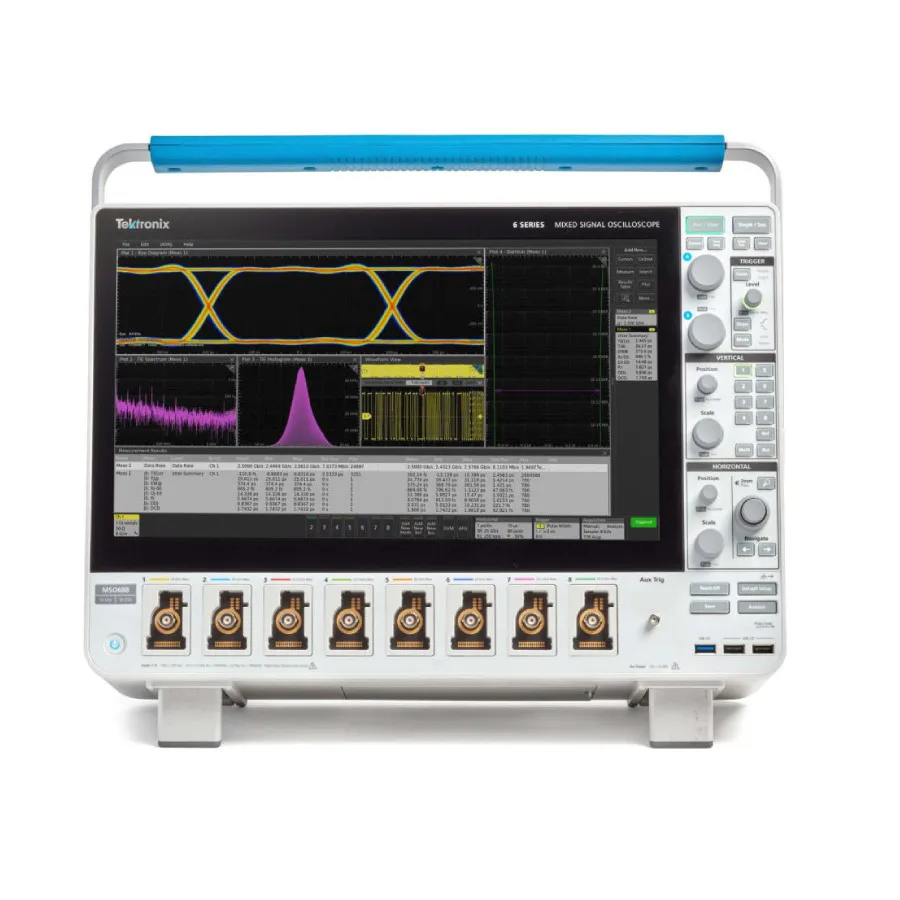

Tektronix MSO68B-TAA 6-BW-2500 Mixed Signal Oscilloscope

Overview

The Tektronix 6 Series B MSO is a TAA-compliant mixed signal oscilloscope featuring 2.5 GHz analog bandwidth designed for government and regulated buyers. It combines low-noise signal acquisition with flexible multi-channel analysis for debugging modern embedded systems, power electronics, and automotive applications. The instrument's 8 FlexChannel architecture allows each input to serve as either a single analog channel or eight digital logic inputs with an optional TLP058 logic probe, providing comprehensive system visibility for complex troubleshooting tasks.

Key Features

• 8 FlexChannel analog inputs supporting both analog and digital configurations
• 2.5 GHz analog bandwidth with 12-bit ADC (16-bit in High Res mode)
• Real-time sample rate: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (8 channels)
• Record length: 62.5 Mpoints standard, expandable to 1 Gpoint
• 15.6-inch High Definition capacitive touchscreen with intuitive touch interface
• Waveform capture rate exceeding 500,000 waveforms per second
• 36 automated measurement functions
• Spectrum View with independent controls for frequency and time domains
• FastFrame segmented memory acquisition with maximum trigger rate of 5,000,000 waveforms per second
• Advanced trigger types including Visual Trigger for pattern-based detection

Applications

• Embedded systems design and verification
• Three-phase power electronics and motor drive analysis
• Automotive electronics debugging and measurement
• Power supply design and characterization
• Power integrity and signal integrity analysis
• Jitter measurement and clock analysis

Included Accessories

• TPP1000 1 GHz probes (one per FlexChannel)
• Front cover with integrated accessory pouch
• Power cord
• Calibration certificate
• 1-year warranty on instrument and included probes
