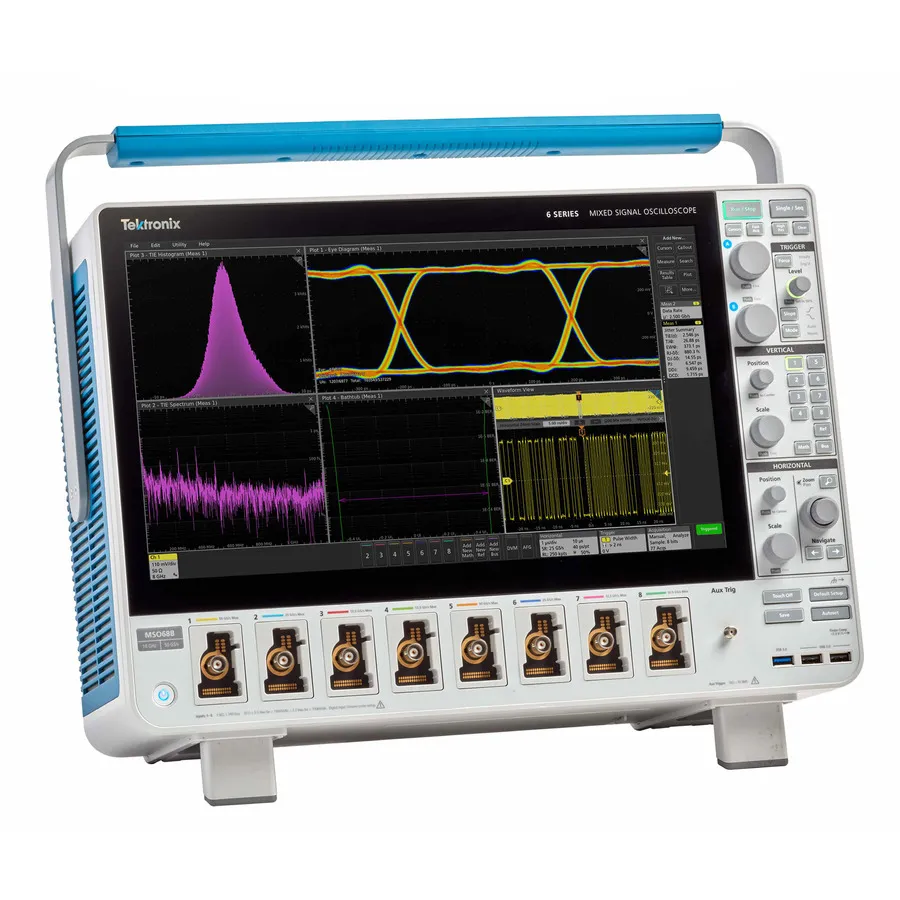

Tektronix MSO68B-TAA 6-BW-10000 Mixed Signal Oscilloscope

Overview

The Tektronix 6 Series B MSO is a TAA-compliant mixed signal oscilloscope engineered for high-speed signal analysis with up to 10 GHz analog bandwidth. This instrument is designed for government and regulated procurement environments requiring Trade Agreements Act compliance while maintaining industry-leading signal fidelity. The 8 FlexChannel architecture provides maximum flexibility, allowing each input to function as a single analog channel or eight digital logic inputs, with an optional TLP058 logic probe enabling comprehensive embedded system debugging without performance compromises.

Key Features

• 8 FlexChannel analog inputs with simultaneous waveform and spectral views
• 10 GHz analog bandwidth with 12-bit ADC (16-bit in High Res mode)
• Real-time sample rate: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (8 channels)
• Record length: 62.5 Mpoints standard, expandable to 1 Gpoint
• 15.6-inch High Definition capacitive touchscreen with pinch-zoom-swipe interaction
• Waveform capture rate exceeding 500,000 waveforms per second
• 36 automated measurement functions and cursors
• Spectrum View with independent frequency and time-domain acquisition controls
• FastFrame segmented memory with trigger rate up to 5,000,000 waveforms per second
• Visual Trigger for geometric pattern matching across acquisitions

Applications

• High-speed serial debugging and protocol analysis
• RF and vector signal analysis with SignalVu-PC software integration
• Jitter decomposition and clock recovery analysis
• 5G NR and advanced modulation analysis
• High-speed digital interface compliance testing
• Electromagnetic interference (EMI) and signal integrity characterization

Included Accessories

• TPP1000 1 GHz probes (one per FlexChannel)
• Front cover with integrated accessory pouch
• Power cord
• Calibration certificate
• 1-year warranty on instrument and included probes
