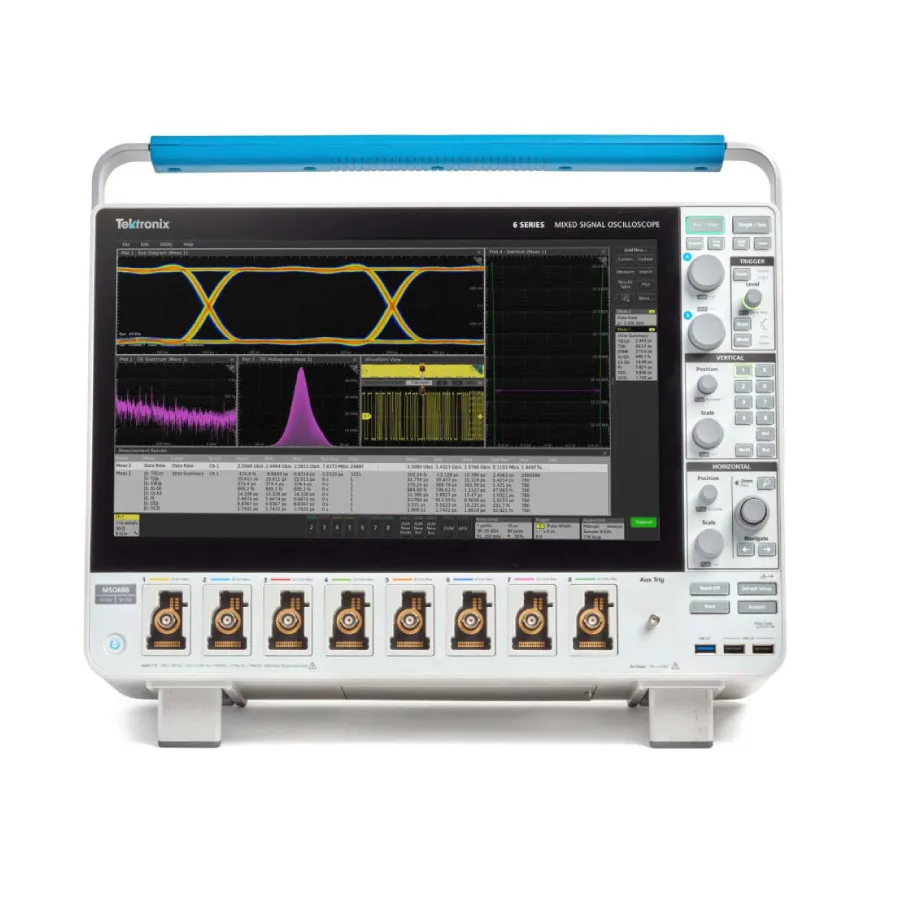

Tektronix MSO68B-TAA 6-BW-1000 Mixed Signal Oscilloscope

Overview

The Tektronix 6 Series B MSO is a TAA-compliant mixed signal oscilloscope designed for government and regulated buyers requiring Trade Agreements Act compliance. It delivers high bandwidth, low-noise signal fidelity, and flexible multi-channel analysis for debugging modern high-speed embedded systems. The instrument features 8 FlexChannel inputs, each capable of displaying a single analog signal or eight digital logic inputs with an optional TLP058 logic probe, enabling comprehensive system-level analysis with minimal tradeoffs.

Key Features

• 8 FlexChannel analog inputs with flexible signal routing
• 1 GHz analog bandwidth with 12-bit ADC (16-bit in High Res mode)
• Real-time sample rate: 50 GS/s (2 channels), 25 GS/s (4 channels), 12.5 GS/s (8 channels)
• Record length: 62.5 Mpoints standard, expandable to 1 Gpoint
• 15.6-inch High Definition capacitive touchscreen (1920 x 1080)
• Waveform capture rate exceeding 500,000 waveforms per second
• 36 automated measurement functions
• Spectrum View for independent frequency and time-domain analysis
• FastFrame segmented memory with up to 5,000,000 triggers per second
• Multiple trigger types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, and Visual Trigger

Applications

• Embedded systems debugging with GHz clock and bus analysis
• Jitter analysis and clock characterization
• High-speed serial standards compliance testing (Ethernet, MIPI D-PHY, Automotive Ethernet)
• Power electronics and 3-phase motor drive analysis
• Electromagnetic interference (EMI) troubleshooting
• Signal integrity and power integrity measurements

Included Accessories

• TPP1000 6 GHz passive probes (one per channel)
• Front cover with accessory pouch
• Mouse and power cord
• Certificate of Traceability
• 1-year warranty on instrument and probes
