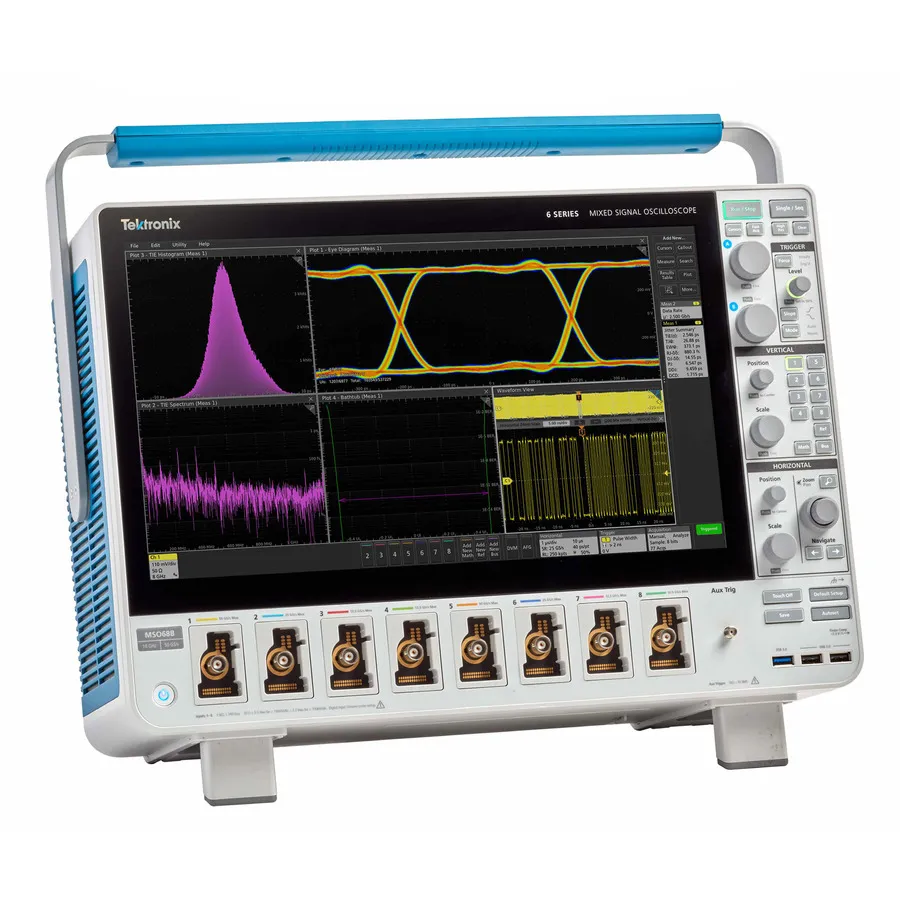

Tektronix MSO66B/6-BW-6000 Mixed Signal Oscilloscope
Tektronix MSO66B/6-BW-6000 offers 6 GHz bandwidth with 6 analog/48 digital channels, 12.5 GS/s sample rate, and comprehensive waveform analysis and triggering.
Product details
| Model | MSO66B/6-BW-6000 |
| Manufacturer | Tektronix |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Tektronix MSO66B is a 6-channel mixed-signal oscilloscope combining analog and digital measurement capabilities in one integrated platform. With 6 GHz analog bandwidth and flexible FlexChannel inputs, it supports simultaneous capture of analog signals, digital logic (up to 48 channels optional), and spectral analysis. The 15.6-inch high-definition touchscreen and industry-leading low-noise performance make it well-suited for troubleshooting embedded systems, power electronics, and complex multi-signal designs.
The MSO66B delivers exceptional signal fidelity through its TEK061 front-end amplifier ASIC and 12-bit ADC (up to 16-bit in High Res mode). With sample rates to 50 GS/s on 2 channels and record lengths up to 1 Gpoint, it captures fast transients and extended events reliably.
Key Features
- 6 GHz analog bandwidth with 6 FlexChannel inputs
- Up to 48 optional digital logic channels with same sample rate and record length as analog
- 50 GS/s real-time sample rate (2 ch), 25 GS/s (4 ch), 12.5 GS/s (>4 ch)
- Record length from 62.5 Mpoints standard to 1 Gpoint optional
- Low-noise performance with TEK061 front-end amplifier
- 12-bit ADC with up to 16-bit High Res mode
- 15.6-inch HD touchscreen with capacitive touch (pinch, zoom, swipe, drag)
- 36 automated measurements with statistical analysis
- Advanced trigger types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video
- Spectrum View for frequency-domain analysis
- FastFrame segmented memory with >5,000,000 waveforms/second trigger rate
- Math functions: basic arithmetic, FFT, advanced equation editor
- Stacked Display Mode for multi-channel waveform viewing
- Wave Inspector navigation with force-feedback record scrolling
- Remote e*Scope control via web browser
- Connectivity: 7 USB Host, USB 3.0 Device, Gigabit Ethernet, DisplayPort, DVI-I, VGA
Applications
- Embedded systems debugging and validation
- Three-phase power electronics characterization
- Automotive electronics testing and troubleshooting
- Power supply and power integrity analysis
- Serial protocol analysis and decode
- Jitter and eye diagram analysis
- LVDS signal debugging
Included Accessories
- One TPP1000 1 GHz probe per FlexChannel (6 probes total)
- Front cover with integrated accessory pouch
- Power cord
- Calibration certificate
Specifications
| Bandwidth | 6 GHz |
| Analog Channels | 6 |
| Digital Channels | 48 |
| Sampling Rate | 25 GS/s |
| Memory | 62.5 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 TFT Capacitive Color Touch |
| Series | 6 Series B MSO |
